254 - Husqvarna Chainsaw (1992-10) Piston/Cylinder Parts Diagram

Chainsaw

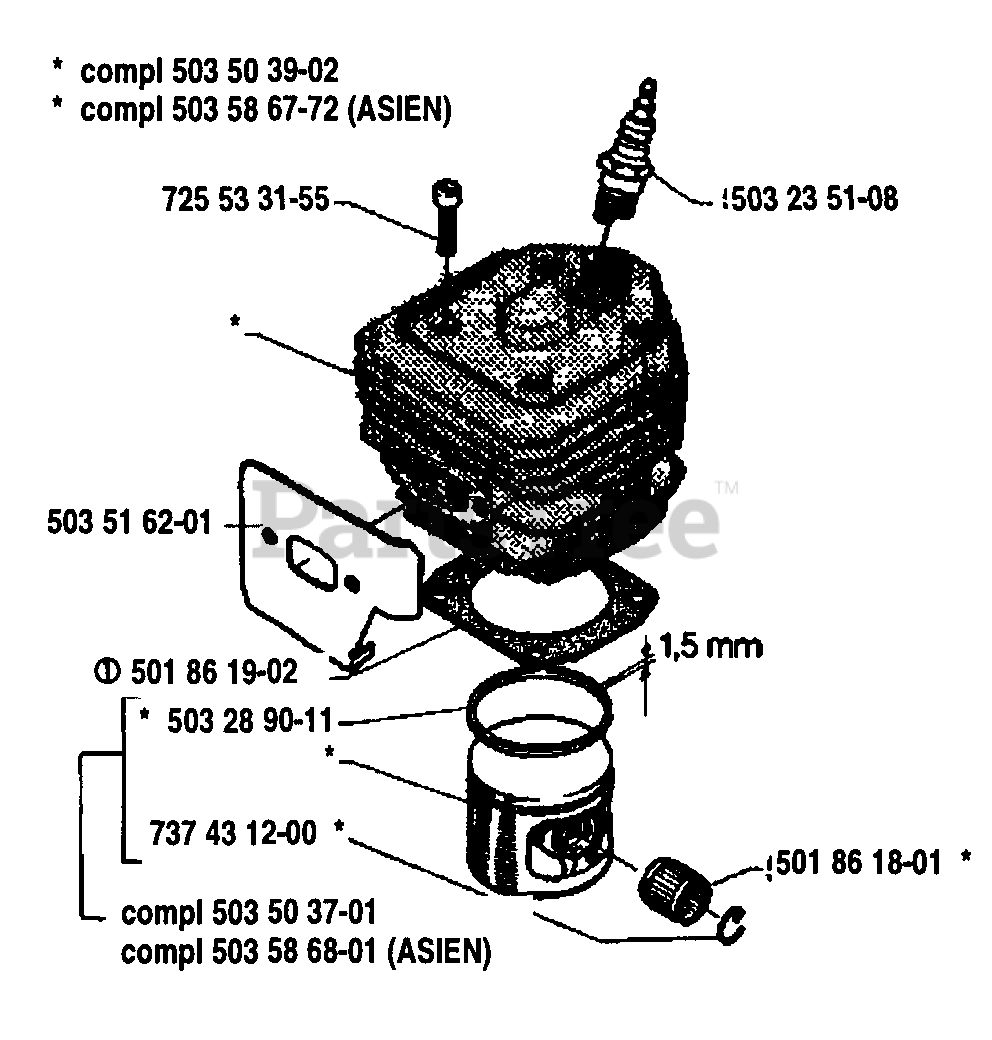

Piston/Cylinder Parts Diagram

  • Title
503503902

Husqvarna 503503902

CYLINDER CPL
(Superseded to 503503903)

$156.93

$

Usually ships in 3-10 days

0

503586772

Husqvarna 503586772

CYLINDER CPL
(Superseded to 503503903)

$156.93

$

Usually ships in 3-10 days

0

725533155

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

503235108

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

503516201

Husqvarna 503516201

OUTLET
(Superseded to 503748501)

$

$

Not available

501861902

Husqvarna 501861902

GASKET
(Superseded to 503704802)

$5.99

$

Usually ships in 3-10 days

0

503289011

Husqvarna 503289011

%PISTON RING
(Superseded to 544435001)

$31.99

$

In Stock, only 2 left!

0

737431200

Husqvarna 737431200

WRIST PIN CLIP

$7.49

$

In Stock, only 2 left!

0

503503701

Husqvarna 503503701

PISTON COMPLETE

$

$

Not available

503586801

Husqvarna 503586801

PISTON CPL

$

$

Not available

501861801

Husqvarna 501861801

SUPPORT BUSHING

$13.99

$

In Stock, Qty 6

0
