254-598-190 - White Outdoor Edger (1994) Edger Parts Diagram

Edger

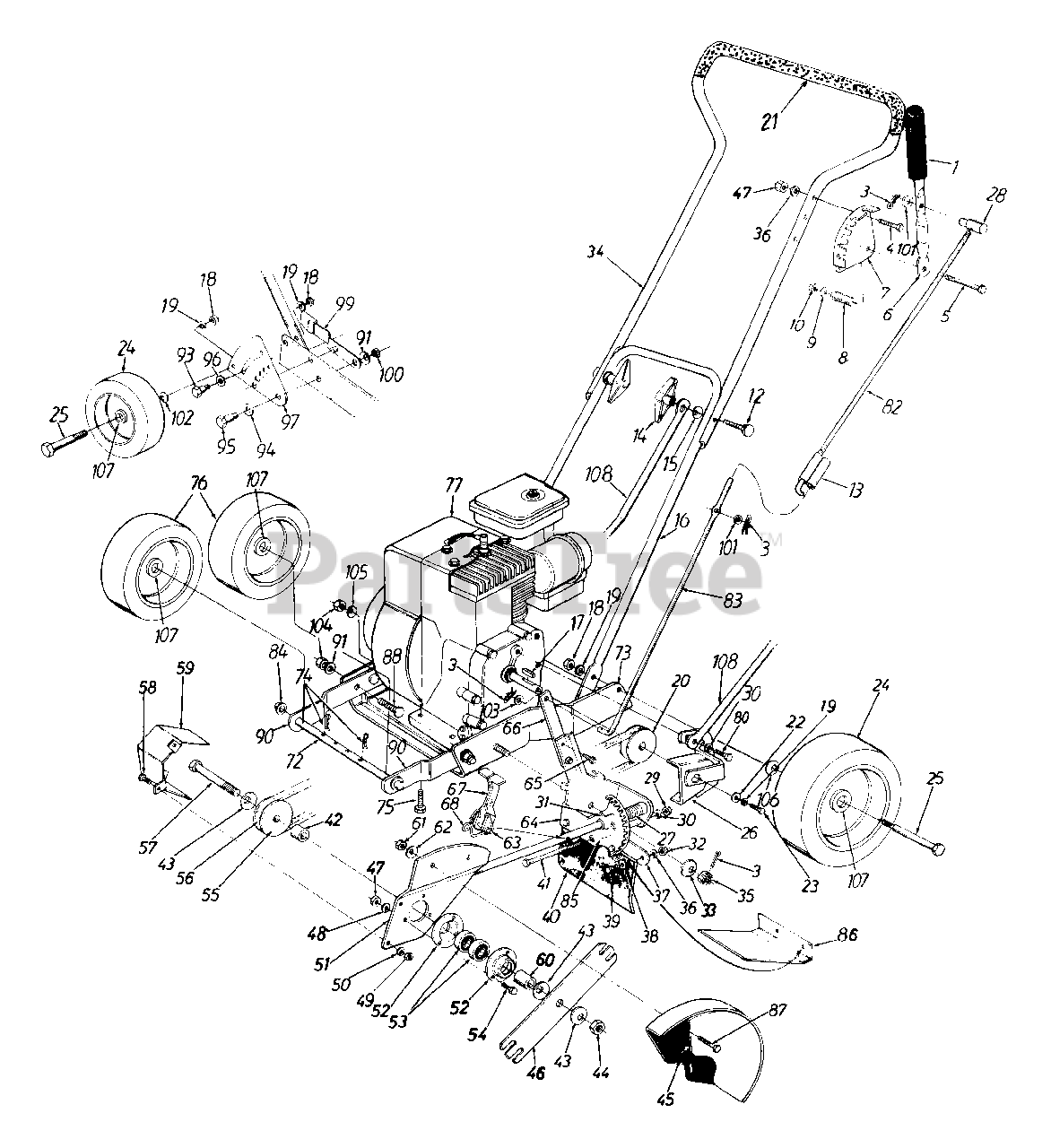

Edger Parts Diagram

  • Title

1

White Outdoor 720-0283

Foam Grip

$8.49

$

Usually ships in 3-6 days

0

?2

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

3

White Outdoor 714-0104

Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 2 left!

0

5

White Outdoor 710-0116

Hex Bolt 5/16-18 x 2" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

6

White Outdoor 749-0666

Engagement Handle
(Superseded to 749-0666-0637)

Variations

White Outdoor 749-0666-0637

Engagement Handle, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

7

White Outdoor 781-0081

Adjustment Bracket

Variations

White Outdoor 781-0081-0480

BRACKET-ADJ - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 781-0081-0483

BRACKET-ADJ - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0081-0498

BRACKET-ADJ - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0081-0637

BRACKET-ADJ - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0081-0638

BRACKET-ADJ - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0081-0662

BRACKET-ADJ - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0081-0691

BRACKET-ADJ - BLACK JACK (0691)

$

$

Not available

White Outdoor 781-0081-0692

BRACKET-ADJ - AGWAY BLUE (0692)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

8

White Outdoor 732-0369

Compression Spring 1.38" Lg.
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

9

White Outdoor 736-0264

Fl-Wash. .344" I.D.

$6.99

$

In Stock, only 1 left!

0

10

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

12

White Outdoor 710-1174

Curv. Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

13

White Outdoor 750-0963

Clutch Rod Lock
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

14

White Outdoor 720-0241

Wing Nut Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0451

Saddle Wash. .32" I.D. x .937"

$4.49

$

Usually ships in 3-6 days

0

16

White Outdoor 749-0937

Lower Handle
(Superseded to 749-0937-0637)

Variations

White Outdoor 749-0937-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 714-0122

Sq. Key 3/16" x .75" Lg.

$3.99

$

In Stock, Qty 15

0

18

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

19

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 756-0327A

Engine Pulley

$

$

Not available

21

White Outdoor 720-0280

Foam Grip

$

$

Not available

22

White Outdoor 736-0258

Fl-Wash. .385" I.D.

$4.49

$

In Stock, only 4 left!

0

23

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

24

White Outdoor 734-1268

Rear Wheel Ass'y.

$71.99

$

Usually ships in 3-6 days

0

25

White Outdoor 738-0108

Shoulder Bolt .498" Dia.
(Superseded to 938-0108)

$6.99

$

In Stock, Qty 6

0

26

White Outdoor 687-0100

Belt Guard Ass'y.

Variations

White Outdoor 687-0100-0637

No Longer Available GUARD-BELT PWD BLK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 687-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 687-0100-0665

No Longer Available GUARD-BELT YM GRN - YARDMAN GREEN (0665)

$

$

Not available

$

$

27

White Outdoor 732-0187

Compression Spring

$2.99

$

Usually ships in 3-6 days

0

28

White Outdoor 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

29

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

30

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 715-0143

Spring Pin Spir. 1/4" Dia.

$4.99

$

In Stock, Qty 15

0

32

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

33

White Outdoor 736-0112

Bell-Wash. .535" I.D.

$9.99

$

Usually ships in 3-6 days

0

34

White Outdoor 749-0936

Upper Loop Handle
(Superseded to 749-0936A)

$

$

Not available

35

White Outdoor 712-0114

Hex Slotted Nut 1/2-20 Thd.
(Superseded to 912-0114)

$

$

Not available

36

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

37

White Outdoor 781-0087

Flap Bracket

Variations

White Outdoor 781-0087-0637

BRACKET-FLAP - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 736-0342

Fl-Wash. .25" I.D.

$7.49

$

Usually ships in 3-6 days

0

39

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 731-0725

Flap

$

$

Not available

41

White Outdoor 710-0402

Hex Bolt 5/16-18 x 4.5" Lg.

$

$

Not available

42

White Outdoor 750-0229

Spacer 1.030" Lg.
(Superseded to 950-0229)

$

$

Not available

43

White Outdoor 736-0317

Bell-Washer. .63" I.D.

$7.99

$

In Stock, Qty 20+

0

44

White Outdoor 712-0413

Hex Jam L-Nut 5/8-18 Thd.

$6.49

$

In Stock, only 1 left!

0

45

White Outdoor 781-0076

Guard Ass'y.

Variations

White Outdoor 781-0076-0637

GUARD ASSEMBLY-POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0076-0483

GUARD ASSEMBLY-POWDER BLACK - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0076-0638

GUARD ASSEMBLY-POWDER BLACK - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0076-0650

GUARD ASSEMBLY-POWDER BLACK - RED METALLIC (0650)

$

$

Not available

White Outdoor 781-0076-0662

GUARD ASSEMBLY-POWDER BLACK - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0076-0665

GUARD ASSEMBLY-POWDER BLACK - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 781-0076-0667

GUARD ASSEMBLY-POWDER BLACK - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

46

White Outdoor 781-0080

Edger Blade
(Superseded to 781-0080-0637)

Variations

White Outdoor 781-0080-0637

Edger Blade, 5/8 Hl - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0

47

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

48

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

49

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

50

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

51

White Outdoor 781-0078

Spindle Plate Ass'y.

Variations

White Outdoor 781-0078-0637

PLATE-ASSY.SPINDLE - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 15319B

Bearing Housing

$10.99

$

In Stock, Qty 5

0

53

White Outdoor 741-0155

Ball Bearing .62" I.D.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 18

0

54

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 756-0449

3/8" "V"-Pulley
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

56

White Outdoor 754-0142

"V"-Belt
(Superseded to 954-0142)

$30.99

$

In Stock, Qty 12

0

57

White Outdoor 710-0929

Hex Bolt 5/8-18 x 4.5" Lg.
(Superseded to 710-3151A)

$18.99

$

Usually ships in 3-6 days

0

58

White Outdoor 710-0258

Hex Bolt 1/4-20 x .625" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 781-0086

Belt Guard
(Superseded to 781-0427-0637)

Variations

White Outdoor 781-0086-0637

Belt Guard, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

60

White Outdoor 750-0118

Sleeve .90" Lg.
(Superseded to 950-0118)

$

$

Not available

61

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

62

White Outdoor 736-0242

Bell-Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 715-0121

Spring Pin Spir. 1/4" Dia.

$6.99

$

In Stock, Qty 8

0

64

White Outdoor 781-0090

Pivot Bracket Ass'y.

Variations

White Outdoor 781-0090-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0090-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0090-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

White Outdoor 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

66

White Outdoor 781-0075

Arm Extension
(Superseded to 781-0075-0637)

Variations

White Outdoor 781-0075-0637

EXTENSION-ARM - POWDER BLACK (0637)

$

$

Not available

$

$

67

White Outdoor 781-0093

Adjustment Lever Ass'y.
(Superseded to 981-0093)

$

$

Not available

68

White Outdoor 732-0188A

Torsion Spring

$12.99

$

In Stock, Qty 10

0

?69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

?70

White Outdoor 736-0119

L-Wash. 5/16" I.D."
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

72

White Outdoor 738-0898

Axle 8.20" Lg. (Front)
(Superseded to 938-0898)

$

$

Not available

73

White Outdoor 681-0044

Base Ass'y.

Variations

White Outdoor 681-0044-0637

BASE ASSY - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0044-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 681-0044-0650

BASE ASSY - RED METALLIC (0650)

$

$

Not available

White Outdoor 681-0044-0662

BASE ASSY - OYSTER GRAY (0662)

$

$

Not available

$

$

74

White Outdoor 714-0101

Hairpin Cotter 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

75

White Outdoor 710-0654A

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

76

White Outdoor 734-1264

Front Wheel Ass'y.

$55.99

$

Usually ships in 3-6 days

0

77

Engine

$

$

Not available

80

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

82

White Outdoor 747-0907

Upper Clutch Rod

$

$

Not available

83

White Outdoor 747-0908

Lower Clutch Rod

$

$

Not available

84

White Outdoor 726-0221

Push Cap 1/2" Dia.

$6.49

$

In Stock, only 1 left!

0

85

White Outdoor 711-0386

Spacer 3.765" Lg.

$

$

Not available

86

White Outdoor 781-0095

Debris Deflector

Variations

White Outdoor 781-0095-0637

DEFLECTOR-DEBRIS - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0095-0483

DEFLECTOR-DEBRIS - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0095-0638

DEFLECTOR-DEBRIS - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0095-0665

DEFLECTOR-DEBRIS - YARDMAN GREEN (0665)

$

$

Not available

$

$

87

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .8" Lg.

$

$

Not available

90

White Outdoor 781-0580

Axle Arm

Variations

White Outdoor 781-0580-0637

AXLE ARM - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0580-0638

AXLE ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

91

White Outdoor 736-0105

Bell-Wash. .40" I.D.

$4.49

$

In Stock, Qty 20+

0

?92

White Outdoor 736-0280

Fl-Wash. .39" I.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

93

White Outdoor 738-0258

Shld. Bolt .5" Dia.
(Superseded to 938-0258)

$

$

Not available

94

White Outdoor 736-0255

Bell-Wash. .515" I.D.

$4.99

$

In Stock, only 3 left!

0

95

White Outdoor 738-0183

Shld. Bolt .50" Dia.
(Superseded to 938-0183)

$

$

Not available

96

White Outdoor 736-0192

Fl-Wash. .51" I.D. x .94"

$4.49

$

In Stock, Qty 8

0

97

White Outdoor 781-0100

Curb Height Adjuster

Variations

White Outdoor 781-0100-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0100-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 781-0100-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

99

White Outdoor 732-0552

Spring Adj. Lever
(Superseded to 932-0552)

$

$

Not available

100

White Outdoor 712-0266

Hex Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

101

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

102

White Outdoor 736-0504

Wave Wash. .51" I.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

103

White Outdoor 736-3050

Fl-Wash. .406" I.D. x .81" O.D.

$4.49

$

In Stock, Qty 16

0

104

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

105

White Outdoor 736-0452

Bell-Wash. .396" I.D. x 1.14" O.D.

$4.99

$

In Stock, Qty 7

0

106

White Outdoor 736-0504

Wave Wash. .51" I.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

107

White Outdoor 741-0484

Ball Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

108

White Outdoor 749-0941

Strut 15.91" Lg.
(Superseded to 749-0941-0637)

Variations

White Outdoor 749-0941-0637

STRUT - POWDER BLACK (0637)

$

$

Not available

$

$
