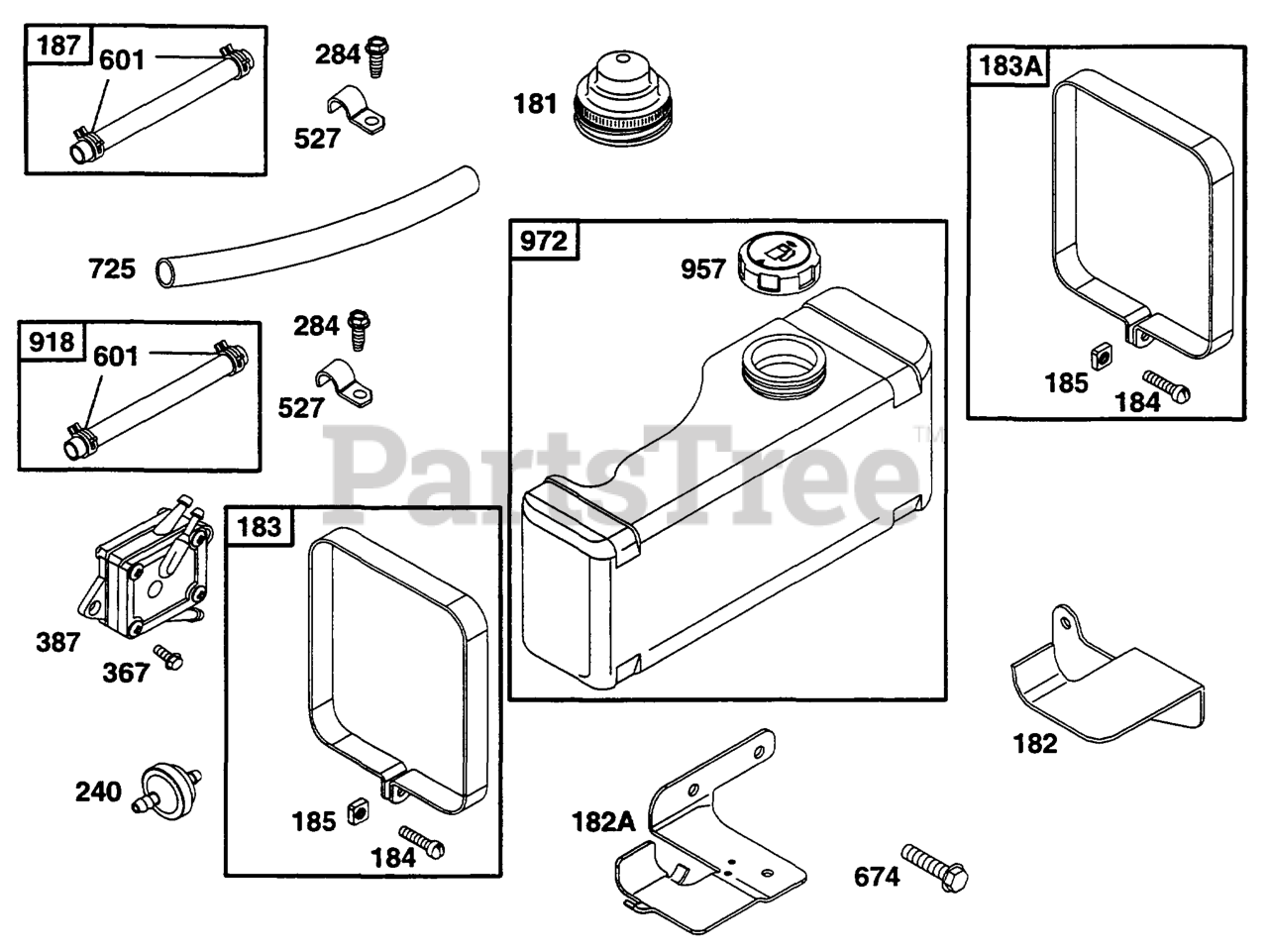

253702-0138-02 - Briggs & Stratton Vertical Engine Fuel Tank Group Parts Diagram

Vertical Engine

Fuel Tank Group Parts Diagram

  • Title

181

Briggs & Stratton 392305

Cap, Tank (Metal) A
(Superseded to 791545)

$

$

Not available

182A

Briggs & Stratton 224884

Bracket, Tank (P-29 (L.H.)
(Superseded to 692867)

$23.99

$

Usually ships in 2-12 days

0

182

Briggs & Stratton 222980

Bracket-Fuel Tank (R.H.)

$22.99

$

Usually ships in 2-12 days

0

183A

Briggs & Stratton 496852

Strap, Tank Assy (L.H.)
(Superseded to 692030)

$16.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 496853

Strap, Tank Assy (R.H.)
(Superseded to 698459)

$17.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 94286

Screw-Hex.
(Superseded to 697935)

$3.99

$

In Stock, only 1 left!

0

185

Briggs & Stratton 90970

Nut, Square (1/4-20)
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 299146

Line-Fuel (28" Cut To Required Length)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 298090

Filter, Fuel
(Superseded to 298090S)

$

$

Not available

284

Briggs & Stratton 94874

Screw, Hex Wash Hd
(Superseded to 690664)

Note: Used After Code Date 83042100

$5.49

$

In Stock, only 1 left!

0

284

Briggs & Stratton 94882

Screw-Slotted Hex.
(Superseded to 691044)

Note: Used Before Code Date 83042200

$3.99

$

In Stock, only 4 left!

0

367

Briggs & Stratton 93380

Screw-Sem

$1.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 494280

Pump-Fuel (1/4" O.d.)
(Superseded to 791885)

$90.99

$

In Stock, only 1 left!

0

527

Briggs & Stratton 221428

Breather Tube Clamp
(Superseded to 690394)

$4.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

674

Briggs & Stratton 93634

Screw-Hex (5/16-18 X 7/8")
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

674

Briggs & Stratton 94627

Screw, Sem Hex Head
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

725

Briggs & Stratton 222175

Deflector, Heat
(Superseded to 690403)

$6.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 393815

Hose-Vacuum (11" Cut To Required Length)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 493988

Cap, Tank (Plastic)
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

972

Briggs & Stratton 390225

Tank-Fuel (3 Quart, Plastic)

$

$

Not available
