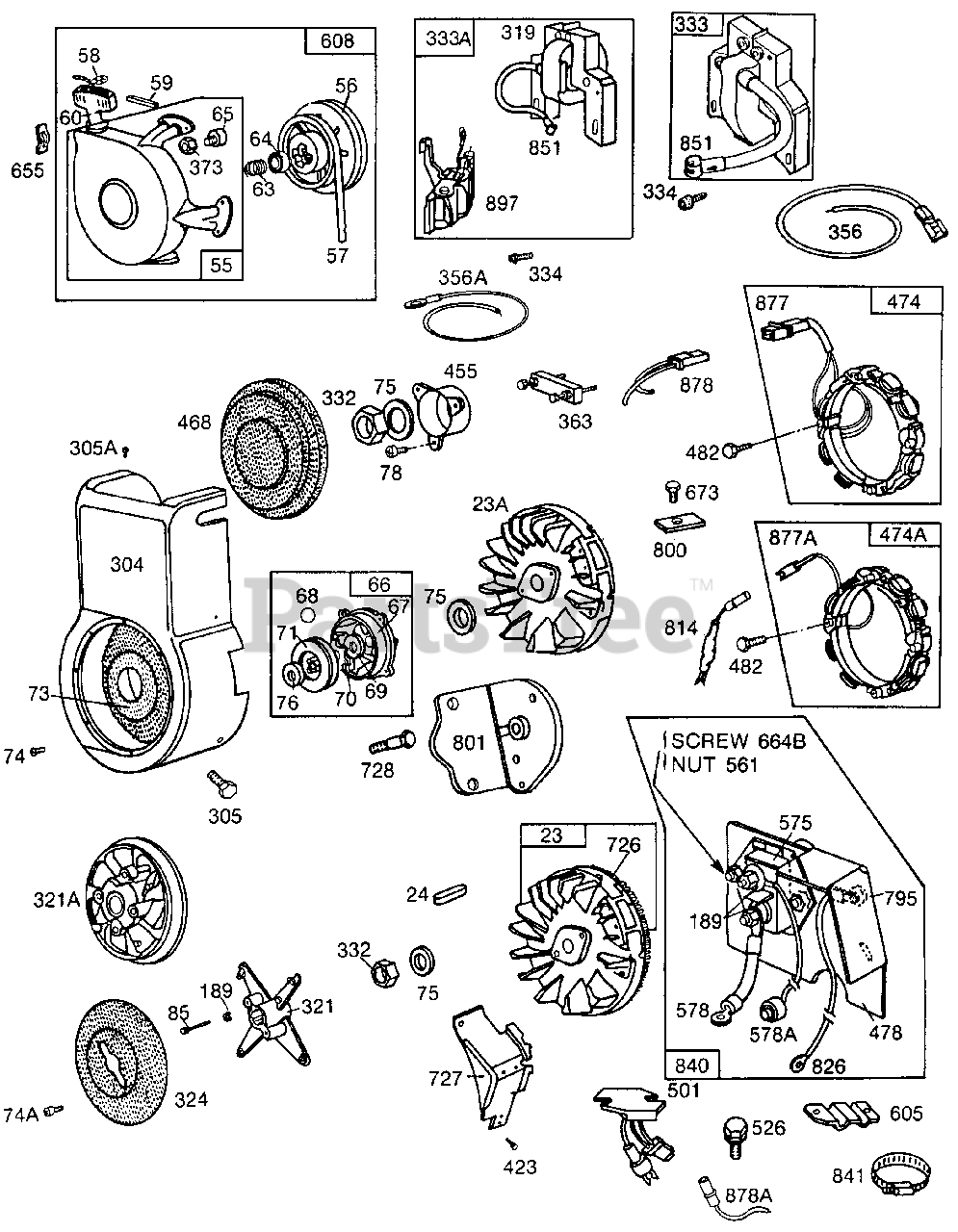

253417-1117-01 - Briggs & Stratton Horizontal Engine Blower Hsg,Rewind Assy,Elect Parts Diagram

Horizontal Engine

Blower Hsg,Rewind Assy,Elect Parts Diagram

  • Title

23A

Briggs & Stratton 392157

Flywheel Assy (For Rope And Rewind Starter Engines)
(Superseded to 690672)

$147.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 61760

Key, Flywheel (For Breaker Ignition System)
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 393576

Housing-Rew Str

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$

$

Not available

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter Rope.
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

64

Briggs & Stratton 230543

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 93067

Screw, Sem Hex Head (3/8" Long)
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 298798

Clutch Assy.-Rewind Starter
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 212132

Housing-Rewind Starter Clutch
(Superseded to 394897)

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

69

Briggs & Stratton 66718

Washer, Thrust (1-1/16" O.d. X 17/32" I.d.)
(Superseded to 690271)

$8.49

$

In Stock, only 1 left!

0

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221796

Switch-Stop
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74A

Briggs & Stratton 93808

Screw, Sem Truss Hd
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

78

Briggs & Stratton 93805

Screw-Sem
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 91386

Screw, Hex Head Cap (2" Long)
(Superseded to 691076)

$3.99

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 393994

Housing-Blower

$85.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 93876

Screw-Sem
(Superseded to 690312)

$3.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

319

Briggs & Stratton 395326

Armature-Mag (Electronic Ignition-Without Module)
(Superseded to 398811)

$63.99

$

In Stock, Qty 19

0

321A

Briggs & Stratton 212418

Fan-Booster (10" Dia.)

$45.99

$

Usually ships in 2-12 days

0

321

Briggs & Stratton 212159

Fan-Booster

$86.99

$

Usually ships in 2-12 days

0

324

Briggs & Stratton 222754

Screen-Rotating

$34.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333A

Briggs & Stratton 395492

Ignition Grp (Magnetron Ignition)
(Superseded to 398811)

$63.99

$

In Stock, Qty 19

0

333

Briggs & Stratton 398265

Armature Group
(Superseded to 398811)

$63.99

$

In Stock, Qty 19

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356A

Briggs & Stratton 391602

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

356A

Briggs & Stratton 299500

Wire, Ground Assy
(Superseded to 398808)

Note: (Used with Armature Refs. 333A and 333B)

$11.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 398874

Wire, Dual Stop Ass
(Superseded to 491391)

$6.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut, Hex Mach
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

423

Briggs & Stratton 93410

Screw-Hex

Note: Used with Metal Starter Cover

$7.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 93984

Screw, Shoulder Hex
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

455

Briggs & Stratton 222561

Cup-Screen Mtg.
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 222562

Screen-Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

474A

Briggs & Stratton 392595

Stator, Alternator (Tri Circuit, 9Amp Regulated)
(Superseded to 592829)

$102.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 393295

Stator, Alternator
(Superseded to 592830)

Note: (10, 13, or 16 Amp-Depending on Size of Flywheel Magnets) (Regulated)

$101.99

$

In Stock, Qty 20+

0

474

Briggs & Stratton 393474

Stator, Alternator (Dual-Circuit)
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

478

Briggs & Stratton 395410

Panel-Instrument
(Superseded to 395408)

Note: Used Before Code Date 81102100

$80.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 393374

Regulator, Alt (10 Amp)
(Superseded to 845907)

$61.99

$

In Stock, Qty 20+

0

526

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

561

Briggs & Stratton 92278

Nut, Hex (1/4-20)
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

575

Briggs & Stratton 299139

Switch, Starter Grp
(Superseded to 692303)

$

$

Not available

578A

Briggs & Stratton 393109

Wire Assy (Starter Switch To Alternator)

$14.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 392683

Wire-Starter Switch
(Superseded to 690630)

$12.99

$

Usually ships in 2-12 days

0

605

Briggs & Stratton 222934

Bracket-Regulator
(Superseded to 691177)

$24.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 390391

Starter-Rewind
(Superseded to 693900)

$131.99

$

In Stock, Qty 9

0

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

Note: (For Stamped Rewind Housing)

$4.99

$

Usually ships in 2-12 days

0

664B

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

673

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

726

Briggs & Stratton 392134

Gear, Ring Kit
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 391629

Cover-Starter Gear (Used With Motor 392749)
(Superseded to 395405)

$

$

Not available

727

Briggs & Stratton 395405

Cover-Str Drive

$

$

Not available

728

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

795

Briggs & Stratton 392697

Switch, Ignition (Toggle)
(Superseded to 496590)

Note: Uses: 93888 Hex.-Nut 392833 Switch-Ignition (Key)

$18.99

$

Usually ships in 2-12 days

0

800

Briggs & Stratton 222095

Retainer

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 392061

Cap, Drive
(Superseded to 394857)

Note: (For 3-1/16" or 3-3/4" Housing Length)

$56.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 393228

Bracket, Starter As (B&s 110V 3-1/2" Housing Length)
(Superseded to 394398)

$31.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 394856

Cap-Drive
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

814

Briggs & Stratton 392606

Harness Assy (Tri-Circuit)
(Superseded to 691955)

$69.99

$

Usually ships in 2-12 days

0

826

Briggs & Stratton 392684

Wire, Ground Assy
(Superseded to 690647)

Note: (Starter Switch to Ground Wire Terminal)

$18.99

$

In Stock, only 1 left!

0

840

Briggs & Stratton 395408

Panel Kit (Toggle Switch)

Note: Used Before Code Date 81102100

$80.99

$

Usually ships in 2-12 days

0

840

Briggs & Stratton 395409

Panel Kit (Key Switch)

Note: Used Before Code Date 81102100

$103.99

$

Usually ships in 2-12 days

0

841

Briggs & Stratton 393514

Clamp-Regulator
(Superseded to 690635)

$24.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877A

Briggs & Stratton 393537

Alternator Connecto (Tri Circuit & 9amp)

$

$

Not available

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

878A

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 393362

Harness, Alternator (Dual Circuit)
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available
