253417-0130-XX - Briggs & Stratton Horizontal Engine Cyl,Crankcase,Piston,Muffler Parts Diagram

Horizontal Engine

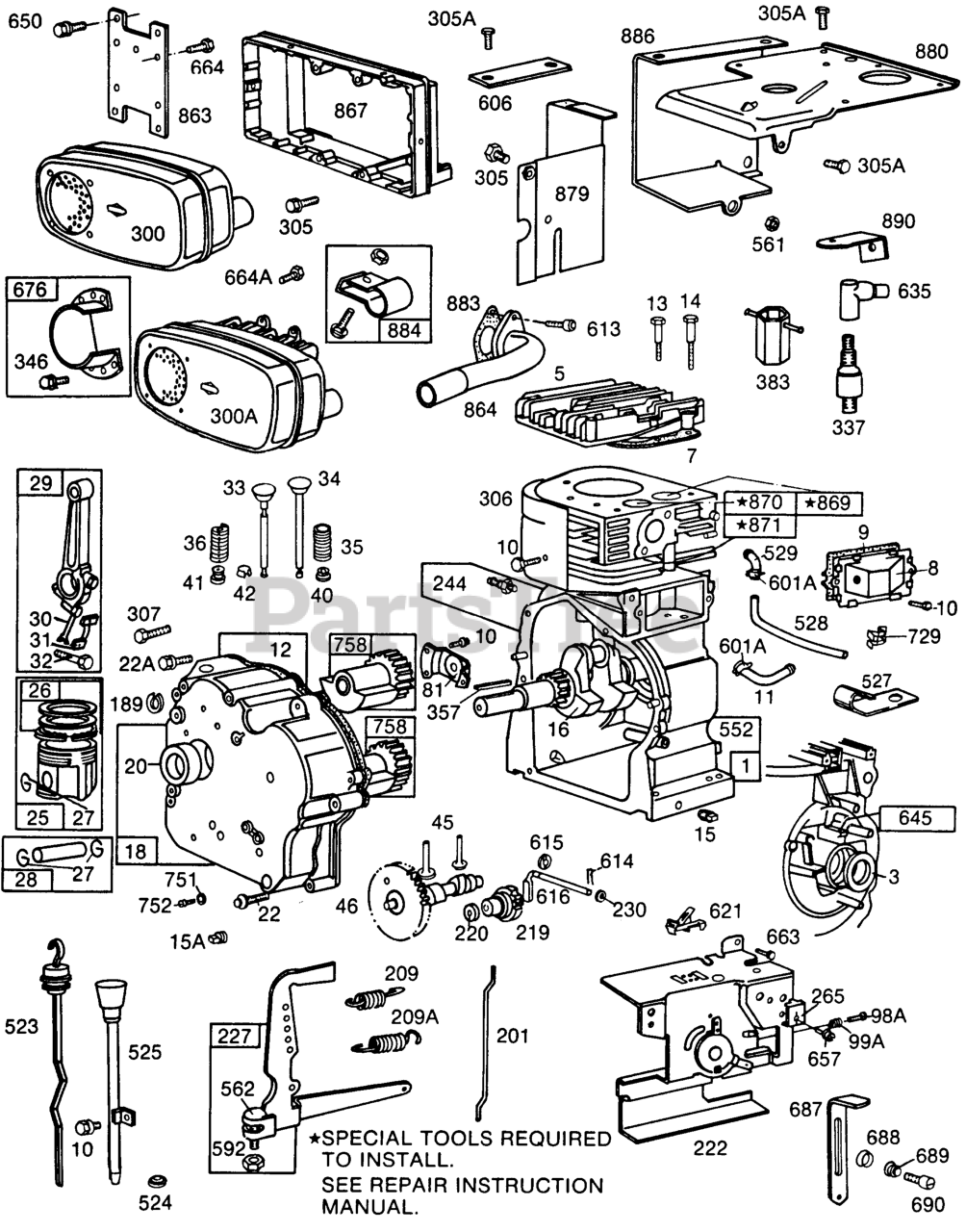

Cyl,Crankcase,Piston,Muffler Parts Diagram

  • Title

1

Briggs & Stratton 393525

Cylinder Assembly

$221.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 212119

Head-Cylinder
(Superseded to 212916)

$110.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 271078

Gasket-Cylinder Head
(Superseded to 272164)

Note: Included in Gasket Set-Part No. 393529

$21.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 392294

Breather Assembly

$14.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 393529

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280159

Grommet-Breather Tube

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270856

Gasket-Crankcase Cover 1/64" Thick
(Superseded to 692281)

Note: Included in Gasket Set-Part No. 393529

$7.49

$

In Stock, only 2 left!

0

12

Briggs & Stratton 270857

Gasket, Crankcase (.005" Thick)
(Superseded to 272219)

Note: Included in Gasket Set-Part No. 393529

$

$

Not available

12

Briggs & Stratton 270858

Gasket, Crankcase (.009" Thick)
(Superseded to 272220)

Note: Included in Gasket Set-Part No. 393529

$14.99

$

In Stock, Qty 6

0

13

Briggs & Stratton 93113

Screw, Machine Hex (2-5/16" Long)
(Superseded to 690912)

$3.99

$

In Stock, Qty 19

0

14

Briggs & Stratton 93211

Screw, Machine Hex (5/16-18 X 2-21/32")
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

15A

Briggs & Stratton 93418

Plug, Pipe (Flush)
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 91084

Plug, Pipe (Standar (3/8")
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 261336

Crankshaft
(Superseded to 491644)

$242.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 391747

Cover Assembly-Crankcase
(Superseded to 496985)

$255.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

Seal, Oil (Used In Crankcase Covers)
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22A

Briggs & Stratton 93764

Screw-Hex (2 1/8" Long)
(Superseded to 694966)

$5.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 391285

Piston/Ring Kit (Std.)
(Superseded to 499956)

$

$

Not available

25

Briggs & Stratton 391287

Piston/Ring Kit (.010" O.S.)

$

$

Not available

25

Briggs & Stratton 391288

Piston/Ring Kit (.020" O.S.)
(Superseded to 499958)

$158.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 391289

Piston/Ring Kit (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 391780

Ring, Piston Kit (Std.)
(Superseded to 499996)

$53.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 391781

Ring, Piston Kit (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 391782

Ring, Piston Kit (.020" O.S.)
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391783

Ring, Piston Kit (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 392331

Ring Set-Std Chr

$37.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston Std (Std.)

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston 005 (.005 O.S.)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 391816

Rod Assembly-Connecting
(Superseded to 490348)

$50.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 222329

Dipper-Connecting Rod
(Superseded to 690405)

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222299

Lock-Screw

$

$

Not available

32

Briggs & Stratton 92909

Screw, Hex Head Cap
(Superseded to 691133)

$5.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 261185

Valve-Exhaust
(Superseded to 691796)

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261462

Valve-Intake
(Superseded to 690429)

$29.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Keeper, Valve (2)
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 261183

Tappet-Valve
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212897

Gear-Cam
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 222407

Retainer-Counterweight
(Superseded to 691172)

$9.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99A

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 261338

Link-Governor

$4.99

$

Usually ships in 2-12 days

0

209A

Briggs & Stratton 261126

Spring-Governor
(Superseded to 796261)

$6.49

$

In Stock, only 4 left!

0

209

Briggs & Stratton 260871

Spring, Governor (For 2700 To 3300 R.p.m.)
(Superseded to 792602)

$3.49

$

In Stock, only 2 left!

0

219

Briggs & Stratton 391737

Gear-Governor

$38.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 221551

Washer, Steel
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

222

Briggs & Stratton 392291

Plate-Governor Control

$35.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 392707

Lever Assy.-Governor

$18.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

244

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, Qty 5

0

300A

Briggs & Stratton 393465

Muffler-Exhaust

Note: Uses: 93343 Screw-Hex. Hd. (1/4-20 x 5/8) 271179 Gasket 393551 Body Assy.-Finned

$109.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 392101

Muffler Assy (Super Lo-tone)
(Superseded to 498984S)

$84.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 93876

Screw-Sem
(Superseded to 690312)

$3.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306

Briggs & Stratton 222609

Shield-Cylinder

$5.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93211

Screw, Machine Hex (5/16-18 X 2-21/32")
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

357

Briggs & Stratton 91540

Key, Pulley (1/4")
(Superseded to 691483)

$6.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 392295

Cap And Dipstick-Oil Filler
(Superseded to 490665)

$

$

Not available

524

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 392283

Tube-Oil Filler
(Superseded to 496517)

$45.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 223131

Clamp-Breather Tube

$3.99

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 231105

Tube-Breather

$11.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 280160

Grommet-Cover (Air Cleaner End)

$2.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 231056

Bushing, Shaft (1/4" I.d.)
(Superseded to 491893)

$107.99

$

Usually ships in 2-12 days

0

561

Briggs & Stratton 92278

Nut, Hex (1/4-20)
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

601A

Briggs & Stratton 93814

Clamp-Hose

$1.99

$

Usually ships in 2-12 days

0

606

Briggs & Stratton 222697

Bracket-Strap

$1.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 93840

Screw-Socket Head
(Superseded to 698941)

$6.99

$

In Stock, only 2 left!

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231057

Crank, Governor (1/4" Dia.)
(Superseded to 692015)

$16.99

$

In Stock, only 2 left!

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

$

$

Not available

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

645

Briggs & Stratton 23513

Bushing-Plunger

Note: (Used only with Breaker Point Ignition)

$2.49

$

Usually ships in 2-12 days

0

650

Briggs & Stratton 93873

Screw-Hex (1/4-20 X 3/4)

$4.49

$

Usually ships in 2-12 days

0

657

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

664A

Briggs & Stratton 93587

Screw, Sem Hex Head (1/4-20 X 1")
(Superseded to 691083)

$5.99

$

Usually ships in 2-12 days

0

664

Briggs & Stratton 93872

Screw-Hex (1/4-20 X 1/2)

$3.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393761

Deflector-Muff (Side Outlet)
(Superseded to 795036)

$8.49

$

In Stock, only 1 left!

0

687

Briggs & Stratton 390690

Slide-Frictiong Control
(Superseded to 691949)

$

$

Not available

688

Briggs & Stratton 221766

Spring-Friction
(Superseded to 690395)

$8.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 260847

Spring-Friction
(Superseded to 690529)

$9.99

$

Usually ships in 2-12 days

0

690

Briggs & Stratton 90746

Screw, Machine Fill (10-32 X 5/8")
(Superseded to 690278)

$3.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 221907

Clip-Wire

$3.49

$

Usually ships in 2-12 days

0

751

Briggs & Stratton 22355

Washer-Seal
(Superseded to 690258)

$6.99

$

Usually ships in 2-12 days

0

752

Briggs & Stratton 93554

Screw-Plug
(Superseded to 690304)

$3.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 391481

Counterweight And Bearing Assembly
(Superseded to 691369)

$33.99

$

Usually ships in 2-12 days

0

863

Briggs & Stratton 222692

Bracket-Muffler

$13.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 392903

Pipe Assy.-Exhaust

$53.99

$

In Stock, only 1 left!

0

867

Briggs & Stratton 212235

Frame-Shroud

$65.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 261463

Seat, Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 210940

Seat-Exhaust Valve (Standard)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Bushing-Guide (Brass)

Note: See Repair Manual

$14.99

$

In Stock, Qty 7

0

879

Briggs & Stratton 392290

Side Cover Assembly

$15.99

$

Usually ships in 2-12 days

0

880

Briggs & Stratton 222613

Hood-Upper Engine

$

$

Not available

883

Briggs & Stratton 270917

Gasket-Exhaust Pipe
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0

884

Briggs & Stratton 393482

Clamp-Muffler Pipe
(Superseded to 691956)

$15.99

$

In Stock, only 3 left!

0

886

Briggs & Stratton 222695

Shroud-Exhaust Side

$9.49

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 222935

Bracket-Support

$5.99

$

Usually ships in 2-12 days

0
