253-536-190 - White Outdoor Edger, 3hp (1993) Edger Parts Diagram

Edger, 3hp

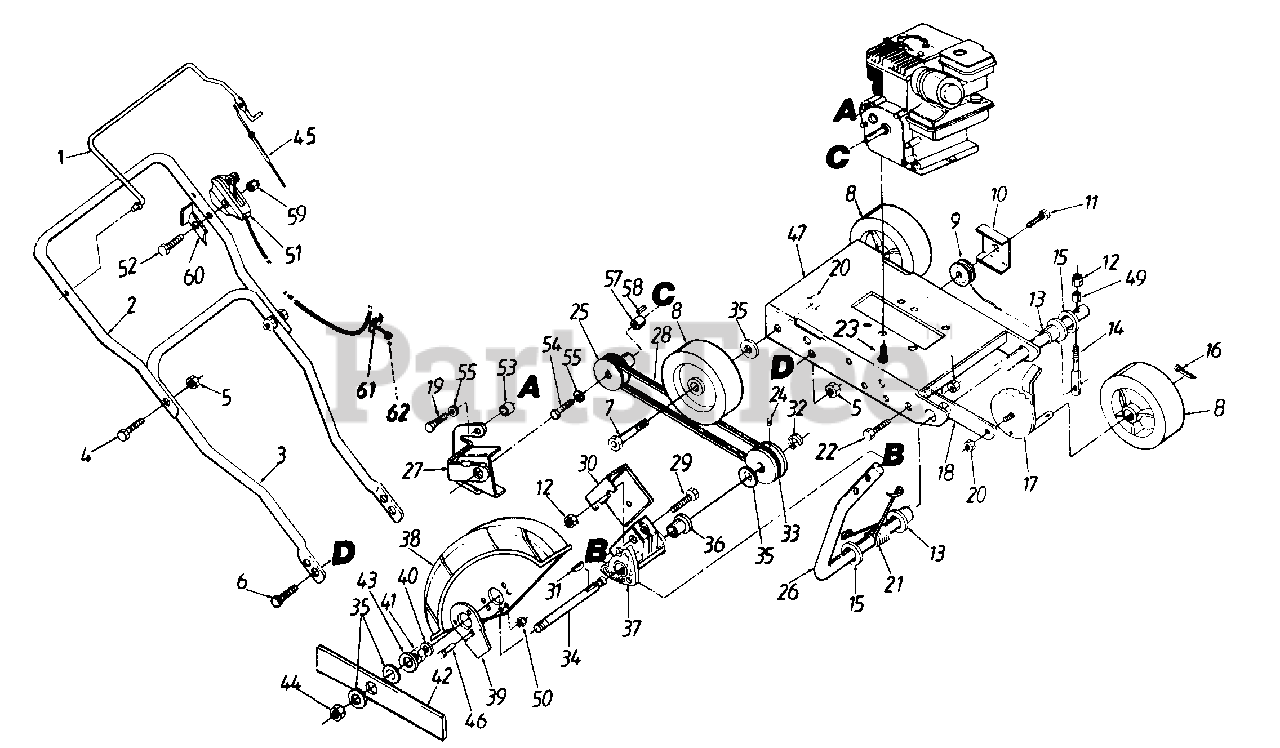

Edger Parts Diagram

  • Title

1

MTD 747-0748

Control Handle

$

$

Not available

2

MTD 749-0832

Upper Handle

Note: NLA

$

$

Not available

3

MTD 749-0833

Lower Handle

Note: NLA

$

$

Not available

4

MTD 710-0805

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 912-0429

Hex L-Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3038

Hex Bolt 5/16-18 x .625"

$4.99

$

In Stock, only 3 left!

0

7

MTD 738-0856

Wheel Bolt

Note: NLA

$

$

Not available

8

MTD 734-1690

Wheel - 6"

Note: NLA

$

$

Not available

9

MTD 756-0591

Idler Pulley

Note: NLA

$

$

Not available

10

MTD 787-0105

Bracket - Idler Pulley

Note: NLA

$

$

Not available

11

MTD 710-1213

Bolt (Special)

Note: NLA

$

$

Not available

12

MTD 912-0429

Hex L-Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

13

MTD 741-0577

Bushing

Note: NLA

$

$

Not available

14

MTD 747-0602

Arm-Pivot Rod

Note: NLA

$

$

Not available

15

MTD 738-0237

Flat Washer 5/8" I.D.

Note: NLA

$

$

Currently unavailable

16

MTD 914-0474

Cotter Pin 1/8 x 3/4"
(Superseded to 714-0474)

$

$

Not available

17

MTD 682-0500

Adjuster Assembly (Depth)

Note: NLA

$

$

Not available

18

MTD 787-0102

Arm - Front Wheel

Note: NLA

$

$

Not available

19

MTD 710-0888

Hex Bolt 5/16-24 x 1" (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

20

MTD 912-0431

Hex Keps L-Nut 3/8-16 Thd.

$4.99

$

In Stock, Qty 20+

0

21

MTD 732-0660

Spring - Cutterhead

Note: NLA

$

$

Not available

22

MTD 710-1088

Hex Bolt 5/16-18 x 1" Lg.

Note: NLA

$

$

Not available

23

MTD 710-0654A

Engine Bolt (Special)

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-3006

Locking Set Scr. 5/16-18

$4.49

$

In Stock, only 1 left!

0

25

MTD 756-0629

Engine Pulley

Note: NLA

$

$

Not available

26

MTD 747-0804

Rod - Cutterhead

Note: NLA

$

$

Not available

27

MTD 687-0100

Belt Guard

Note: NLA

Variations

MTD 687-0100-0498

No Longer Available GUARD-BELT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 687-0100-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 687-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-0100-0665

No Longer Available GUARD-BELT - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-0100-0716

No Longer Available GUARD-BELT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

28

MTD 954-0935

V-Belt

$21.99

$

Usually ships in 3-6 days

0

29

MTD 710-0805

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

30

MTD 787-0104

Belt Guard (Cutterhead)

Note: NLA

$

$

Not available

31

MTD 914-0112

Woodruff Key

$

$

Not available

32

MTD 916-0182

Retaining Ring

$

$

Not available

33

MTD 756-0590

Pulley - Cutterhead

$

$

Not available

34

MTD 911-0855

Shaft - Cutterhead

$43.99

$

Usually ships in 3-6 days

0

35

MTD 736-0331

Bell-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

36

MTD 741-0578

Bushing - Cutterhead

Note: NLA

$

$

Currently unavailable

37

MTD 719-0289

Housing - Cutterhead Shaft

Note: NLA

$

$

Not available

38

MTD 731-1193

Blade Guard

$

$

Not available

39

MTD 787-0101

Edge Guide

Note: NLA

$

$

Not available

40

MTD 936-0117

Flat Washer .035 Thk.

$7.49

$

Usually ships in 3-6 days

0

41

MTD 912-3001

Heavy Hex Jam Nut 3/8-24

$6.99

$

In Stock, Qty 17

0

42

MTD 742-0554

9" Replacement Blade

Note: NLA

$

$

Not available

43

MTD 936-0101

Fl-Wash. 3/8" I.D.

$4.99

$

Usually ships in 3-6 days

0

44

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

45

MTD 748-0591

Cable - Depth Control

Note: NLA

$

$

Currently unavailable

46

MTD 710-1105

Hex Self-Tap Scr. #10-24

Note: NLA

$

$

Not available

47

MTD 787-0111

Base - Edger Frame

Note: NLA

$

$

Not available

49

MTD HH-11-03527

Spacer - Pivot Arm

Note: NLA

$

$

Not available

50

MTD 712-0161

Nylok Nut #10-24

$4.49

$

In Stock, Qty 20+

0

51

MTD 746-0800A

Throttle Control

$61.99

$

Usually ships in 3-6 days

0

52

MTD 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, Qty 20+

0

53

MTD 750-0214

Spacer

$

$

Not available

54

MTD 710-0539

Hex Bolt 3/8-24 x 1.75"

$4.99

$

In Stock, Qty 12

0

55

MTD 936-0119

L-Wash 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

57

MTD 950-0456

Spacer
(Superseded to 750-0456)

$4.49

$

In Stock, Qty 20+

0

58

MTD 914-0133

Sq. Key 3/16" x 1.5"
(Superseded to 714-0133)

$

$

Not available

59

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

60

MTD 787-0110

Stop Bracket

Note: NLA

$

$

Not available

61

MTD 726-0316

Cable Clamp

Note: NLA

$

$

Not available

62

MTD 710-3090

Hex Tap Scr. #8 x .5"

Note: NLA

$

$

Not available
