252702-0639-01 - Briggs & Stratton Vertical Engine Fuel Tank Grp Parts Diagram

Vertical Engine

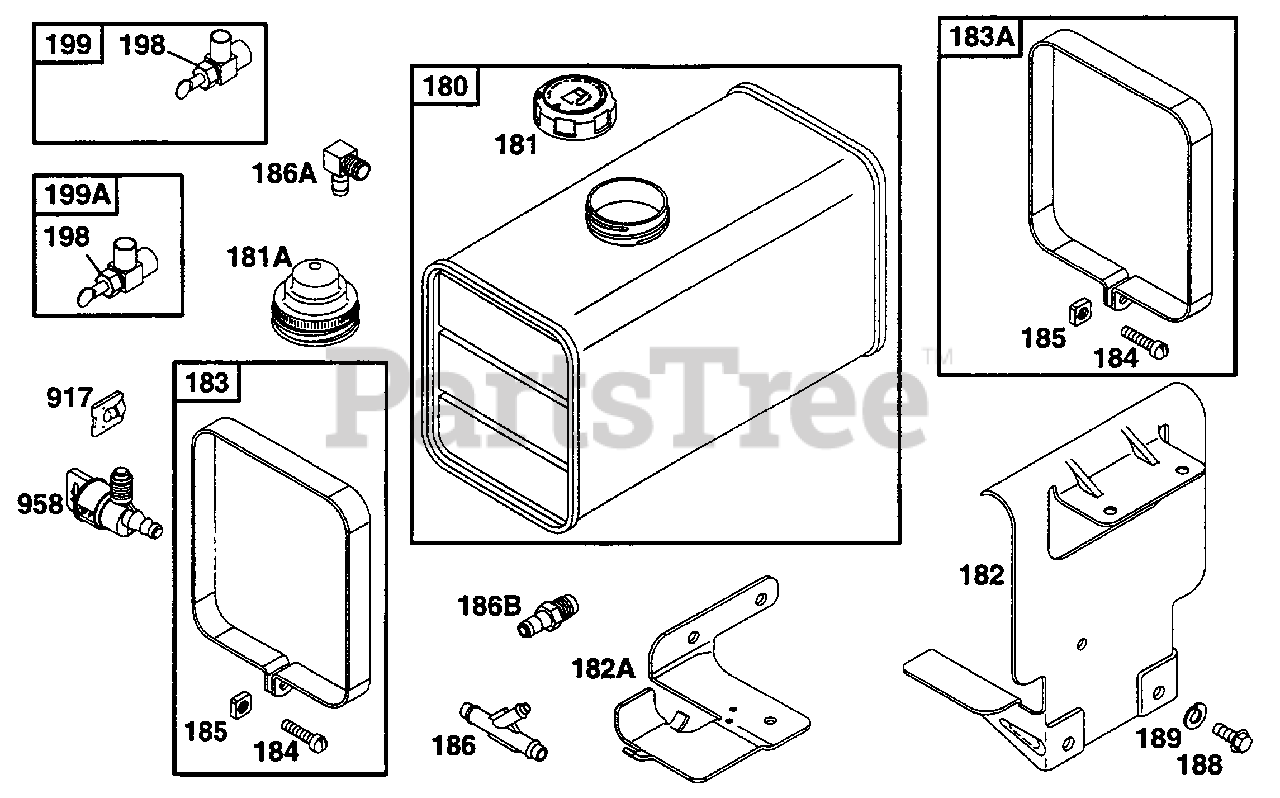

Fuel Tank Grp Parts Diagram

  • Title

180

Briggs & Stratton 292415

Tank-Fuel (8 Quart)

$185.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 390225

Tank-Fuel (3 Quart, Plastic)

$

$

Not available

181A

Briggs & Stratton 392305

Cap, Tank (Metal) A
(Superseded to 791545)

$

$

Not available

181

Briggs & Stratton 493988

Cap, Tank (Plastic)
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

182A

Briggs & Stratton 224884

Bracket, Tank (P-29 (L.H.)
(Superseded to 692867)

$23.99

$

Usually ships in 2-12 days

0

182

Briggs & Stratton 222980

Bracket-Fuel Tank (R.H.)

$22.99

$

Usually ships in 2-12 days

0

183A

Briggs & Stratton 496852

Strap, Tank Assy (L.H.)
(Superseded to 692030)

$16.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 496853

Strap, Tank Assy (R.H.)
(Superseded to 698459)

$17.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 94286

Screw-Hex.
(Superseded to 697935)

$3.99

$

In Stock, only 1 left!

0

185

Briggs & Stratton 90970

Nut, Square (1/4-20)
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 67218

Connector, Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0

186B

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

186

Briggs & Stratton 67218

Connector, Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0

188

Briggs & Stratton 94627

Screw, Sem Hex Head
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

198

Briggs & Stratton 293934

Valve, Shutoff Assy
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199A

Briggs & Stratton 297563

Outlet, Tank Assy
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 492649

Valve-Shut

$

$

Not available

917

Briggs & Stratton 223271

Valve Handle-Fuel Shut-Off
(Superseded to 691737)

$7.49

$

Usually ships in 2-12 days

0

958

Briggs & Stratton 399517

Vlv-Shut Off Plas (Plastic)
(Superseded to 698182)

$

$

Not available
