2526 H (2690029) - Massey Ferguson 38" Lawn Tractor, 16hp Transmission Group Parts Diagram

38" Lawn Tractor, 16hp

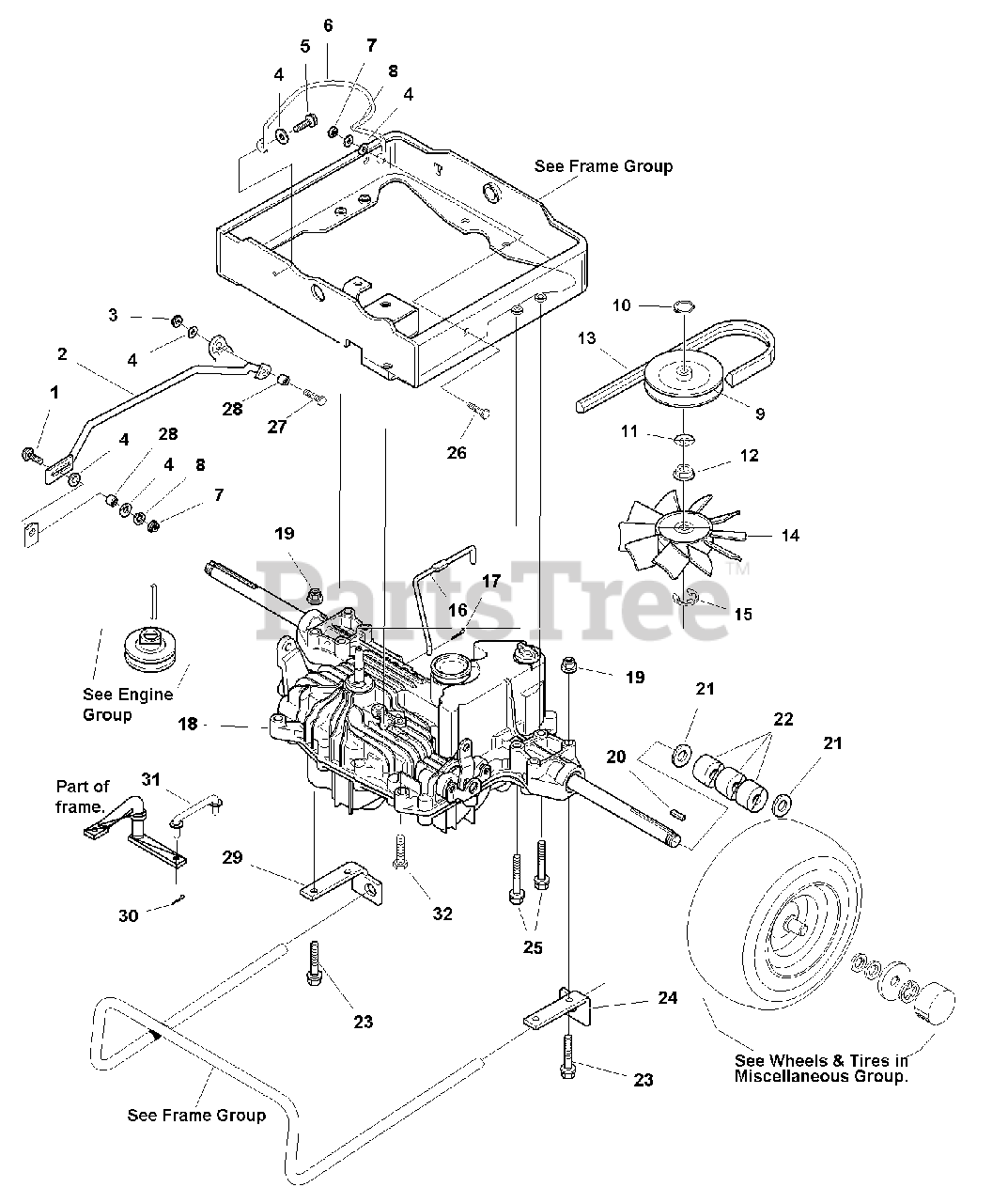

Transmission Group Parts Diagram

  • Title

1

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 8

0

2

Simplicity 1721097SM

ROD, Hydro Control

$25.99

$

Usually ships in 2-12 days

0

3

Simplicity 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

5

Simplicity 1960541SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 1721007SM

STOP, Belt

$

$

Not available

7

Simplicity 1917372SM

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1724313SM

PULLEY

$54.99

$

In Stock, only 2 left!

0

10

Simplicity 1724316SM

SNAP RING

$4.99

$

In Stock, Qty 6

0

11

Simplicity 1724315SM

LOCKWASHER

$4.49

$

In Stock, Qty 12

0

12

Simplicity 1724312SM

SPLINE COLLAR

$7.99

$

Usually ships in 2-12 days

0

13

Simplicity 1721130SM

V-BELT, Drive

$54.99

$

In Stock, only 1 left!

0

14

Simplicity 1724314SM

FAN
(Superseded to 7073753YP)

$53.99

$

In Stock, Qty 11

0

15

Simplicity 1718076SM

"E" RING

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1721005SM

ROD, Hydro Bypass

$12.99

$

Usually ships in 2-12 days

0

17

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1686876SM

TRANSMISSION ASSEMBLY
(Superseded to 1761325YP)

$1253.99

$

Usually ships in 2-12 days

0

19

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

20

Simplicity 1717749SM

KEY, 3/16 x 2
(Superseded to 021553MA)

$4.99

$

In Stock, only 2 left!

0

21

Simplicity 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1717451SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

23

Simplicity 1960586SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 1717427A

ANCHOR, Torsion Bar, LH

$

$

Not available

25

Simplicity 2860551SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

26

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

27

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 17

0

28

Simplicity 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

29

Simplicity 1717428A

ANCHOR, Torsion Bar, RH

$

$

Not available

30

Simplicity 1918451SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1720998SM

ROD, Brake

$14.99

$

Usually ships in 2-12 days

0

32

Simplicity 1960585SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4

$5.49

$

Usually ships in 2-12 days

0
