2525 - Weed Eater Blower, Electric Blower Assembly Parts Diagram

Blower, Electric

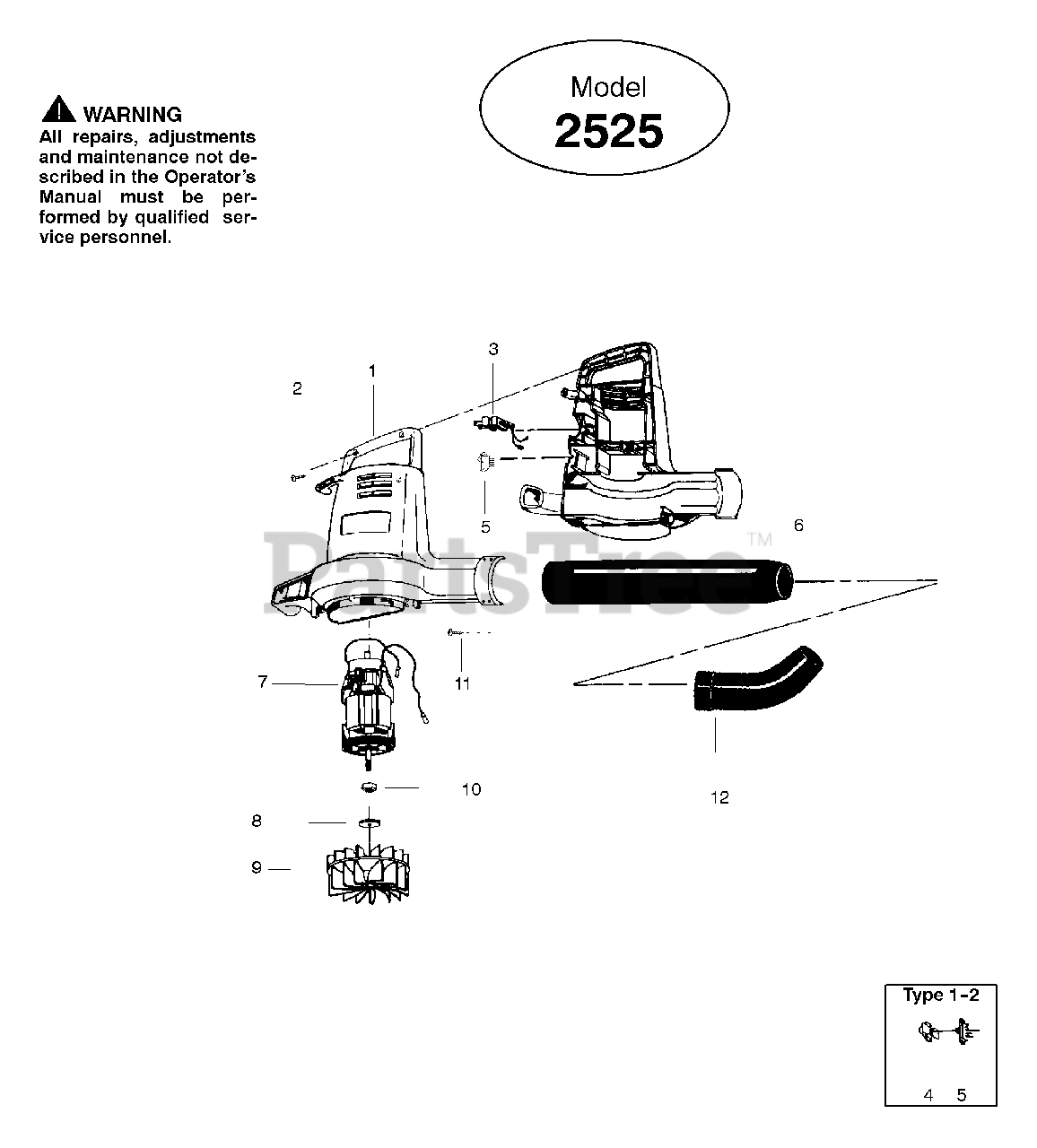

Blower Assembly Parts Diagram

  • Title

1

Poulan 530403264

Housing Set Type 1 & 2

$

$

Not available

1

Poulan 530404158

Housing Set Type 3

$

$

Not available

2

Poulan 530016317

Screw

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530403269

Wire Harness Type 1 & 2

Note: (Incls. Switch)

$

$

Not available

3

Poulan 530404161

Wire Harness Type 3
(Superseded to 545124201)

Note: (Incls. Switch)

$

$

Not available

4

Poulan 530401008

Switch Cover Type 1 & 2 ONLY

$0.99

$

Usually ships in 3-10 days

0

5

Poulan 530351456

Switch Type 1 & 2

$

$

Not available

5

Poulan 530404204

Switch Type 3

$

$

Not available

6

Poulan 530401884

Blower Tube

$

$

Not available

7

Poulan 530404105

Motor Ass'y. Type 1

$

$

Not available

7

Poulan 530071766

Motor Ass'y. Type 2 & 3

Note: (Incl. # 10)

$54.99

$

Usually ships in 3-10 days

0

8

Poulan 530400897

Washer

$

$

Not available

9

Poulan 530351451

Impeller

$

$

Not available

10

Poulan 530404164

Spacer (type 2 & 3 only)

$

$

Not available

11

Poulan 530015994

Screw

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530403682

Nozzle

Note: (incl. #6)

$

$

Not available

Poulan 530163993

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530402541

Warning Decal

Note: Not Shown

$2.49

$

In Stock, only 1 left!

0
