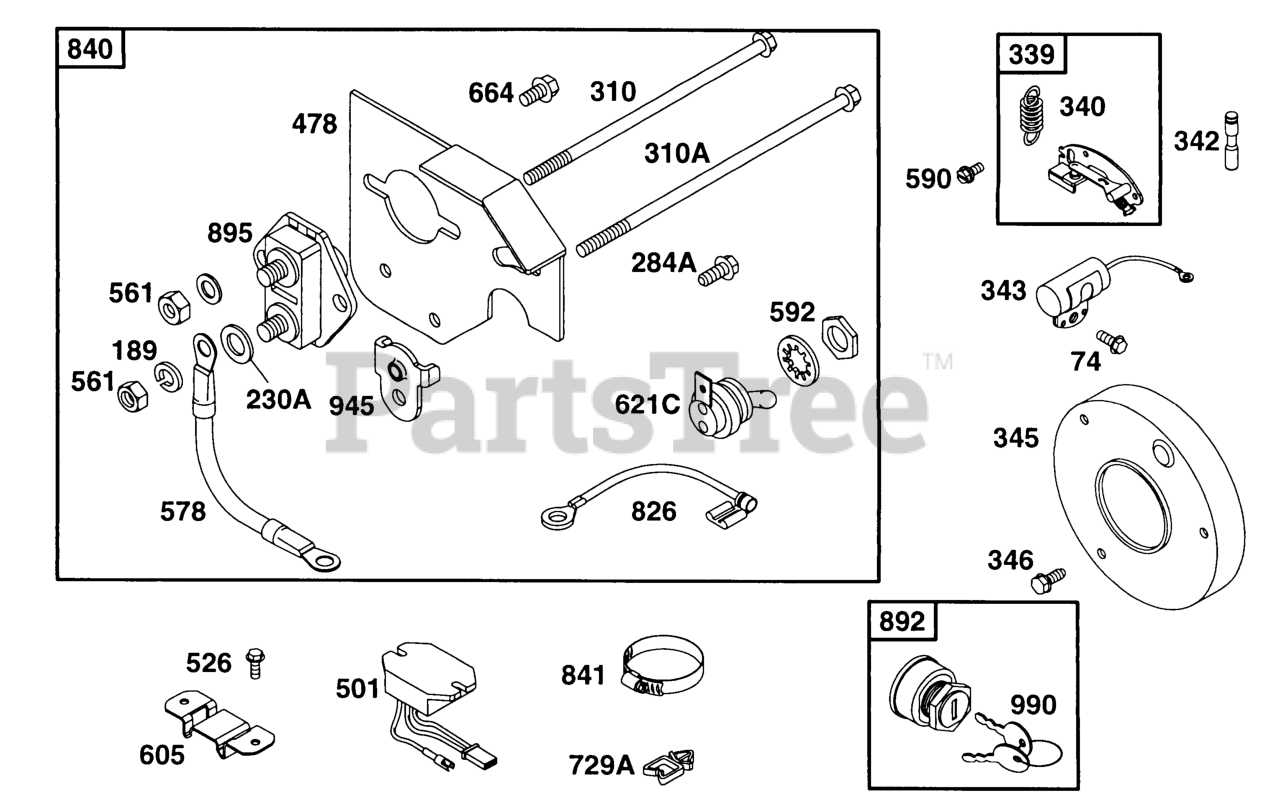

252416-0737-01 - Briggs & Stratton Horizontal Engine Starter Panel Kit Parts Diagram

Horizontal Engine

Starter Panel Kit Parts Diagram

  • Title

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

230A

Briggs & Stratton 91325

Washer-Plain
(Superseded to 690282)

$3.99

$

Usually ships in 2-12 days

0

284A

Briggs & Stratton 94620

Screw, Tapping Hex
(Superseded to 691693)

$3.99

$

In Stock, Qty 12

0

310A

Briggs & Stratton 94169

Screw, Hex Flange H (For 4-1/2" Housing Length)
(Superseded to 691263)

$

$

Not available

310A

Briggs & Stratton 93934

Screw, Hex Head Sem B & S 120V (3-1/2" Housing Length)
(Superseded to 690318)

$6.49

$

In Stock, only 2 left!

0

310

Briggs & Stratton 391706

Screw-Hex (For 3 1/16" Housing Length)

$3.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 94003

Screw, Hex Flange H (For 3-5/8" Housing Length)
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

310

Briggs & Stratton 94169

Screw, Hex Flange H (For 4-1/2" Housing Length)
(Superseded to 691263)

$

$

Not available

339

Briggs & Stratton 391284

Breaker-Ignition

$44.99

$

Usually ships in 2-12 days

0

340

Briggs & Stratton 26018

Spring-Breaker Arm

$7.49

$

In Stock, only 1 left!

0

342

Briggs & Stratton 65704

Plunger-Breather Point
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

343

Briggs & Stratton 29861

Condenser

$25.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 22517

Cover-Breaker

$4.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

478

Briggs & Stratton 395410

Panel-Instrument
(Superseded to 395408)

$80.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 394890

Regulator
(Superseded to 845907)

Note: (10, 13, or 16 Amp, Depending on Size of Flywheel Magnets)

$61.99

$

In Stock, Qty 20+

0

526

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

561

Briggs & Stratton 92278

Nut, Hex (1/4-20)
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 392683

Wire-Starter Switch
(Superseded to 690630)

$12.99

$

Usually ships in 2-12 days

0

590

Briggs & Stratton 93226

Screw-Slotted Hex.
(Superseded to 690295)

$6.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

592

Briggs & Stratton 92278

Nut, Hex (1/4-20)
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 93888

Nut-Hex.
(Superseded to 690315)

$3.49

$

Usually ships in 2-12 days

0

605

Briggs & Stratton 222934

Bracket-Regulator
(Superseded to 691177)

$24.99

$

Usually ships in 2-12 days

0

621C

Briggs & Stratton 496590

Switch-Toggle

$18.99

$

Usually ships in 2-12 days

0

664

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

729A

Briggs & Stratton 280590

Retainer-Wire
(Superseded to 690588)

$4.49

$

Usually ships in 2-12 days

0

826

Briggs & Stratton 397674

Wire, Ground Assy
(Superseded to 690647)

Note: (Starter Switch to Ground Wire Terminal)

$18.99

$

In Stock, only 1 left!

0

840

Briggs & Stratton 395408

Panel Kit (Toggle Switch)

$80.99

$

Usually ships in 2-12 days

0

840

Briggs & Stratton 395409

Panel Kit (Key Switch)

$103.99

$

Usually ships in 2-12 days

0

841

Briggs & Stratton 393514

Clamp-Regulator
(Superseded to 690635)

$24.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 392833

Key Switch

$41.99

$

In Stock, only 2 left!

0

895

Briggs & Stratton 299139

Switch, Starter Grp
(Superseded to 692303)

$

$

Not available

895

Briggs & Stratton 393486

Switch-Starting Briggs & Stratton 120V

$58.99

$

Usually ships in 2-12 days

0

945

Briggs & Stratton 223159

Bracket-Starter Panel
(Superseded to 692132)

$12.99

$

Usually ships in 2-12 days

0

990

Briggs & Stratton 392832

Key Set-Starter Switch
(Superseded to 691959)

$7.99

$

In Stock, Qty 8

0
