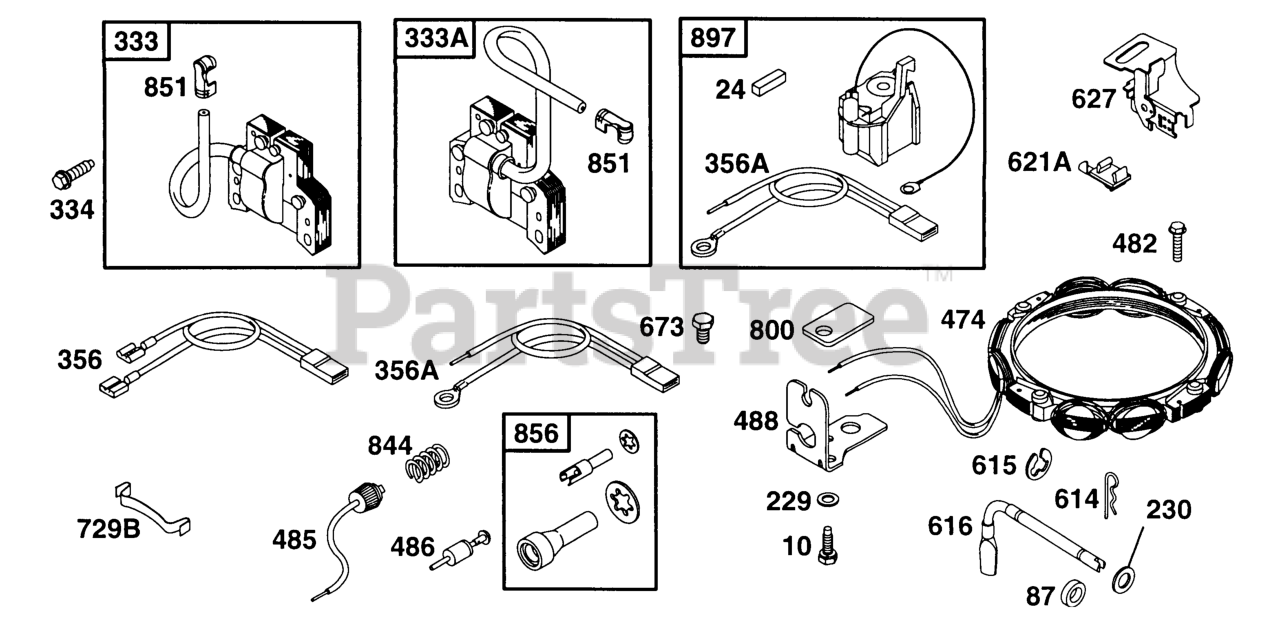

252412-0134-XX - Briggs & Stratton Horizontal Engine Electrical Parts Diagram

Horizontal Engine

Electrical Parts Diagram

  • Title
10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

87

Briggs & Stratton 491323

Seal, Governor Arm
(Superseded to 692407)

Note: Included in Gasket Set-Part No. 492653

$7.99

$

In Stock, Qty 8

0

229

Briggs & Stratton 220680

Washer, Steel
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 94742

Washer, Plain
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

333A

Briggs & Stratton 298968

Armature-Mag (For Breaker Ignition)

$

$

Not available

333

Briggs & Stratton 398811

Armature-Mag (Magnetron Ignition)

$63.99

$

In Stock, Qty 17

0

334

Briggs & Stratton 94731

Screw, Hex Wash Hea
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356A

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

356

$6.49

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 393800

Alternator (Dual Circuit With Fuse)
(Superseded to 592831)

$101.99

$

In Stock, Qty 7

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

485

Briggs & Stratton 390888

Wire/Fuse Cap

$14.99

$

Usually ships in 2-12 days

0

486

$17.99

$

Usually ships in 2-12 days

0

488

Briggs & Stratton 222211

Bracket-Output

$6.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231057

Crank, Governor (1/4" Dia.)
(Superseded to 692015)

$16.99

$

In Stock, only 2 left!

0

621A

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

$

$

Not available

627

$7.49

$

Usually ships in 2-12 days

0

673

Briggs & Stratton 94602

Screw, Hex Wash Hd
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

729B

$3.49

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

844

$2.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

856

$2.99

$

Usually ships in 2-12 days

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available
