25208 - Toro Enclosed Operator Cab for RT1200 Trencher (SN: 400000000 - 999999999) WINDSHIELD ASSEMBLY NO. 136-7665 Parts Diagram

Enclosed Operator Cab for RT1200 Trencher

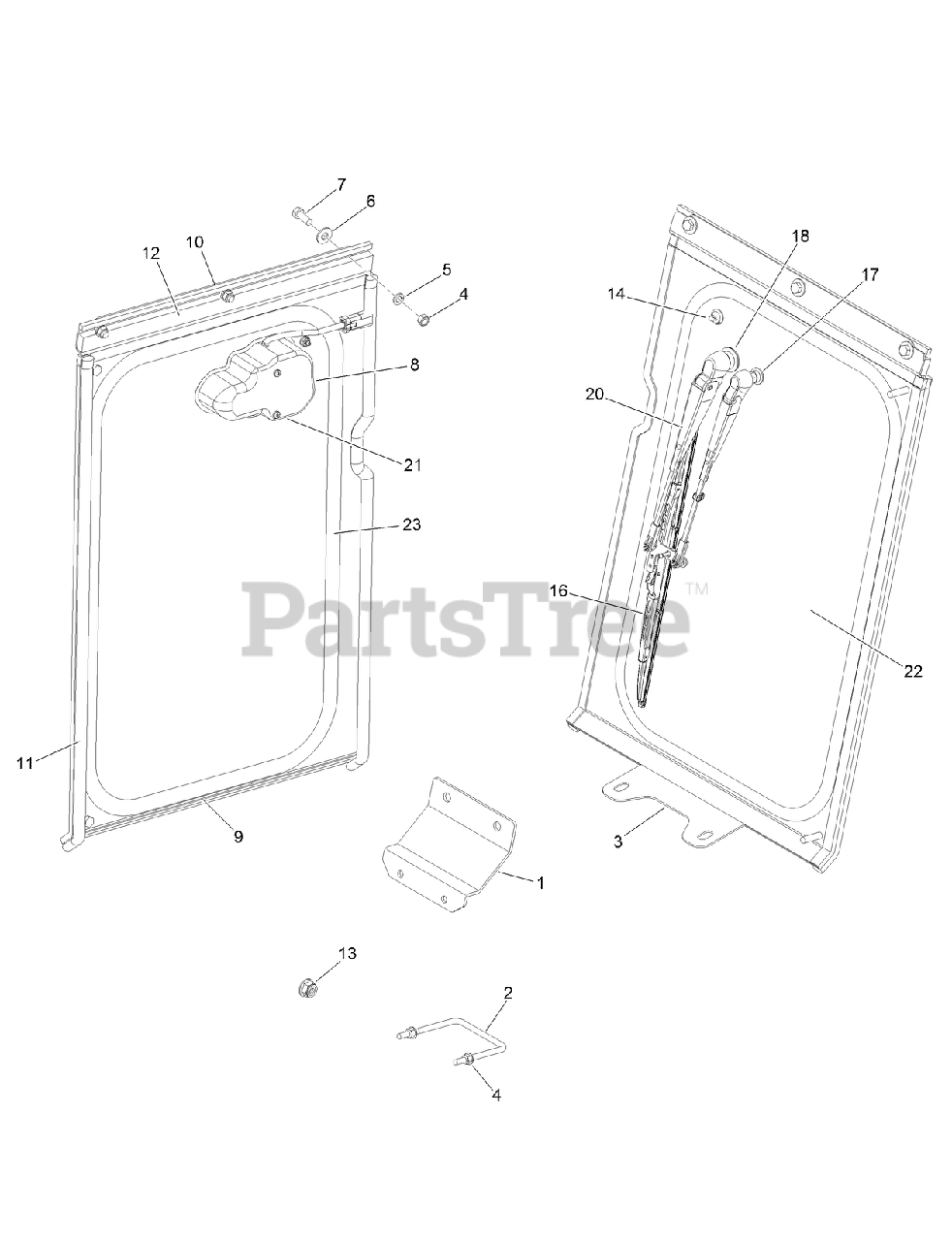

WINDSHIELD ASSEMBLY NO. 136-7665 Parts Diagram

  • Title
1

Toro 136-7667

MOUNT-BRACKET, MUFFLER

$

$

Currently unavailable

2

Toro 136-7668

U-BOLT

$

$

Currently unavailable

3

Toro 136-7666

MOUNT-PANEL, WINDSHIELD

$

$

Currently unavailable

4

Toro 136-7669

NUT-HEX

$

$

Currently unavailable

5

Toro 136-7670

WASHER-LOCK

$

$

Currently unavailable

6

Toro 136-7671

WASHER-FLAT

$

$

Currently unavailable

7

Toro 136-7672

BOLT-HHCS

$

$

Currently unavailable

8

Toro 136-7748

BOLT-HHCS

$

$

Currently unavailable

9

Toro 136-7673

SEAL-RUBBER

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Toro 136-7675

SEAL-RUBBER

$

$

Currently unavailable

12

Toro 136-7676

SEAL-RUBBER

$

$

Currently unavailable

13

Toro 136-7677

NUT-HEX

$

$

Currently unavailable

14

Toro 136-7678

FITTING-HOSE, WIPER

$

$

Currently unavailable

15

Toro 136-7679

TAPE

Note: Not illustrated

$

$

Currently unavailable

16

Toro 136-7680

BLADE-WIPER

$

$

Currently unavailable

17

Toro 136-7681

M8 MOUNT HARDWARE

$

$

Currently unavailable

18

Toro 136-7682

M16 MOUNT HARDWARE

$

$

Currently unavailable

19

Toro 136-7683

DECAL-WINDOW, WIPER

Note: Not illustrated

$

$

Currently unavailable

20

Toro 136-7684

WIPER-ARM

$

$

Currently unavailable

21

Toro 136-7685

MOTOR-WIPER

$

$

Currently unavailable

22

Toro 136-7686

GLASS-WINDSHIELD

$

$

Currently unavailable

23

Toro 136-7687

RUBBER-WINDOW

$

$

Currently unavailable
