25208 - Toro Enclosed Operator Cab for RT1200 Trencher (SN: 400000000 - 999999999) REAR WINDOW ASSEMBLY NO. 136-7688 Parts Diagram

Enclosed Operator Cab for RT1200 Trencher

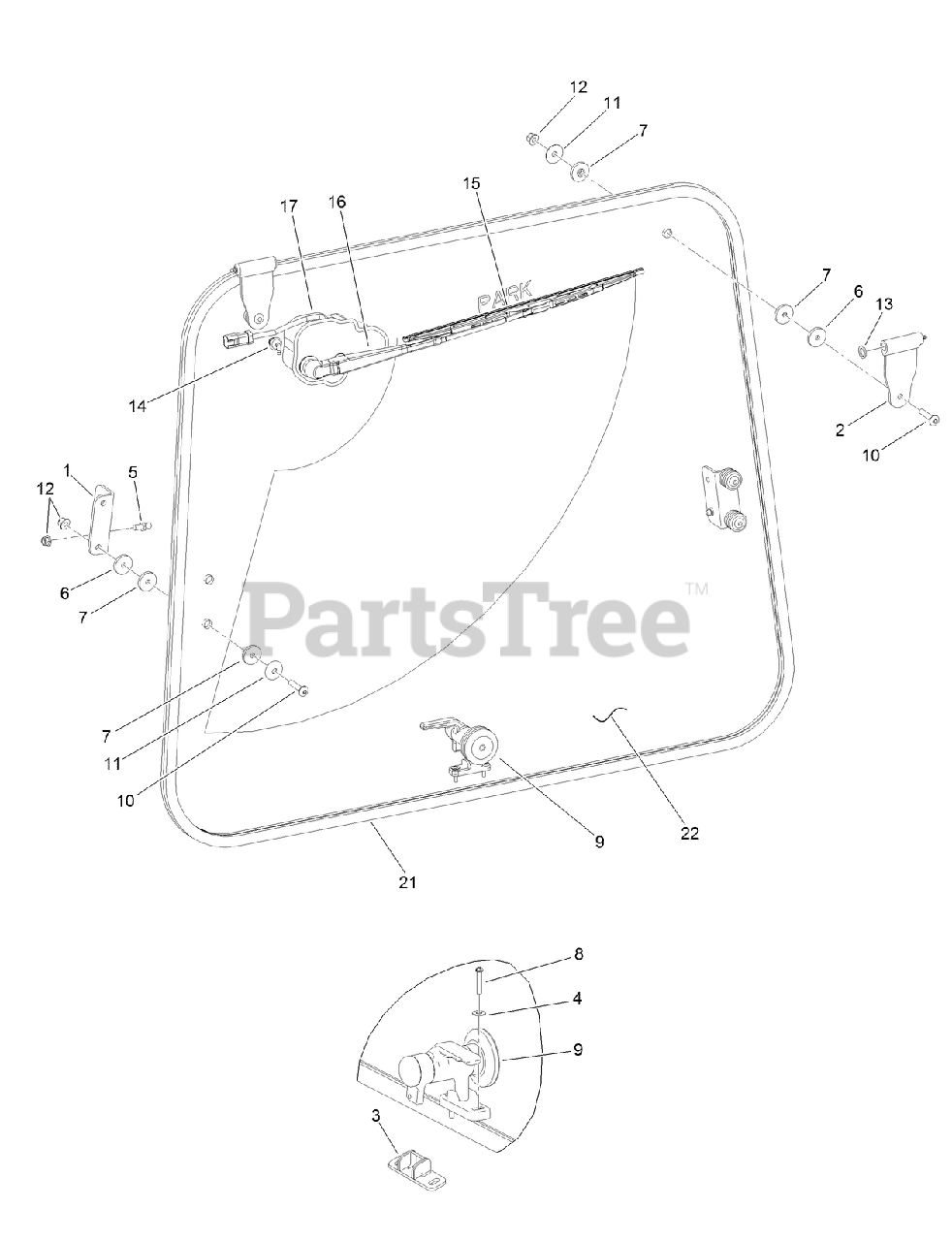

REAR WINDOW ASSEMBLY NO. 136-7688 Parts Diagram

  • Title
1

Toro 136-7689

MOUNT-GAS SPRING, REAR

$

$

Currently unavailable

2

Toro 136-7690

HINGE-FEMALE

$

$

Currently unavailable

3

Toro 136-7691

LOCK-WINDOW

$

$

Currently unavailable

4

Toro 136-7692

WASHER-FLAT

$

$

Currently unavailable

5

Toro 136-7693

STUD-BALL, GAS SPRING

$

$

Currently unavailable

6

Toro 136-7694

WASHER-RUBBER

$

$

Currently unavailable

7

Toro 136-7695

WASHER-SHOULDER, GLASS MOUNT

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro 136-7697

HANDLE-SELECTOR, LONG

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Toro 136-7699

WASHER-FENDER

$

$

Currently unavailable

12

Toro 136-7677

NUT-HEX

$

$

Currently unavailable

13

Toro 136-7700

WASHER-HINGE, BRASS

$

$

Currently unavailable

14

Toro 136-7678

FITTING-HOSE, WIPER

$

$

Currently unavailable

15

Toro 136-7680

BLADE-WIPER

$

$

Currently unavailable

16

Toro 136-7701

WIPER-ARM, WET

$

$

Currently unavailable

17

Toro 136-7702

MOTOR-WIPER

$

$

Currently unavailable

18

Toro 136-7681

M8 MOUNT HARDWARE

Note: Not illustrated

$

$

Currently unavailable

19

Toro 136-7682

M16 MOUNT HARDWARE

Note: Not illustrated

$

$

Currently unavailable

20

Toro 136-7683

DECAL-WINDOW, WIPER

Note: Not illustrated

$

$

Currently unavailable

21

Toro 136-7703

SEAL-TRIM

$

$

Currently unavailable

22

Toro 136-7704

GLASS-WINDOW, REAR

$

$

Currently unavailable
