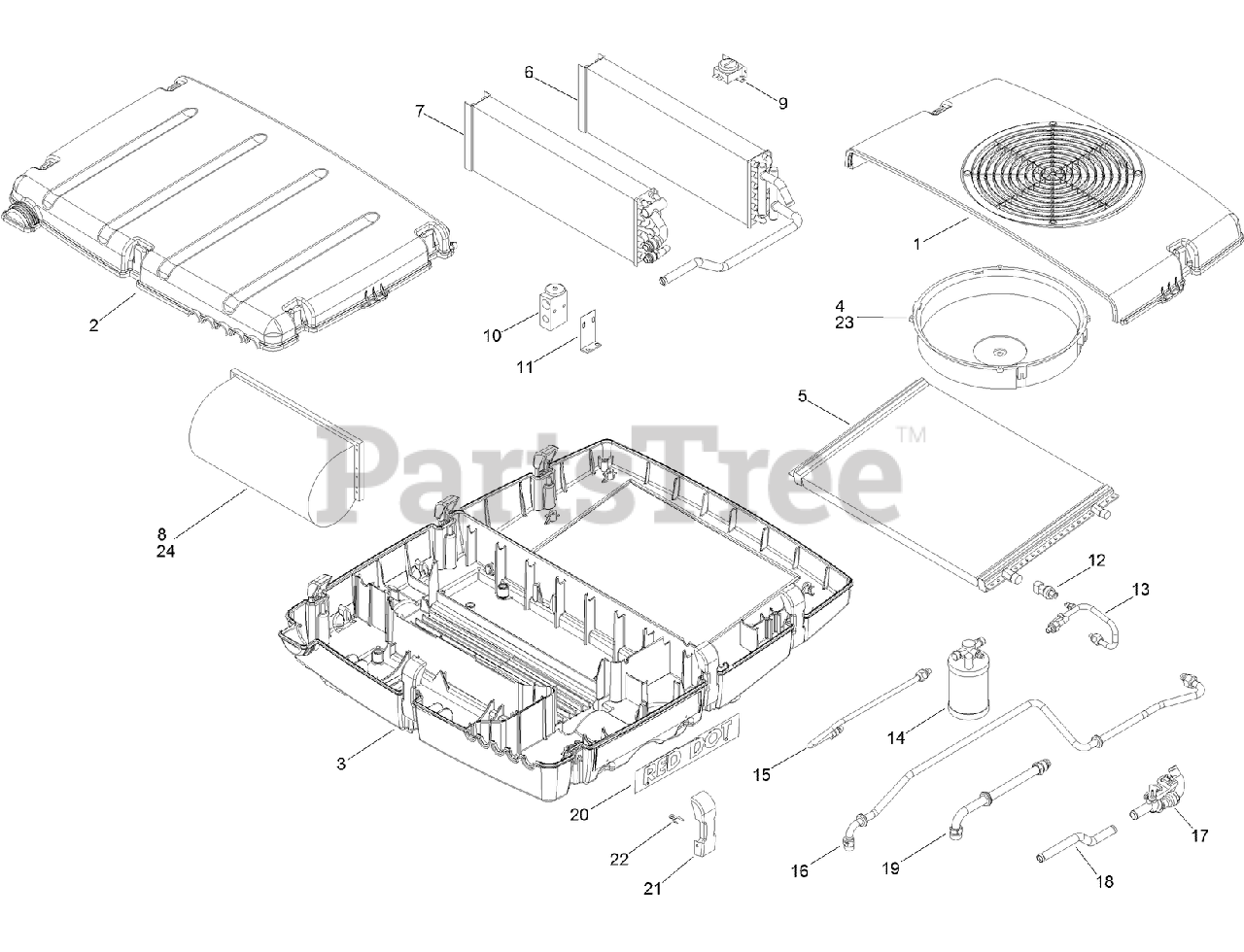

25208 - Toro Enclosed Operator Cab for RT1200 Trencher (SN: 400000000 - 999999999) AIR CONDITIONER/HEATER ASSEMBLY NO. 136-4029 Parts Diagram

Enclosed Operator Cab for RT1200 Trencher

AIR CONDITIONER/HEATER ASSEMBLY NO. 136-4029 Parts Diagram

  • Title
1

Toro 136-4310

COVER-CONDENSER

$

$

Currently unavailable

2

Toro 136-4311

COVER-EVAPORATOR

$

$

Currently unavailable

3

Toro 136-4312

HOUSING

$

$

Currently unavailable

4

Toro 136-4313

FAN/MOTOR ASM

$

$

Currently unavailable

5

Toro 136-4314

CONDENSOR

$

$

Currently unavailable

6

Toro 136-4315

HEATER CORE ASM

$

$

Currently unavailable

7

Toro 136-4316

EVAPORATOR ASM

$

$

Currently unavailable

8

Toro 136-4317

MOTOR BLOWER ASM

$

$

Currently unavailable

9

Toro 136-4318

THERMOSTAT

$

$

Currently unavailable

10

Toro 136-4319

VALVE-EXPANSION

$

$

Currently unavailable

11

Toro 136-4320

BRACKET-VALVE, EXPANSION

$

$

Currently unavailable

12

Toro 136-4321

SWITCH-PRESSURE

$

$

Currently unavailable

13

Toro 136-4322

TUBE-DRIER/RECIEVER

$

$

Currently unavailable

14

Toro 136-4323

DRIER-RECIEVER

$

$

Currently unavailable

15

Toro 136-4324

TUBE-CONDENSER

$

$

Currently unavailable

16

Toro 136-4325

TUBE-INLET, CONDITIONER

$

$

Currently unavailable

17

Toro 136-4326

VALVE-WATER

$

$

Currently unavailable

18

Toro 136-4327

TUBE-HEATER

$

$

Currently unavailable

19

Toro 136-4328

TUBE-OUTLET

$

$

Currently unavailable

20

Toro 136-4329

PLACARD

$

$

Currently unavailable

21

Toro 136-4330

LATCH-CENTER, OVER

$

$

Currently unavailable

22

Toro 136-4331

RETAINER-LATCH, PIVOT

$

$

Currently unavailable

23

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Toro 136-4334

HARNESS-WIRE

Note: Not illustrated

$

$

Currently unavailable

26

Toro 136-4335

RELAY-12V

Note: Not illustrated

$

$

Currently unavailable

27

Toro 136-4336

CONVERTER-VALVE, WATER

Note: Not illustrated

$

$

Currently unavailable

28

Toro 136-4337

PLENUM-OUTLET

Note: Not illustrated

$

$

Currently unavailable

29

Toro 136-4338

LOUVER

Note: Not illustrated

$

$

Currently unavailable

30

Toro 136-4339

SWITCH-ROTARY, 3 SPEED

Note: Not illustrated

$

$

Currently unavailable

31

Toro 136-4340

SWITCH-ROCKER

Note: Not illustrated

$

$

Currently unavailable

32

Toro 136-4341

KNOB-CONTROL, ROTARY

Note: Not illustrated

$

$

Currently unavailable

33

Toro 136-4342

HOUSING-FILTER, PLENUM

Note: Not illustrated

$

$

Currently unavailable

34

Toro 136-4343

FILTER-RECIRCULATING

Note: Not illustrated

$

$

Currently unavailable

35

Toro 136-4344

COVER-FILTER, RECIRCULATING

Note: Not illustrated

$

$

Currently unavailable

36

Toro 136-4345

RESISTOR-12V

Note: Not illustrated

$

$

Currently unavailable
