252 RX - Husqvarna String Trimmer (SN: 20023100001 - 20145199999) CLUTCH Parts Diagram

String Trimmer

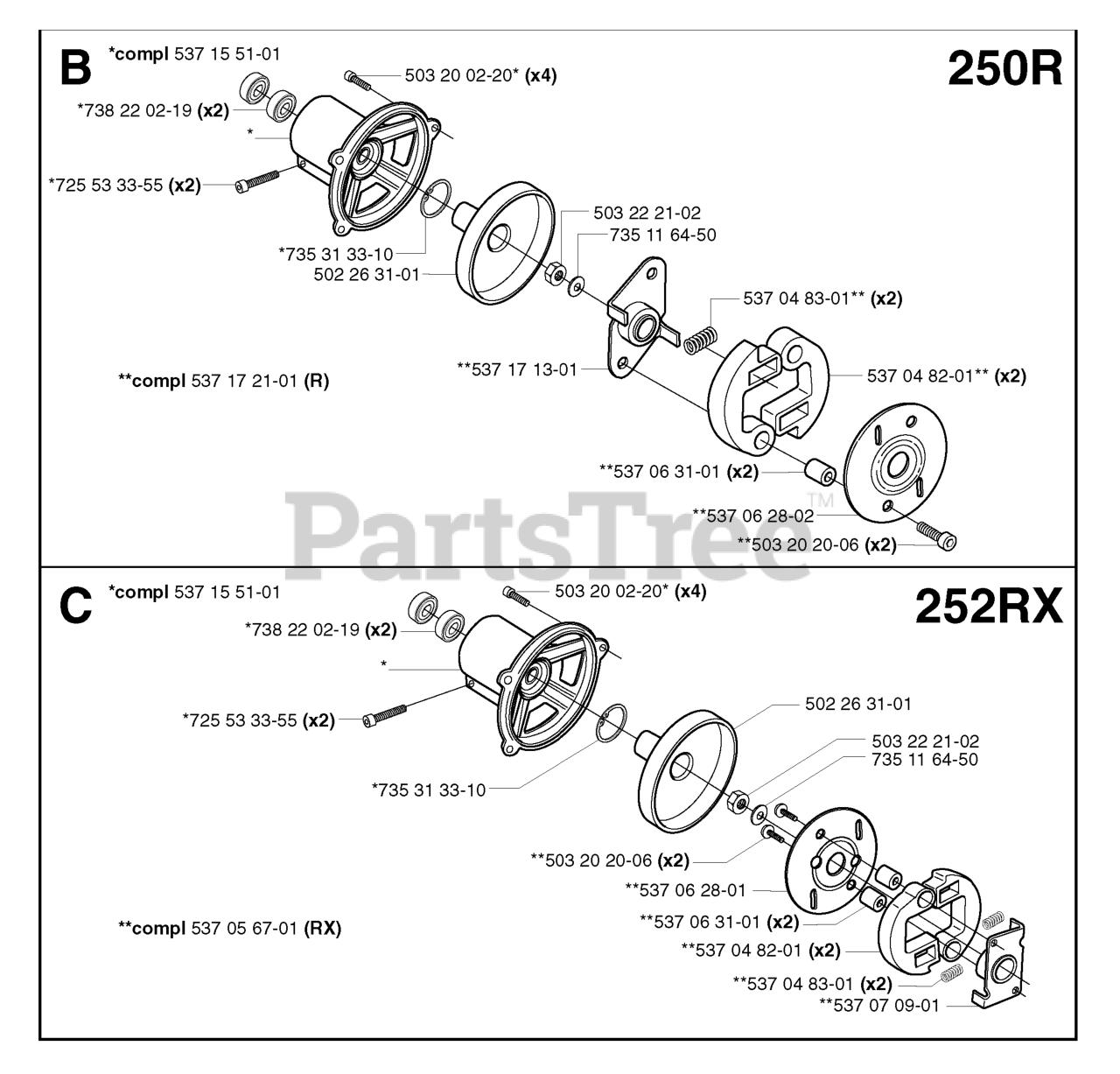

CLUTCH Parts Diagram

  • Title
537 17 13-01

Husqvarna 537171301

CLUTCH CENTER

$

$

Not available

503 20 02-20

$6.49

$

In Stock, Qty 18

0

735 31 33-10

Husqvarna 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

537 06 28-01

$

$

Not available

537 06 28-02

Husqvarna 537062802

BACKING WASHER

$

$

Not available

537 05 67-01

$

$

Not available

503 22 21-02

Husqvarna 503222102

LOCK NUT M8

$3.49

$

Usually ships in 3-10 days

0

537 06 31-01

$

$

Not available

537 04 82-01

Husqvarna 537048201

CLUTCH SHOE

$

$

Not available

503 20 20-06

$

$

Not available

537 17 21-01

Husqvarna 537172101

CLUTCH ASM.

Note: R

$

$

Not available

537 04 83-01

$8.99

$

Usually ships in 3-10 days

0

735 11 64-50

Husqvarna 735116450

Washer, Flat 11/32" x 11/16"

$2.49

$

In Stock, only 1 left!

0

537 07 09-01

$33.45

$

Usually ships in 3-10 days

0

537 15 51-01

Husqvarna 537155101

CLUTCH COVER

$

$

Not available

738 22 02-19

Husqvarna 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0

502 26 31-01

Husqvarna 502263101

CLUTCH DRUM

$

$

Not available

725 53 33-55

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 17

0
