252 RX - Husqvarna String Trimmer (Original) STARTER Parts Diagram

String Trimmer

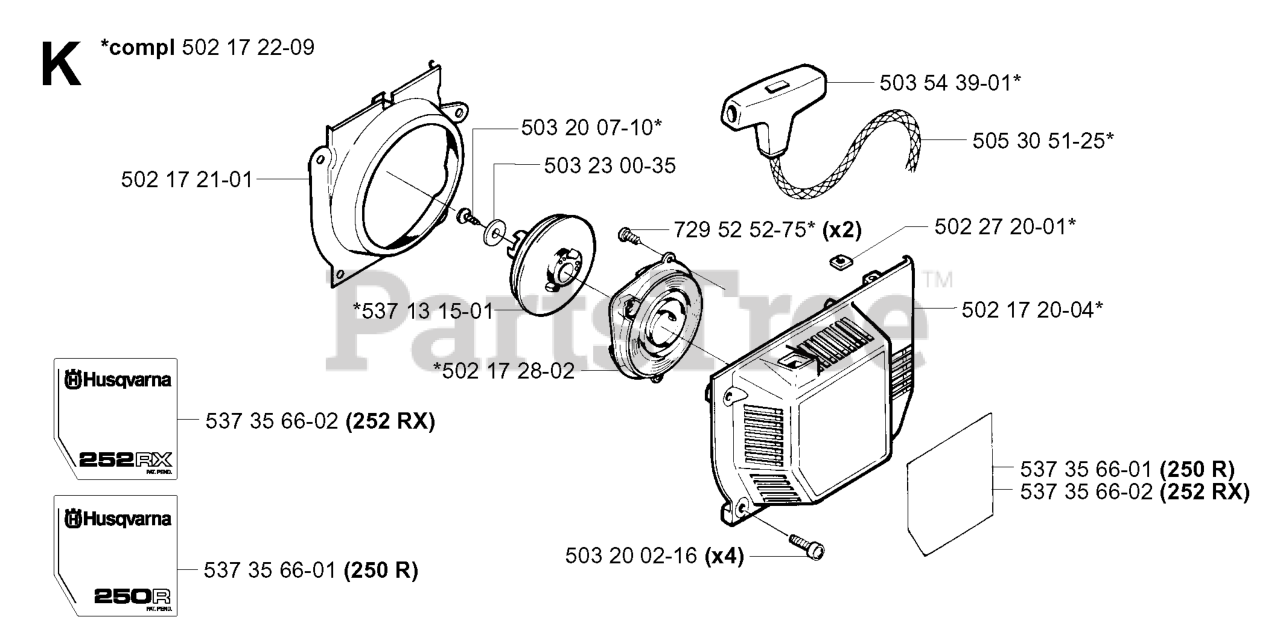

STARTER Parts Diagram

  • Title

503 20 02-16

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

505 30 51-25

Husqvarna 505305125

STARTER ROPE

$9.49

$

In Stock, only 2 left!

0

502 17 21-01

Husqvarna 502172101

Air Conducttor

$

$

Not available

537 13 15-01

Husqvarna 537131501

PULLEY

$10.37

$

Usually ships in 3-10 days

0

537 35 66-01

Husqvarna 537356601

LABEL STARTAPPARAT

Note: 250 R

$

$

Not available

502 17 20-04

Husqvarna 502172004

STARTER HOUSING

$46.15

$

Usually ships in 3-10 days

0

537 35 66-02

Husqvarna 537356602

LABEL STARTAPPARAT

Note: 252 RX

$

$

Not available

503 54 39-01

Husqvarna 503543901

STARTER HANDLE

$11.99

$

In Stock, only 3 left!

0

503 20 07-10

Husqvarna 503200710

SCREW M5 X 10

$6.49

$

In Stock, Qty 20+

0

502 27 20-01

Husqvarna 502272001

Nut

$

$

Not available

502 17 28-02

Husqvarna 502172802

SPRING

$

$

Not available

503 23 00-35

Husqvarna 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 13

0

502 17 22-09

Husqvarna 502172209

STARTER ASSY.

$

$

Not available

729 52 52-75

Husqvarna 729525275

Screw

$

$

Not available
