252 RX - Husqvarna String Trimmer (2006-01) Clutch Drum Parts Diagram

String Trimmer

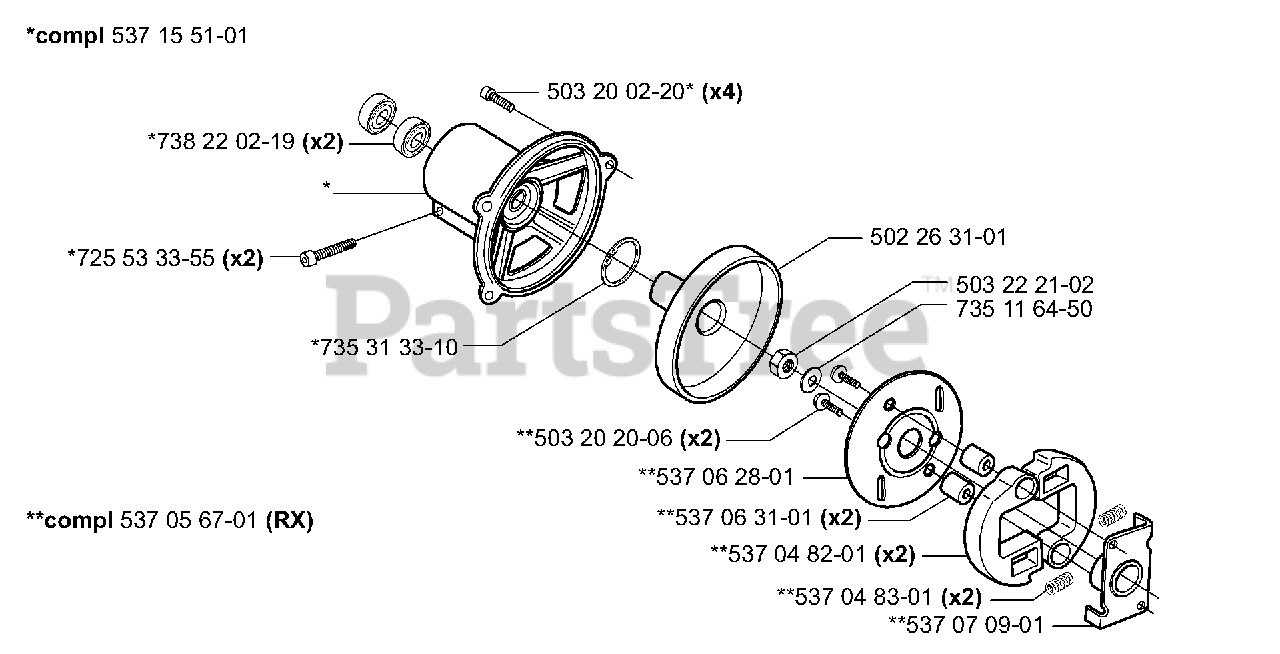

Clutch Drum Parts Diagram

  • Title
502263101

Husqvarna 502263101

CLUTCH DRUM

$

$

Not available

503200220

$6.49

$

In Stock, Qty 18

0

503202006

$

$

Not available

503222102

Husqvarna 503222102

Lock Nut, M8

$3.49

$

Usually ships in 3-10 days

0

537048201

Husqvarna 537048201

CLUTCH SHOE

$

$

Not available

537048301

$8.99

$

Usually ships in 3-10 days

0

537056701

$

$

Not available

537062801

$

$

Not available

537063101

$

$

Not available

537070901

$33.45

$

Usually ships in 3-10 days

0

537155101

Husqvarna 537155101

CLUTCH COVER

$

$

Not available

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

735116450

Husqvarna 735116450

SPRING WASHER 8.4X15

$2.49

$

In Stock, only 1 left!

0

735313310

Husqvarna 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

738220219

Husqvarna 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0
