252 RX - Husqvarna String Trimmer (2006-01) Air Filter/Carburetor Parts Diagram

String Trimmer

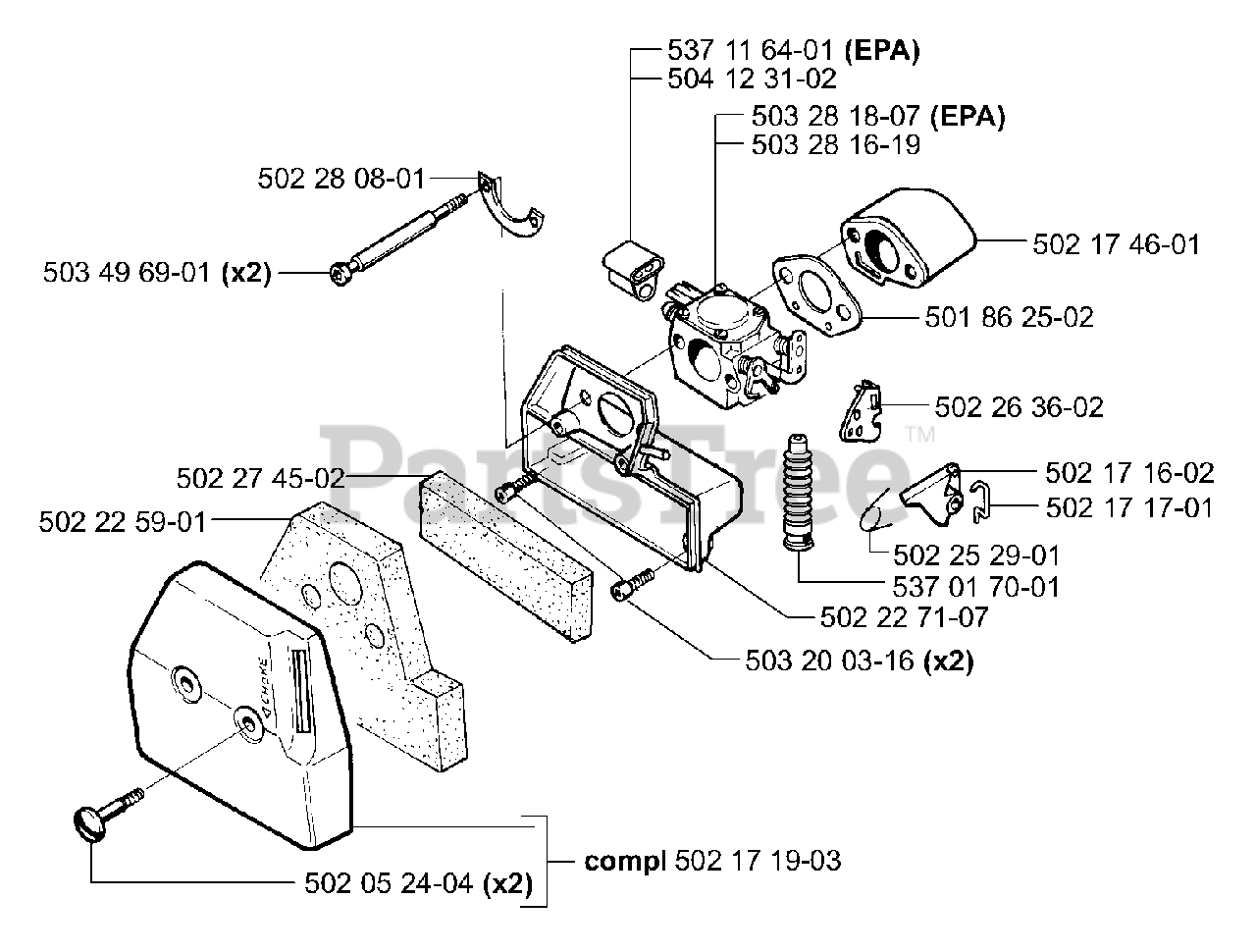

Air Filter/Carburetor Parts Diagram

  • Title
501862502

$

$

Not available

502052404

$

$

Not available

502171602

Husqvarna 502171602

CHOKE CONTROL

$

$

Not available

502171701

$

$

Not available

502171903

Husqvarna 502171903

FILTER COVER

$

$

Not available

502174601

Husqvarna 502174601

CARB SPACER

$

$

Not available

502225901

Husqvarna 502225901

AIR FILTER

$

$

Not available

502227107

Husqvarna 502227107

AIR FILTER HOLDER

$

$

Not available

502252901

$

$

Not available

502263602

$

$

Not available

502274502

$

$

Not available

502280801

Husqvarna 502280801

CHOKE FLAP

$3.49

$

Usually ships in 3-10 days

0

503200316

$6.49

$

In Stock, Qty 20+

0

503281619

Husqvarna 503281619

CARBURETOR HDA 142 WALBRO
(Superseded to 503281016)

$

$

Not available

503281807

Husqvarna 503281807

CARBURETOR

$

$

Not available

503496901

$5.99

$

In Stock, Qty 13

0

504123102

Husqvarna 504123102

SCREW DRIVER GUIDE

$6.91

$

Usually ships in 3-10 days

0

537017001

$

$

Not available

537116401

$

$

Not available
