252-586-190 - White Outdoor Edger, 3hp (1992) Handle & Frame Cover Parts Diagram

Edger, 3hp

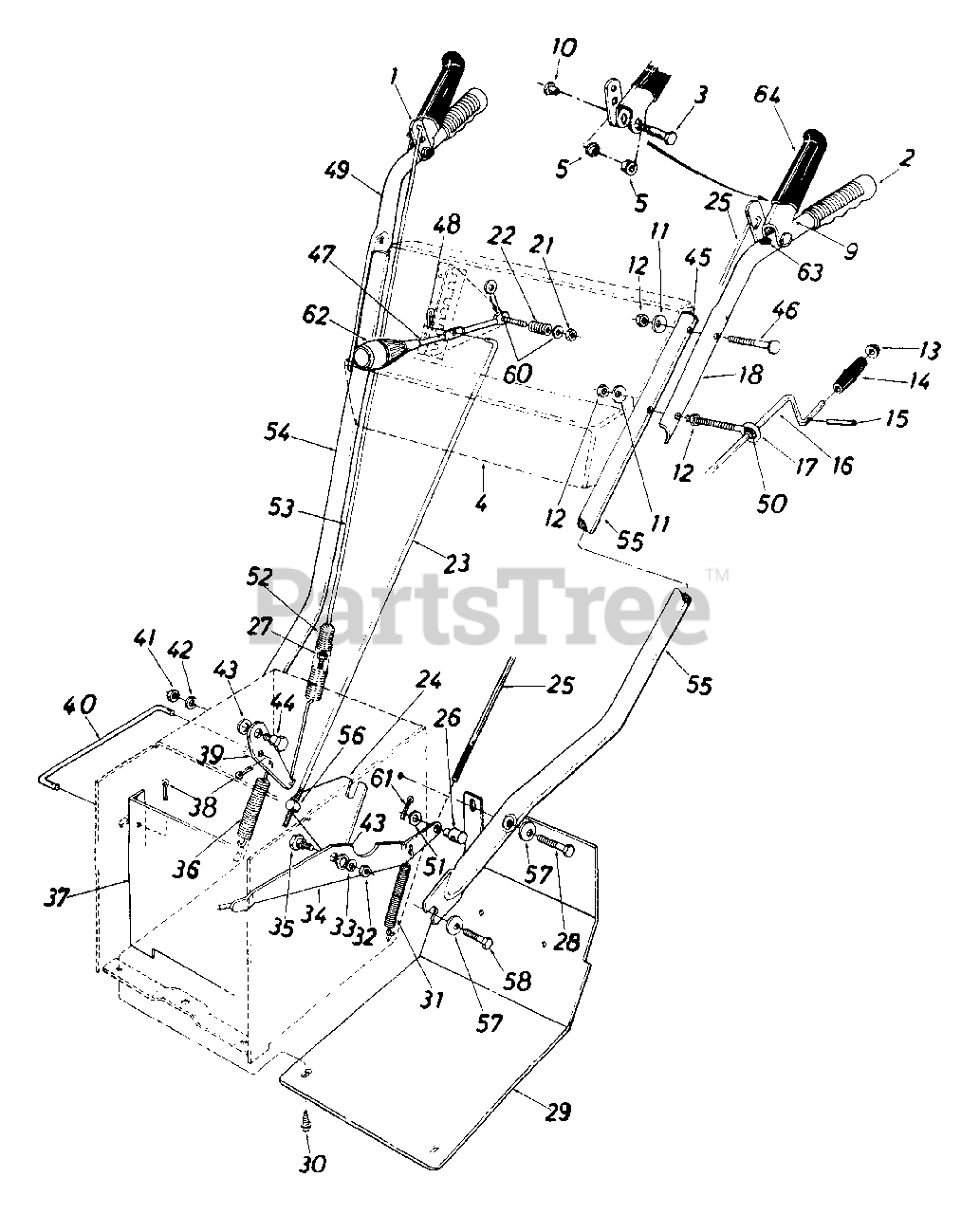

Handle & Frame Cover Parts Diagram

  • Title

1

MTD 05988

Clutch Grip Ass'y. - R.H.

Note: NLA

$

$

Not available

2

MTD 720-0220

Grip - Red

Note: NLA

$

$

Not available

3

MTD 938-0560

Shoulder Bolt .374 Dia. x 1.375" Lg.

$10.99

$

In Stock, only 1 left!

0

4

MTD 784-5451

Handle Panel Ass y.

Note: NLA

$

$

Not available

5

MTD 941-0402

Hex Flange Plastic Bearing .380" I.D.

$

$

Not available

9

MTD 05987

Clutch Grip Ass'y. - L.H.

Note: NLA

$

$

Currently unavailable

10

MTD 938-0561

Shoulder Nut 1/4-20 Thd.

$9.49

$

Usually ships in 3-6 days

0

11

MTD 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

12

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 926-0100

Push Nut 3/8" Rod
(Superseded to 726-0100)

$

$

Not available

14

MTD 720-0201A

Knob 3/8" Rod

$10.99

$

In Stock, Qty 5

0

15

MTD 915-0138

Roll Pin .12 Dia. x .63" Lg.

$4.99

$

In Stock, only 1 left!

0

16

MTD 05980

Chute Crank Ass'y. 39" Lg.

Note: NLA

$

$

Not available

17

MTD 747-0416A

Eye Bolt 5/16-18 x 5.0" Lg.

Note: NLA

$

$

Not available

18

MTD 749-0595

Upper Handle - L.H.

Note: NLA

$

$

Not available

21

MTD 912-0429

Hex Ins. Jam L-Nut 5/16-18 Thd
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

22

MTD 732-0193

Compression Spring .50" O.D. x .88" Lg.

$4.99

$

In Stock, Qty 6

0

23

MTD 747-0356A

Shifting Rod 5/16" x 32.50" Lg.

Note: NLA

$

$

Not available

24

MTD 05898

Shifting Linkage Bracket

Note: NLA

$

$

Not available

25

MTD 747-0452

Lockout Rod .214" Dia. x 36.0" Lg.

Note: NLA

$

$

Not available

26

MTD 711-0736

Adjustment Ferrule 1/4-20

$13.99

$

In Stock, only 2 left!

0

27

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

28

MTD 710-3144

Hex Bolt 3/8-16 x 2.00" Lg.

$4.49

$

In Stock, Qty 20+

0

29

MTD 05899B

Frame Cover

Note: NLA

$

$

Currently unavailable

30

MTD 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

31

MTD 932-0320

Extension Spring .38" O.D. x 3.25" Lg.

$10.99

$

In Stock, only 1 left!

0

32

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

33

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

34

MTD 784-5050

Auger Clutch Bracket Ass'y.

Note: NLA

$

$

Not available

35

MTD 938-0281

Shld. Bolt .625" Dia. x .170
(Superseded to 738-0281)

$

$

Not available

36

MTD 932-0121

Extension Spring .75" O.D. x 4.31" Lg.

$14.99

$

In Stock, only 1 left!

0

37

MTD 05878

Drive Pulley Support Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

38

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 17

0

39

MTD 05501

Drive Clutch Bracket

Note: NLA

$

$

Not available

40

MTD 10080

Drive Clutch Rod

Note: NLA

$

$

Not available

41

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

42

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

43

MTD 936-0219

Bell-Wash. .40" I.D. x 1.13" O.D.

$4.49

$

Usually ships in 3-6 days

0

44

MTD 938-0281

Shld. Bolt .625" Dia. x .170
(Superseded to 738-0281)

$

$

Not available

45

MTD 731-0496

Plastic Plug

Note: NLA

$

$

Not available

46

MTD 710-0487

Carriage Bolt 5/16-18 x 2.0" Lg.

$7.49

$

Usually ships in 3-6 days

0

47

MTD 747-0696

Shift Handle

Note: NLA

$

$

Not available

48

MTD 914-0104

Int. Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

49

MTD 749-0596

Upper Handle - R.H.

Note: NLA

Variations

MTD 749-0596-0637

No Longer Available HANDLE-FOL - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 941-0475

Plastic Bushing

$4.49

$

In Stock, Qty 20+

0

51

MTD 936-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 3 left!

0

52

MTD 732-0184

Extension Spring .75" O.D. x 5.00" Lg.

$25.99

$

Usually ships in 3-6 days

0

53

MTD 747-0154

Lockout Rod .214" Dia. x 32" Lg.

$

$

Not available

54

MTD 749-0418

Lower Handle - R.H.

Note: NLA

$

$

Not available

55

MTD 749-0417

Lower Handle - L.H.

Note: NLA

$

$

Not available

56

MTD 911-0677

Adjustment Ferrule

$17.99

$

In Stock, only 4 left!

0

57

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

58

MTD 710-0623

Hex Wash. Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

60

MTD 936-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 3 left!

0

61

MTD 914-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, Qty 17

0

62

MTD 720-0218

Knob

$19.99

$

Usually ships in 3-6 days

0

63

MTD 935-0199A

Push Cap
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

64

MTD 731-0473

Black Vinyl Grip

$4.49

$

Usually ships in 3-6 days

0
