2518 H (1694925) - Massey Ferguson Lawn Tractor, 18hp Seat Deck Group Parts Diagram

Lawn Tractor, 18hp

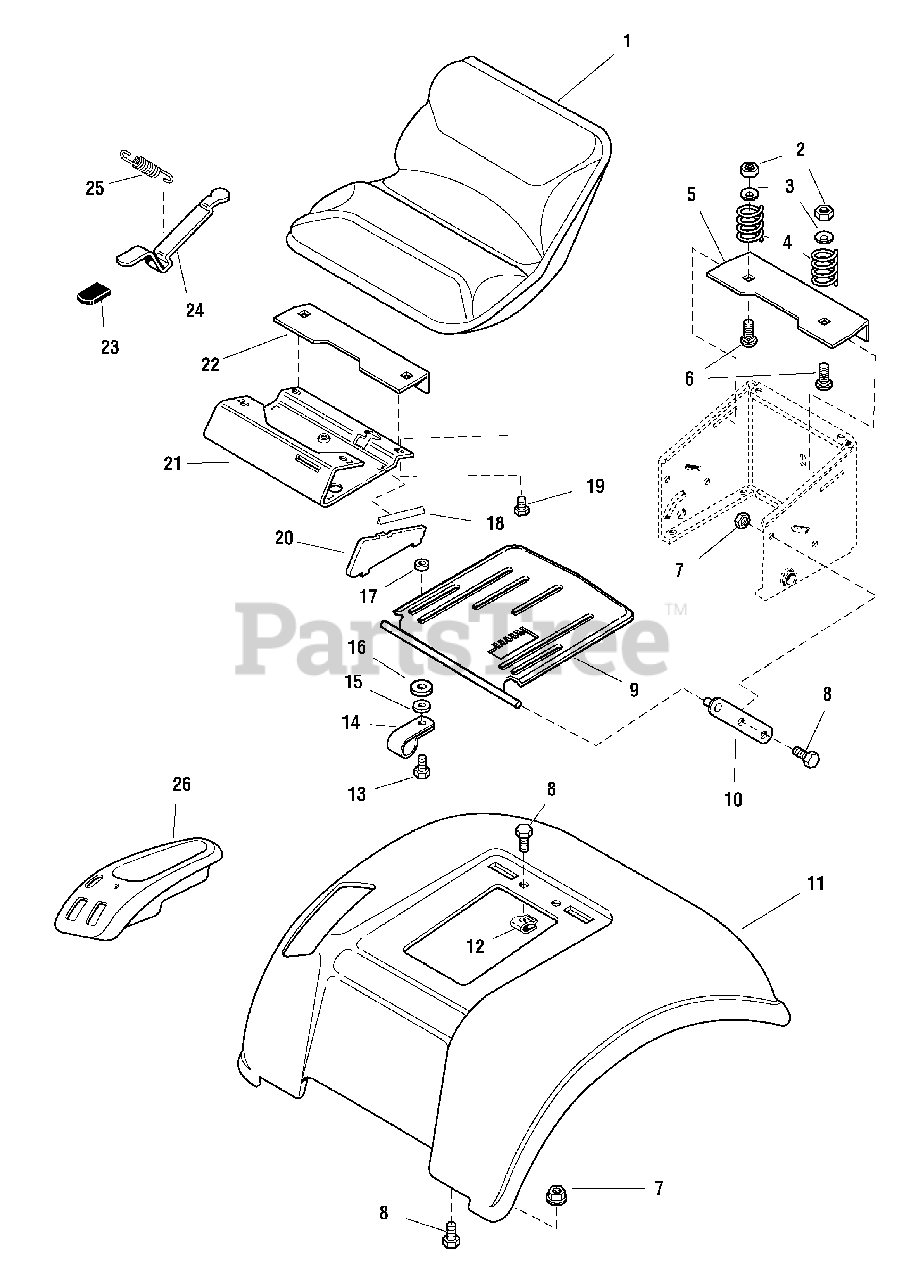

Seat Deck Group Parts Diagram

  • Title

1

Simplicity 1725486SM

SEAT ASSEMBLY

$295.99

$

Usually ships in 2-12 days

0

2

Simplicity 1919438SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1709256SM

WASHER,5/16

$5.99

$

In Stock, only 1 left!

0

4

Simplicity 1704728SM

SPRING, Seat

$9.99

$

In Stock, only 2 left!

0

5

Simplicity 1715768A

PLATE, Spring Support
(Superseded to 1715768ASM)

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

7

Simplicity 1931277SM

NUT, Hex Flange Whiz-Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Simplicity 1930591SM

CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

9

Simplicity 1718985SM

PAN, Seat

$60.99

$

Usually ships in 2-12 days

0

10

Simplicity 1713758SM

BAR, Seat Pivot

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 1714317C

SEAT DECK, Orange
(Superseded to 1714317CSM)

$253.99

$

Usually ships in 2-12 days

0

11

Simplicity 1714317D

SEAT DECK, Red
(Superseded to 1714317DSM)

$182.99

$

Usually ships in 2-12 days

0

12

Simplicity 1935255SM

SPEED NUT, Tinnerman Lug Type, 5/16-18

$3.49

$

In Stock, only 3 left!

0

13

Simplicity 1960086SM

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 5/8

$4.99

$

In Stock, only 2 left!

0

14

Simplicity 1708008SM

CLAMP, Wire (Middle Bolt Only)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

16

Simplicity 1960027SM

WASHER, Plain
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

18

Simplicity 1661348

EDGING, 3"

$

$

Not available

19

Simplicity 1716654SM

BOLT, Shoulder, 5/16-18 x 3/4

$5.49

$

In Stock, only 1 left!

0

20

Simplicity 1714318SM

SIDE PANEL, Seat Slide

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1725527ASM

SLIDE, Seat

$27.99

$

Usually ships in 2-12 days

0

22

Simplicity 1725526A

PlATE, Seat Rear
(Superseded to 1725526ASM)

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 1715047SM

CAP, Seat Adjust

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 1713597SM

LEVER, Seat Latch

$10.99

$

Usually ships in 2-12 days

0

25

Simplicity 2159106SM

SPRING, Extension
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

26

Simplicity 1714542SM

CONTROL POD

$92.99

$

Usually ships in 2-12 days

0
