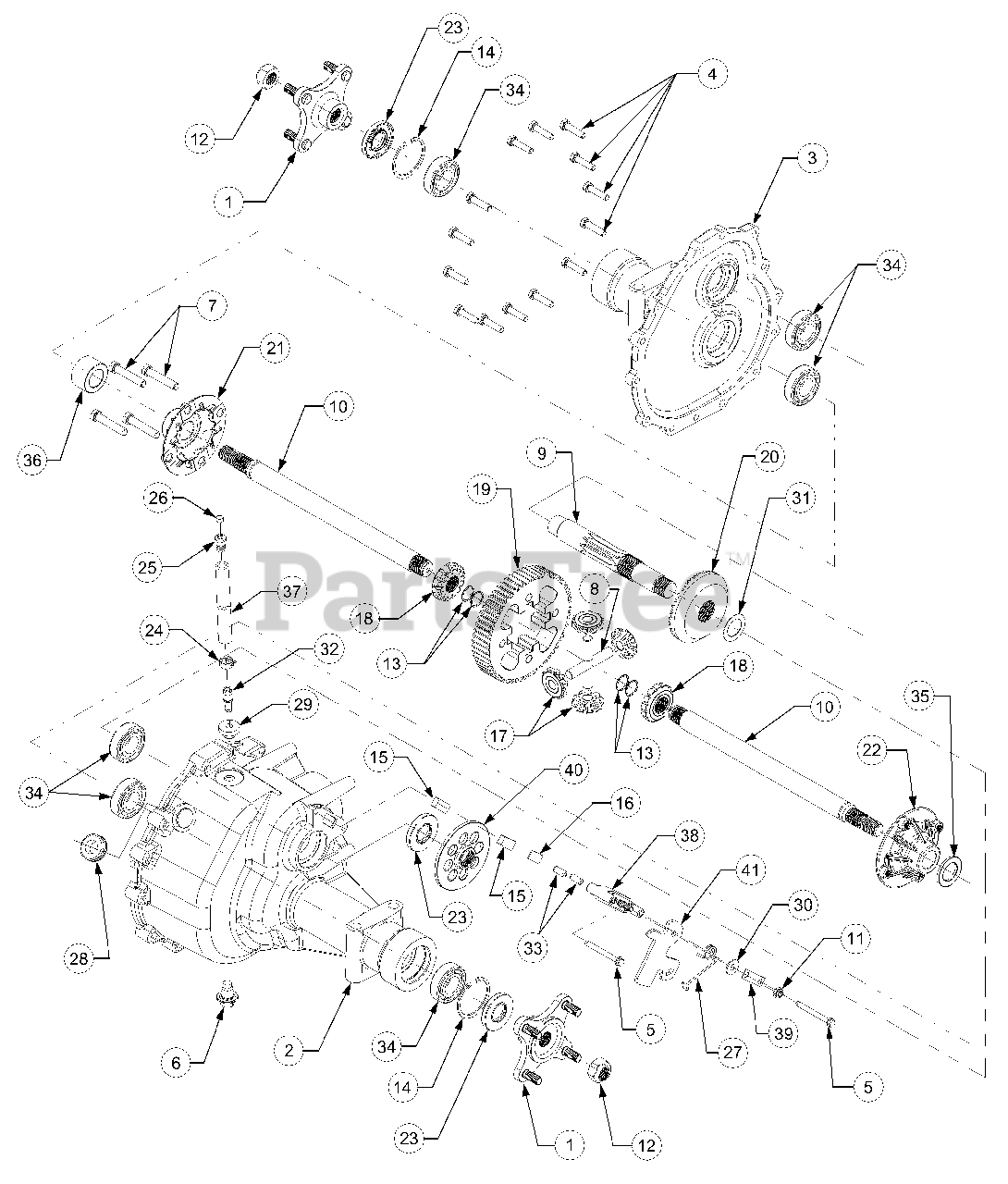

2518-48 (13A-288M100) - Cub Cadet Garden Tractor Hydro Transmission Parts Diagram

Garden Tractor

Hydro Transmission Parts Diagram

  • Title

Cub Cadet 618-04038

Transmission Assembly, Hydro
(Superseded to 918-04038)

Note: Does not include Ref Nos. 1 and 12

$

$

Not available

1

Cub Cadet 618-0579A

Hub Assembly, Wheel
(Superseded to 618P0579B)

$77.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 619-3071

Housing, RH Transmission

$

$

Not available

3

Cub Cadet 619-3072

Housing, LH Transmission

$477.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0573

Screw, Hex Cap Lock, 5/16-18 x 1.25 GR5

$6.49

$

In Stock, Qty 12

0

5

Cub Cadet 710-1206

Screw, Hex Wash Hd. Tapp, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

6

Cub Cadet 710-1633

Screw, Plug, M14 x 1.5 x .827

$14.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-1670

Screw, Hex Cap Lock, 3/8-24 x 2.0 GR5

$

$

Not available

8

Cub Cadet 711-1052A

Shaft, Cross, .50 x 3.005

$33.99

$

In Stock, only 1 left!

0

9

Cub Cadet 711-1385A

Shaft, Output, 9T

$180.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-1666A

Shaft, Axle

$

$

Not available

11

Cub Cadet 712-0273

Nut, Hex Nylon Lock, 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-1329

Nut, Hex, 3/4-16

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 716-0172

Ring, Retaining, .75
(Superseded to 916-0172)

$8.49

$

In Stock, only 3 left!

0

14

Cub Cadet 716-0204

Ring, Retaining

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 717-0678

Pad, Brake
(Superseded to 917-0678)

$7.49

$

In Stock, Qty 5

0

16

Cub Cadet 717-0682

Plate, Puck
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 9

0

17

Cub Cadet 717-1446

Gear, Miter, 10T
(Superseded to 917-1446B)

$16.99

$

In Stock, only 4 left!

0

18

Cub Cadet 717-1447

Gear, Miter, 14T

$

$

Not available

19

Cub Cadet 717-1568

Gear, Differential Spur, 60T
(Superseded to 917-1568)

$153.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 717-3449

Gear, Bevel, 54T

$427.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 719-0375

Housing, Differential w/Thru Holes

$

$

Not available

22

Cub Cadet 719-0378

Housing, Differential w/Threads

$

$

Not available

23

Cub Cadet 721-0523

Seal, Oil, 1.0 x 2.047 x .2755

$15.99

$

In Stock, only 1 left!

0

24

Cub Cadet 726-0324

Clamp, Hose
(Superseded to 926-0324)

$7.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-1480

Vent, Plastic

$15.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-1481

Cap, Plastic Vent

$10.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 732-0925

Spring, Torsion

$9.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 735-0277A

Grommet, Rubber, .75 x 1.063

$10.99

$

In Stock, only 2 left!

0

29

Cub Cadet 735-0279

Grommet, Rubber, .362 x .56

$7.49

$

In Stock, only 2 left!

0

30

Cub Cadet 736-0371

Washer, Flat, .343 x .88 x .062

$4.49

$

In Stock, only 3 left!

0

31

Cub Cadet 736-0615

Washer, Thrust, 1.007 x 1.542 x .03

$8.99

$

In Stock, only 2 left!

0

32

Cub Cadet 737-3092

Fitting, Tube

$14.99

$

In Stock, only 1 left!

0

33

Cub Cadet 741-0343

Pin, Brake Actuating

$10.99

$

In Stock, Qty 7

0

34

Cub Cadet 741-3114

Bearing, Ball (6205-1)

$26.99

$

In Stock, only 3 left!

0

35

Cub Cadet 750-3346

Spacer, Axle, 1.007 x 1.665 x .141

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 750-3358

Spacer, Axle, 1.007 x 1.665 x .989

$21.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 751-0588-8

Tube, Transmission Breather

$12.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 761-0207A

Yoke, Brake

$40.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 761-0208

Bracket, Brake Anti Rotation

$7.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 761-0215

Disc, Brake

$20.99

$

In Stock, only 1 left!

0

41

Cub Cadet 761-3074

Arm, Brake Actuater

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-3958

Sealant, Loctite Black, 5.3 oz. Tube

$

$

Not available

Cub Cadet 737-3120

Drive System Fluid Plus - Quart
(Superseded to 490-000-C051)

$21.99

$

In Stock, Qty 10

0

Cub Cadet 737-3121

Drive System Fluid Plus - Gallon

$77.99

$

In Stock, only 3 left!

0

$

$

Not available
