2518-44 (13B-288L100) - Cub Cadet Garden Tractor Frame And Drawbar Parts Diagram

Garden Tractor

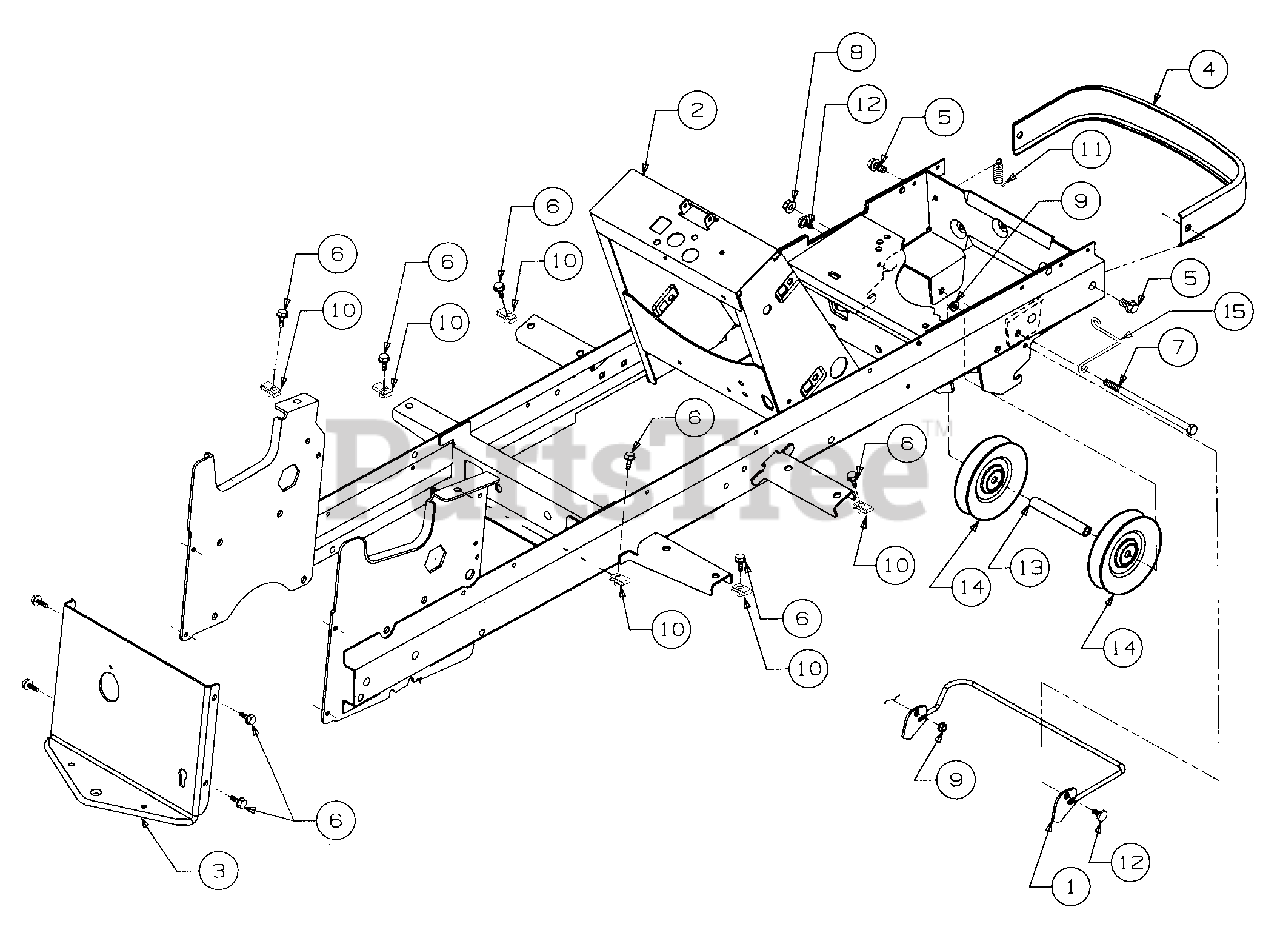

Frame And Drawbar Parts Diagram

  • Title

1

Cub Cadet 603-0132-0716

Rod, Quick Attach
(Superseded to 603-04250-0637)

$71.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0329B-0716

Frame

$

$

Not available

3

Cub Cadet 703-3453-0716

Drawbar
(Superseded to 703-3453-4021)

$199.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20296

Graphic, Trans. Release Lever

$

$

Not available

4

Cub Cadet 703-2577-0716

Bumper
(Superseded to 703-05626-0716)

$

$

Not available

5

Cub Cadet 710-0623

Screw, Hex Wsh Hd Tapp 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-1260A

Screw, Hex Wsh Hd Tap 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3261

Screw, Hex Cap, 3/8-16 x 7.0

$13.99

$

In Stock, only 2 left!

0

8

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 726-0211

U-Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 732-3002

Spring, Latch
(Superseded to 932-3002)

$9.49

$

In Stock, only 4 left!

0

12

Cub Cadet 738-0255

Bolt, Shoulder
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

13

Cub Cadet 750-3114A

Spacer, Idler, .407 x .720 x 4.38

$19.99

$

In Stock, only 1 left!

0

14

Cub Cadet 756-3045

Pulley, Idler
(Superseded to 956-3045A)

$57.99

$

In Stock, Qty 6

0

15

Cub Cadet 732-0970

Belt Guide
(Superseded to 932-0970)

$11.99

$

Usually ships in 3-6 days

0
