2516 H (1693105) - Massey Ferguson 44" Lawn Tractor, 16hp 44" Mower Deck - Housing, Arbors & Blades Parts Diagram

44" Lawn Tractor, 16hp

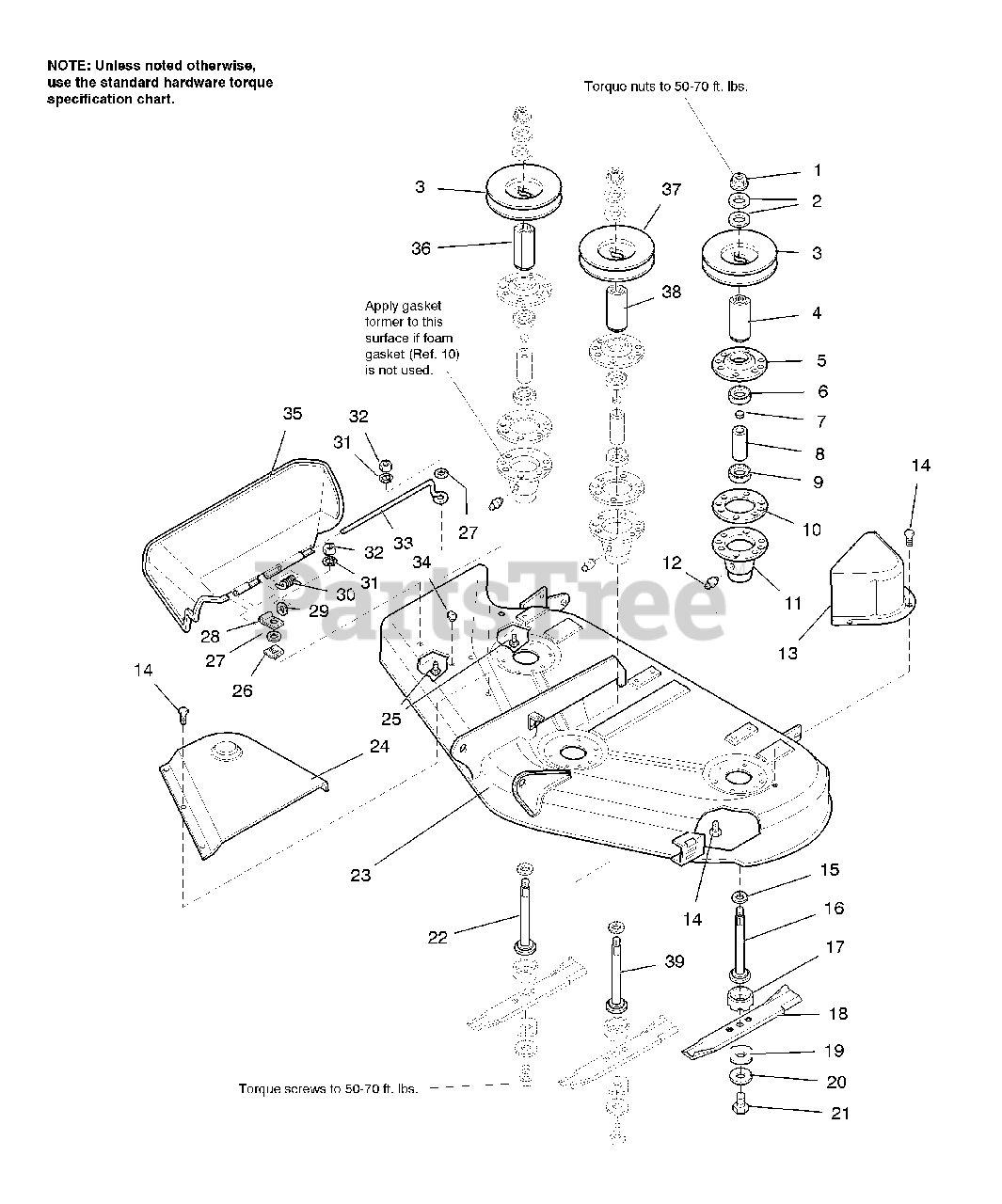

44" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Simplicity 1714419SM

NUT, Hex, Flange, 9/16-8

Note: Torque nuts to 50-70 ft. lbs.

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 1713675SM

WASHER, Belleville

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1713161SM

PULLEY,

Note: RH Arbor & LH Arbor

$20.99

$

In Stock, Qty 20+

0

4

Simplicity 1713616SM

HUB, Adapter (LH)

$24.99

$

In Stock, Qty 20+

0

5

Simplicity 1655729ASM

COVER, Arbor Housing

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 2108202SM

BEARING, Upper

$11.99

$

In Stock, Qty 20+

0

7

Simplicity 1715724SM

SPACER, Sleeve, Upper Bearing

$9.49

$

In Stock, Qty 20+

0

8

Simplicity 1732544SM

SPACER, Arbor, Internal

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1705897SM

BEARING, Lower

$8.49

$

In Stock, Qty 20+

0

10

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 1713338ASM

HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting

Note: (Includes Ref. No. 12)

$41.99

$

In Stock, Qty 20+

0

12

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1720560SM

COVER, Arbor (LH)
(Superseded to 1720560ASM)

$90.99

$

In Stock, only 1 left!

0

14

Simplicity 1664847SM

CAPSCREW, Taptite Hex Washer Hd, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1713619SM

WASHER

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1713612SM

SHAFT, Arbor (LH)

$

$

Not available

17

Simplicity 1713196SM

SHIELD, Grass, Lower

$9.49

$

In Stock, Qty 20+

0

18

Simplicity 1704100ASM

BLADE, Mower, 16-1/8
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

19

Simplicity 1713089SM

WASHER, Hex

$4.99

$

In Stock, Qty 20+

0

20

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

21

Simplicity 2823471SM

CAPSCREW, Hex, Hd., 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1713609SM

SHAFT, Arbor (RH)

$30.99

$

In Stock, Qty 20+

0

23

Simplicity 1686816SM

HOUSING ASSEMBLY, Orange

$446.99

$

Usually ships in 2-12 days

0

23

Simplicity 1687138SM

HOUSING ASSEMBLY, Black
(Superseded to 1686816SM)

$446.99

$

Usually ships in 2-12 days

0

24

Simplicity 1715673SM

COVER, Arbor (RH)

$38.99

$

In Stock, only 1 left!

0

25

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 2 left!

0

26

Simplicity 1960518SM

NUT, Push On
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1960353SM

WASHER, Plain, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

28

Simplicity 1704873SM

CLAMP

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 8

0

30

Simplicity 1723938SM

SPRING, Deflector Retaining

$

$

Not available

31

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

32

Simplicity 1916622SM

NUT, Hex, 1/4-20, UNC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 20+

0

34

Simplicity 1705115SM

PLUG, Hole

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, only 2 left!

0

36

Simplicity 1713613SM

HUB, Pulley (RH)

$15.99

$

In Stock, Qty 20+

0

37

Simplicity 1718021SM

PULLEY, Arbor (Center)

$70.99

$

Usually ships in 2-12 days

0

38

Simplicity 1713614SM

HUB, Pulley (Center)

$21.99

$

In Stock, only 1 left!

0

39

Simplicity 1713610SM

SHAFT, Arbor (Center)

$

$

Not available
