251412-0214-XX - Briggs & Stratton Horizontal Engine Cylinder,Crankcase,Piston Parts Diagram

Horizontal Engine

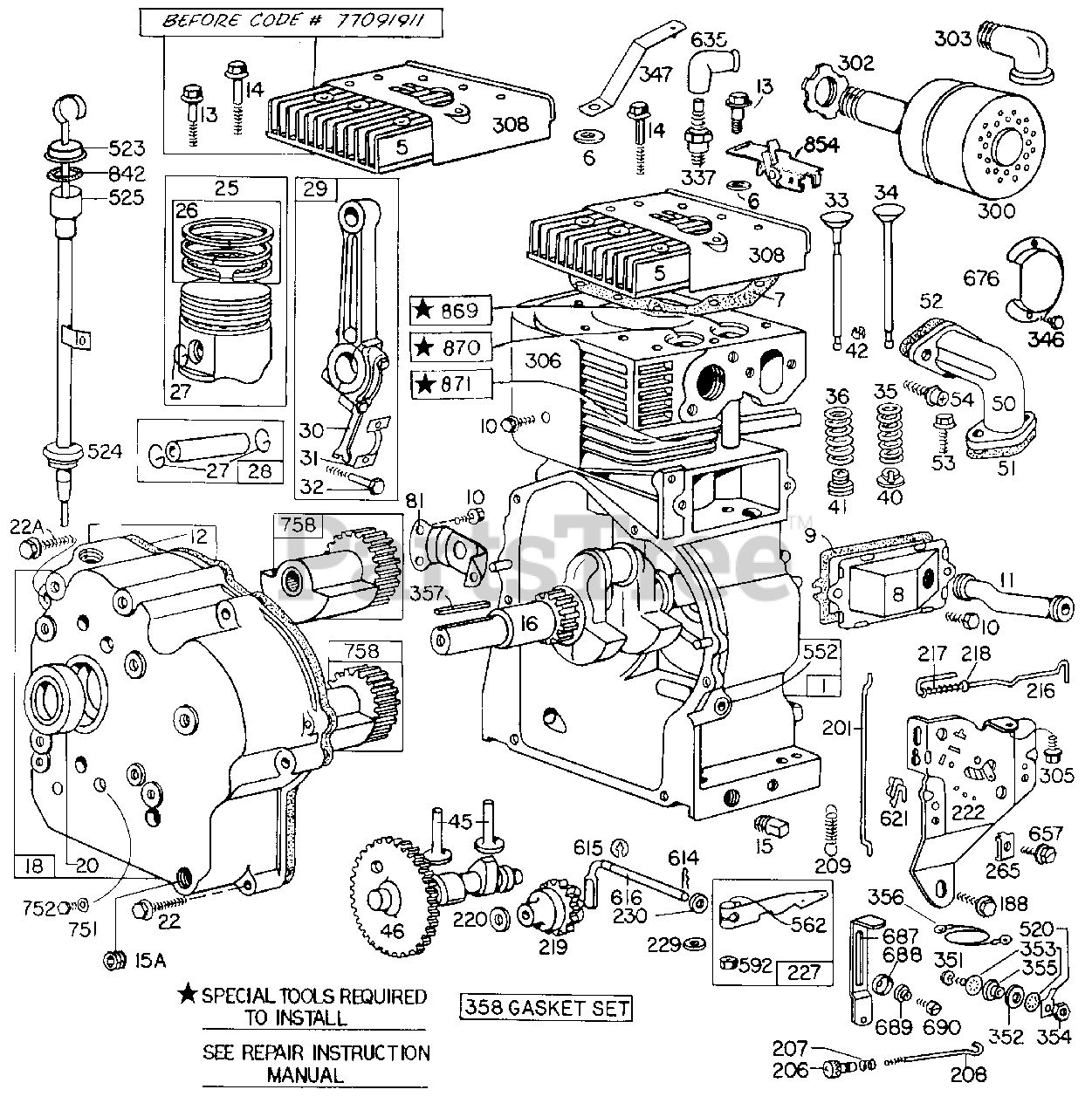

Cylinder,Crankcase,Piston Parts Diagram

  • Title

1

Briggs & Stratton 391750

Cylinder Assembly

$495.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 212300

Head-Cylinder
(Superseded to 691154)

$166.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 271075

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Gasket Set-Part No. 391834

$9.49

$

In Stock, only 4 left!

0

8

Briggs & Stratton 391575

Breather Assembly
(Superseded to 495736)

$42.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 391834

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280112

Tube-Breather

$11.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 270856

Gasket-Crankcase Cover 1/64" Thick
(Superseded to 692281)

Note: Included in Gasket Set-Part No. 391834

$7.49

$

In Stock, only 2 left!

0

12

Briggs & Stratton 270857

Gasket, Crankcase (.005" Thick)
(Superseded to 272219)

Note: Included in Gasket Set-Part No. 391834

$

$

Not available

12

Briggs & Stratton 270858

Gasket, Crankcase (.009" Thick)
(Superseded to 272220)

Note: Included in Gasket Set-Part No. 391834

$14.99

$

In Stock, Qty 6

0

13

Briggs & Stratton 93776

Stud, Cylinder Head
(Superseded to 691690)

Note: Used Before Code Date 77091911

$

$

Not available

14

Briggs & Stratton 93723

Screw, Machine Hex (3" Long)
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 93781

Stud, Cylinder Head (3 15/16" Long)
(Superseded to 691690)

$

$

Not available

15A

Briggs & Stratton 93418

Plug, Pipe (Flush)
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 91084

Plug, Pipe (Standar (3/8")
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 261326

Crankshaft
(Superseded to 491645)

$285.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

Seal, Oil (Used In Crankcase Covers)
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22A

Briggs & Stratton 93764

Screw-Hex (2 1/8" Long)
(Superseded to 694966)

$5.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

22

Briggs & Stratton 93730

Stud
(Superseded to 691695)

$6.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391285

Piston/Ring Kit (Std.)
(Superseded to 499956)

$

$

Not available

25

Briggs & Stratton 391287

Piston/Ring Kit (.010" O.S.)

$

$

Not available

25

Briggs & Stratton 391288

Piston/Ring Kit (.020" O.S.)
(Superseded to 499958)

$158.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 391289

Piston/Ring Kit (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston Std (Std.)

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston 005 (.005 O.S.)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 391816

Rod Assembly-Connecting
(Superseded to 490348)

$50.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 222329

Dipper-Connecting Rod
(Superseded to 690405)

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222299

Lock-Screw

$

$

Not available

32

Briggs & Stratton 92909

Screw, Hex Head Cap
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 261185

Valve-Exhaust
(Superseded to 691796)

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261184

Valve-Intake

$20.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Keeper, Valve (2)
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 261183

Tappet-Valve
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212039

Gear-Cam

Note: Used Before Code Date 77080100

$105.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212296

Gear-Cam
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 211931

Elbow-Intake

$

$

Not available

51

Briggs & Stratton 270267

Gasket-Intake Elbow
(Superseded to 692214)

Note: Included in Carburetor Overhaul Kit-Part No. 391071. Included in Gasket Set-Part No. 391834

$4.99

$

In Stock, only 2 left!

0

52

Briggs & Stratton 270872

Gasket, Carburetor
(Superseded to 498869)

Note: Included in Carburetor Overhaul Kit-Part No. 391071. Included in Gasket Set-Part No. 391834

$5.49

$

In Stock, Qty 11

0

53

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, only 1 left!

0

81

Briggs & Stratton 222407

Retainer-Counterweight
(Superseded to 691172)

$9.99

$

In Stock, only 1 left!

0

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

188

Briggs & Stratton 93623

Screw-Flywheel Guard Mtg.

$3.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260478

Spring, Link Used On Mechanical Governor
(Superseded to 690545)

$

$

Not available

206

Briggs & Stratton 230149

Nut-Gov Adjusting (#5-44 Thread)

$35.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring-Governor Control Rod
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 231062

Rod-Governor Control

$6.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260695

Spring-Governor
(Superseded to 796260)

$4.99

$

In Stock, Qty 15

0

216

Briggs & Stratton 261289

Link-Choke

$1.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 261119

Spring-Link
(Superseded to 691267)

$

$

Not available

218

Briggs & Stratton 222352

Washer-Flat
(Superseded to 690407)

$

$

Not available

219

Briggs & Stratton 391737

Gear-Governor

$38.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 221551

Washer, Steel
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

222

Briggs & Stratton 222267

Anchor-Spring Return

$8.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 261137

Spring-Throttle Return
(Superseded to 690457)

$11.99

$

In Stock, Qty 9

0

222

Briggs & Stratton 391633

Plate-Gov. Control

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 299165

Governor Control Le (For 3/16" Dia. Crank)

Note: Used Before Code Date 75061612

$13.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 391732

Governor Control Le (For 1/4" Dia. Crank)

Note: Used After Code Date 75061312

$13.99

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 220680

Washer, Steel
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 221559

Washer (3/16" Inside Dia.)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

300

Briggs & Stratton 391569

Muffler-Exhaust
(Superseded to 391569S)

$51.99

$

Usually ships in 2-12 days

0

302

Briggs & Stratton 91310

Locknut-Muffler
(Superseded to 691808)

$7.99

$

In Stock, only 3 left!

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

306

Briggs & Stratton 222744

Shield-Cylinder
(Superseded to 690489)

$19.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 222725

Cover-Cylinder Head
(Superseded to 690491)

$11.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 29693

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 392588

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

347

Briggs & Stratton 298926

Sparkplug Stop Sw

Note: Used Before Code Date 77091911

$34.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 393242

Switch-Stop
(Superseded to 690633)

$11.99

$

Usually ships in 2-12 days

0

351

Briggs & Stratton 93735

Screw-Slotted

$3.49

$

Usually ships in 2-12 days

0

352

Briggs & Stratton 66068

Washer-Fiber

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

355

Briggs & Stratton 66554

Washer-Insulating

$5.49

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 391602

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

357

Briggs & Stratton 91540

Key, Pulley (1/4")
(Superseded to 691483)

$6.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 391834

Gasket-Set
(Superseded to 492653)

$54.99

$

In Stock, only 2 left!

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 391577

Cap And Dipstick-Oil Filler

Note: Used Before Code Date 76083112

$4.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 392295

Cap And Dipstick-Oil Filler
(Superseded to 490665)

$

$

Not available

524

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 391579

Tube-Oil Fill

Note: Used Before Code Date 76083112

$

$

Not available

525

Briggs & Stratton 392283

Tube-Oil Filler
(Superseded to 496517)

Note: Used After Code Date 76083012

$45.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 230843

Bushing-Gov Crank (3/16" I.d.)

Note: Used Before Code Date 75061612

$5.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 231056

Bushing, Shaft (1/4" I.d.)
(Superseded to 491893)

Note: Used After Code Date 75061312

$107.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231057

Crank, Governor (1/4" Dia.)
(Superseded to 692015)

Note: Used After Code Date 75061312

$16.99

$

In Stock, only 2 left!

0

616

Briggs & Stratton 231070

Shaft-Gov Gear (3/16" Dia.)

Note: Used Before Code Date 75061612

$9.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

$

$

Not available

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

657

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

687

Briggs & Stratton 298957

Slide-Friction Control

$19.99

$

Usually ships in 2-12 days

0

688

Briggs & Stratton 221766

Spring-Friction
(Superseded to 690395)

$8.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 260847

Spring-Friction
(Superseded to 690529)

$9.99

$

Usually ships in 2-12 days

0

690

Briggs & Stratton 92484

Screw-Slotted 10-32 X 1/2"

$3.99

$

Usually ships in 2-12 days

0

751

Briggs & Stratton 22355

Washer-Seal
(Superseded to 690258)

$6.99

$

Usually ships in 2-12 days

0

752

Briggs & Stratton 93554

Screw-Plug
(Superseded to 690304)

$3.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 391481

Counterweight And Bearing Assembly
(Superseded to 691369)

$33.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270933

Seal-Oil Filler Cap

$

$

Not available

854

Briggs & Stratton 392884

Stop-Switch

$7.49

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211661

Seat-Valve (Intake)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 210940

Seat-Exhaust Valve (Standard)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

No Nomenclature

Note: 231218 or 230655 See Repair Manual

$

$

Not available
