2512 G (1692492) - Massey Ferguson 36" Lawn Tractor, 12.5hp 36" Mower Deck - Deck, Arbor & Blades Parts Diagram

36" Lawn Tractor, 12.5hp

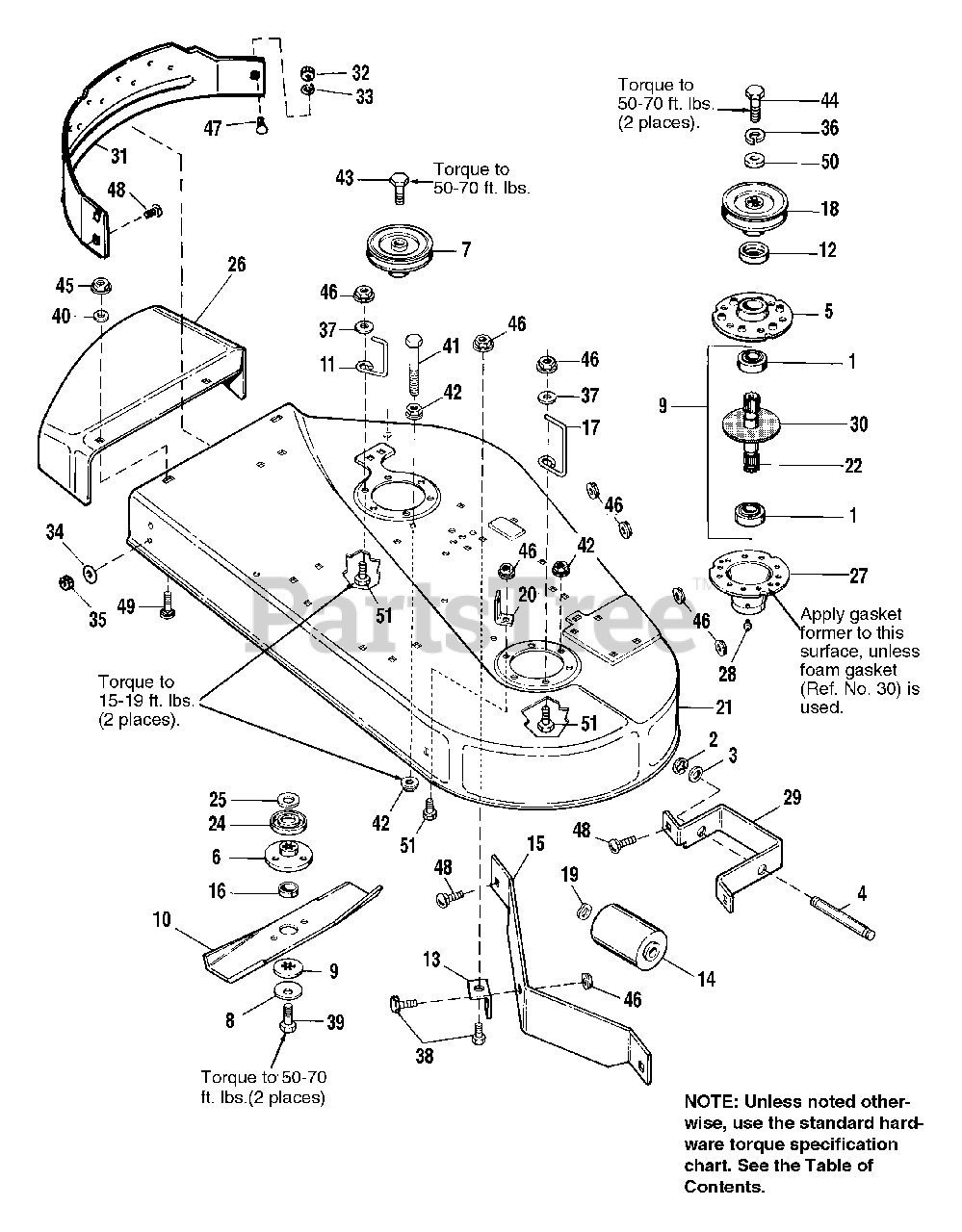

36" Mower Deck - Deck, Arbor & Blades Parts Diagram

  • Title

1

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

2

Simplicity 2827793SM

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

3

Simplicity 2860171SM

WASHER, Nylon

$4.49

$

In Stock, Qty 11

0

4

Simplicity 1603205SM

SHAFT, Roller, Center

$29.99

$

Usually ships in 2-12 days

0

5

Simplicity 1655729ASM

ARBOR HOUSING, Top

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 1655777SM

ADAPTOR, Blade

$25.99

$

In Stock, Qty 20+

0

7

Simplicity 1655839SM

PULLEY ASSY.
(Superseded to 1655839ASM)

$82.99

$

Usually ships in 2-12 days

0

8

Simplicity 1656916SM

WASHER, Cup

$7.49

$

In Stock, Qty 20+

0

9

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

10

Simplicity 1657589ASM

BLADE, 36"

$25.99

$

In Stock, Qty 5

0

11

Simplicity 1657660SM

STOP, Belt

$22.99

$

Usually ships in 2-12 days

0

12

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

13

Simplicity 1668500A

BRACKET, Mower
(Superseded to 1668500SM)

$19.99

$

In Stock, only 1 left!

0

14

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

15

Simplicity 1671577SM

BAFFLE
(Superseded to 1671577ASM)

$

$

Not available

16

Simplicity 1672132SM

COLLAR, Arbor

$12.99

$

In Stock, only 3 left!

0

17

Simplicity 1673106SM

STOP, Belt

$16.99

$

In Stock, only 2 left!

0

18

Simplicity 1673109ASM

PULLEY ASSY.

$109.99

$

In Stock, only 1 left!

0

19

Simplicity 1678100SM

WASHER, Wave

$7.99

$

Usually ships in 2-12 days

0

20

Simplicity 1678339

BRACKET, Lift

$

$

Not available

21

Simplicity 1685102SM

HOUSING, 36", Orange

Note: (Incl. safety decals)

$

$

Not available

21

Simplicity 1685102SM

HOUSING, 36", Black,

Note: (Incl. safety decals)

$

$

Not available

22

Simplicity 1685245SM

SHAFT, Arbor

Note: (Incl. Ref. No. 16)

$74.99

$

In Stock, Qty 6

0

?23

Simplicity 1685251SM

SHAFT & BEARING ASSY.

Note: (Incl. Ref. Nos. 1 (Qty. 2), 16, 22 & 30)

$99.99

$

In Stock, Qty 13

0

24

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

25

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 1702190A

DEFLECTOR, Orange
(Superseded to 1702190ASM)

$112.99

$

Usually ships in 2-12 days

0

26

Simplicity 1702190A

DEFLECTOR, Black
(Superseded to 1702190ASM)

$112.99

$

Usually ships in 2-12 days

0

27

Simplicity 1703273ASM

ARBOR HOUSING ASSY., Bottom

Note: (Incl. Ref. No. 28)

$38.99

$

In Stock, Qty 20+

0

28

Simplicity 1704314SM

GREASE FITTING
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

29

Simplicity 1705953SM

BRACKET, Center, Roller
(Superseded to 1705953ASM)

$16.99

$

Usually ships in 2-12 days

0

30

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

31

Simplicity 1707992SM

BAFFLE, Mulching

Note: Optional

$40.99

$

Usually ships in 2-12 days

0

32

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

Note: Optional

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

Note: Optional

$3.99

$

In Stock, Qty 11

0

34

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

Note: Optional

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

Note: Optional

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1919326SM

WASHER, 11/32

$4.49

$

In Stock, Qty 9

0

38

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

39

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1
(Superseded to 703579)

Note: Torque to 50-70 ft.lbs. (2 places)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1924940SM

WASHER, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

41

Simplicity 1925690SM

CAPSCREW, Hex Hd., 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

42

Simplicity 1927557SM

NUT, Hex , Flange, Whizlock, 5/16-18

Note: Torque to 15-19 ft.lbs. (2 places)

$4.99

$

Usually ships in 2-12 days

0

43

Simplicity 1930584SM

CAPSCREW, Hex Hd., 7/16-14 x 2-3/4

Note: Torque to 50-70 ft.lbs.

$7.99

$

Usually ships in 2-12 days

0

44

Simplicity 1930585SM

CAPSCREW, Hex Hd., 7/16-14 x 3-1/2

Note: Torque to 50-70 ft.lbs.

$7.49

$

In Stock, only 2 left!

0

45

Simplicity 1931211SM

NUT, Hex, Flange, Whizlock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

46

Simplicity 1931277SM

NUT, Hex, Flange, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

47

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

48

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

Note: Optional

$3.49

$

In Stock, Qty 20+

0

49

Simplicity 1931348SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

50

Simplicity 1933263SM

WASHER, 29/64 x 1-1/4 x 1/4
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

51

Simplicity 1960373SM

SCREW, Hex, Wash. Hd., Taptite, 5/16-18 x 1
(Superseded to 704146)

Note: Torque to 15-19 ft.lbs. (2 places)

$3.99

$

In Stock, Qty 20+

0

Simplicity 1686609SM

LEAF SHREDDER KIT (Optional. Not Shown. Used with optional mulching baffle, Ref. No. 31)
(Superseded to 1686609YP)

Note: Incl. Qty. 8-1707684, leaf shredders, Qty. 8-1919438, lock nuts.

$234.99

$

Usually ships in 2-12 days

0
