2510 - Weed Eater Blower, Electric Blower Assembly Parts Diagram

Blower, Electric

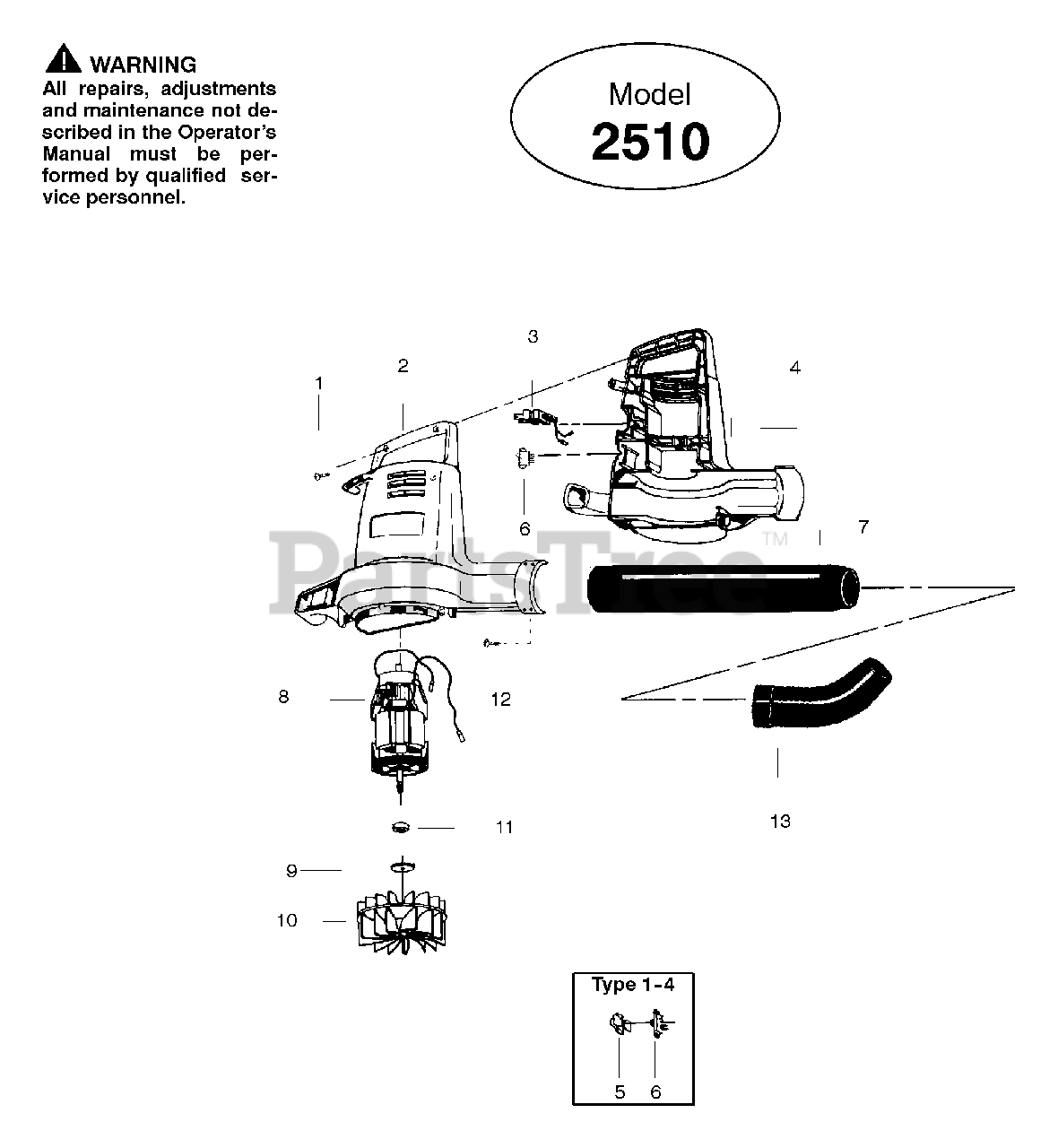

Blower Assembly Parts Diagram

  • Title

1

Poulan 530016317

Screw

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 530351450

Housing Set Type 1

$

$

Not available

2

Poulan 530401898

Housing Set Type 2

$

$

Not available

2

Poulan 530403264

Housing Set Type 3 & 4

$

$

Not available

2

Poulan 530404158

Housing Set Type 5

$

$

Not available

3

Poulan 530401842

Wire Harness Type 1 & 2

Note: (Incls. Switch)

$

$

Not available

3

Poulan 530403269

Wire Harness Type 3 & 4

Note: (Incls. Switch)

$

$

Not available

3

Poulan 530404161

Wire Harness Type 5
(Superseded to 545124201)

Note: (Incls. Switch)

$

$

Not available

4

Poulan 530400089

Pad (Type 1 & 2)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 530401008

Switch Cover (Type 1-4 ONLY)

$0.99

$

Usually ships in 3-10 days

0

6

Poulan 530351456

Switch Type 1-4

$

$

Not available

6

Poulan 530404204

Switch Type 5

$

$

Not available

7

Poulan 530036434

Blower Tube Type 1

$

$

Not available

7

Poulan 530401884

Blower Tube Type 2-5

$

$

Not available

8

Poulan 530351460

Motor Ass'y. Type 1 & 2

$

$

Not available

8

Poulan 530403267

Motor Ass'y. Type 3

$

$

Not available

8

Poulan 530071766

Motor Ass'y. Type 4 & 5

Note: (Incl. #11)

$54.99

$

Usually ships in 3-10 days

0

9

Poulan 530400897

Washer

$

$

Not available

10

Poulan 530351451

Impeller

$

$

Not available

11

Poulan 530404164

Spacer (Type 4 & 5)

$

$

Not available

12

Poulan 530015994

Screw (Type 2-5)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530351455

Concentrator Nozzle Type 1
(Superseded to 530094968)

$

$

Not available

13

Poulan 530403682

Concentrator Nozzle Type 2-5

Note: (incl. #7)

$

$

Not available

Poulan 545117523

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530402541

Warning Decal

Note: Not Shown

$2.49

$

In Stock, only 1 left!

0
