251-502-190 - White Outdoor Edger, 2hp (1991) Edger Assembly Parts Diagram

Edger, 2hp

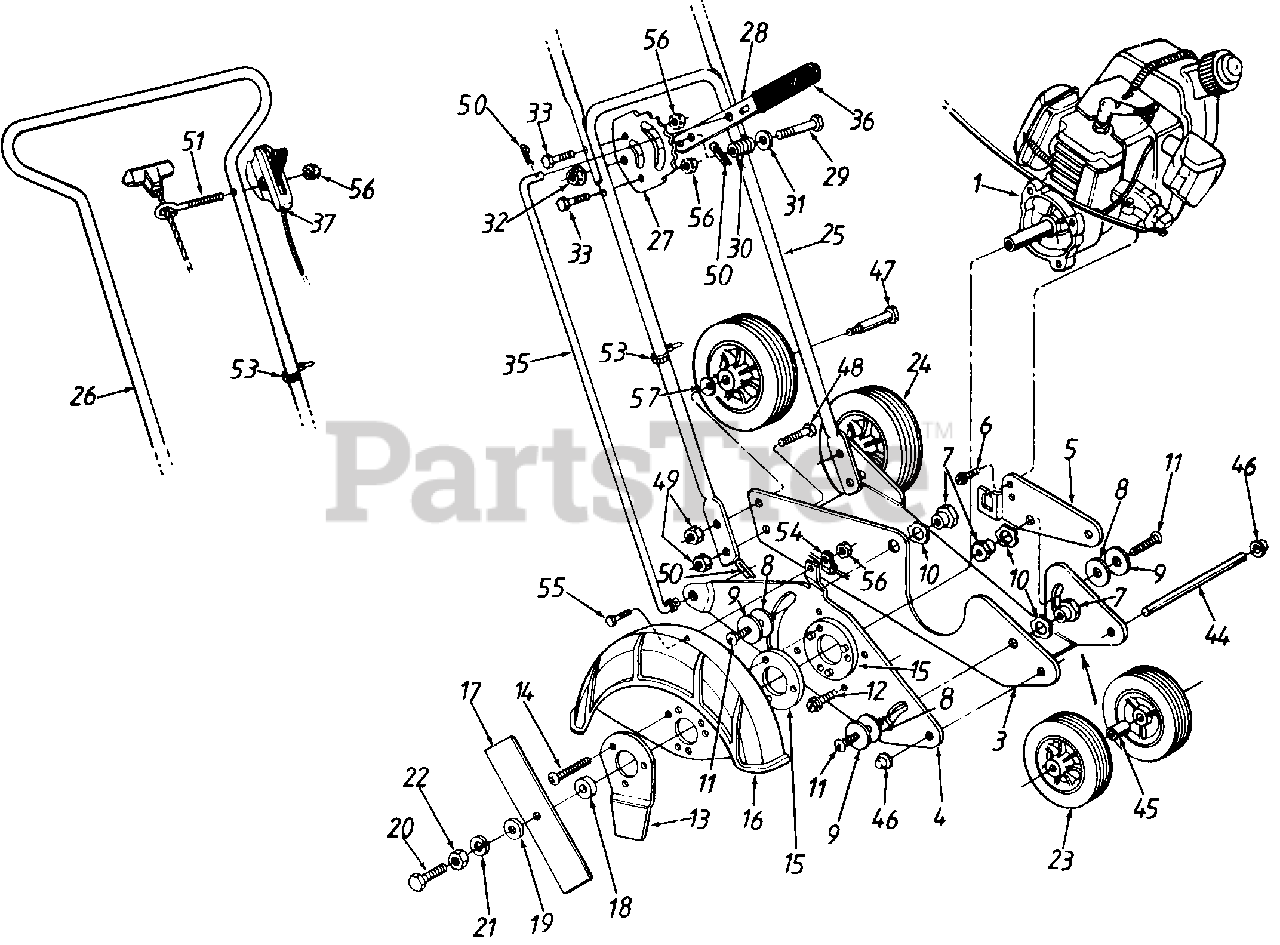

Edger Assembly Parts Diagram

  • Title
1

ENGINE

$

$

Not available

3

MTD 17813

EDGER BASE

Note: NLA

$

$

Currently unavailable

4

MTD 17812

SIDEPLATE

Note: NLA

$

$

Not available

5

MTD 17815

ENGINE 0 SUPPORT BRKT.

Note: NLA

$

$

Currently unavailable

6

MTD 710-1132

HEX WASH. HD. SCR. #8-32 X .625"

Note: NLA

$

$

Not available

7

MTD 738-0835

SHLD. NUT 5/16-18 THD.

Note: NLA

$

$

Currently unavailable

8

MTD 741-0562

THRUSH WASH. .319" I.D. X 1.25" O.D. X .05

Note: NLA

$

$

Not available

9

MTD 736-0457

FL-WASH. .319" I.D. X 1.25" O.D. X .048"

Note: NLA

$

$

Currently unavailable

10

MTD 936-0232

WAVE-WASH. .53" X.78" X.013"
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

11

MTD 710-0323

TRUSS MACH. SCR. 5/16-18 X .75" LG.

$4.99

$

In Stock, only 2 left!

0

12

MTD 710-1161

HEX WASH. HD. SCR. 1/4-20 X .50" LG.

Note: NLA

$

$

Not available

13

MTD 787-0101

EDGE 0 GUIDE

Note: NLA

$

$

Not available

14

MTD 710-1073

TRUSS MACH. SCR. #10-32 X 1.0" LG.

Note: NLA

$

$

Not available

15

MTD 750-0837

SPACER-BLADE GUARD

Note: NLA

$

$

Not available

16

MTD 731-1193

BLADE GUARD

$

$

Not available

17

MTD 742-0554

BLADE

Note: NLA

$

$

Not available

18

MTD 750-0826

SPACER .39" I.D. X 1" O.D. X .375"

Note: NLA

$

$

Not available

19

MTD 936-3004

WASHER .406" I.D. X .812" O.D. X .125"
(Superseded to 736-3004)

$

$

Not available

20

MTD 710-0459A

HEX BOLT 3/8-24 X 1.5 LG.-GR. 5

$6.99

$

In Stock, Qty 8

0

21

MTD 936-0217

L-WASH. 318" I.D. (H.D.)
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

22

MTD 712-0241

HEX NUT 3/8-24 THD.

$4.49

$

In Stock, Qty 13

0

23

MTD 634-0007

5" WHEEL

Note: NLA

$

$

Not available

24

MTD 734-1690

6" WHEEL

Note: NLA

$

$

Not available

25

MTD 749-0821

LOWER HANDLE

Note: NLA

$

$

Not available

26

MTD 749-0452

UPPER HANDLE

Note: NLA

$

$

Not available

27

MTD 17690

RATCHET PLATE

Note: NLA

$

$

Not available

28

MTD 787-0114

RATCHET PLATE HANDLE

Note: NLA

$

$

Not available

29

MTD 710-0805

HEX BOLT 5/16-18 X 1.5" LG.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

30

MTD 932-0645

SPRING .5" I.D. X .75" O.D. X 1" LG.

$2.99

$

In Stock, only 4 left!

0

31

MTD 936-0159

FL-WASH. .349" I.D. X .879" O.D. X .063"
(Superseded to 736-0159)

$

$

Not available

32

MTD 712-0406

FLANGE 0 TOP L-NUT 5/16-18 THD.

Note: NLA

$

$

Not available

33

MTD 710-1141

HEX BOLT 1/4-20 X 1.375" LG.

Note: NLA

$

$

Currently unavailable

33

MTD 912-0429

NYLON TOP L-NUT 5/16-18 THD.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

35

MTD 747-0767

DEPTH CONTROL ROD

Note: NLA

$

$

Not available

36

MTD 720-0142

VINYL GRIP

$3.99

$

Usually ships in 3-6 days

0

37

MTD 746-0771

CONTROL CHOKE ASS'Y.

Note: NLA

$

$

Currently unavailable

44

MTD 750-0806

AXLE TUBE

Note: NLA

$

$

Not available

45

MTD 750-0807

SPACER

$6.49

$

Usually ships in 3-6 days

0

46

MTD 926-0100

PUSHNUT RETAINER
(Superseded to 726-0100)

$

$

Not available

47

MTD 738-0856

SHLD. BOLT .50 DIA. X 1.7"

Note: NLA

$

$

Not available

48

MTD 710-0216

HEX BOLT 3/8-16 X .75" LG.

$4.49

$

In Stock, Qty 14

0

49

MTD 912-0431

FLANGE L-NUT 3/8-16 THD.

$4.99

$

In Stock, Qty 20+

0

50

MTD 914-0115

COTTER PI
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

51

MTD 710-1133

ROPE GUIDE EYEBOLT

Note: NLA

$

$

Currently unavailable

53

MTD 726-0197

CABLE TIE

$3.99

$

In Stock, only 1 left!

0

54

MTD 787-0115

CLAMP

Note: NLA

$

$

Not available

55

MTD 910-0289

HEX BOLT 1/4-20 X .5" LG.

$3.99

$

In Stock, only 3 left!

0

56

MTD 712-0324

HEX INS. L-NUT 1/4-20 THD.

$3.99

$

In Stock, Qty 16

0

57

MTD 736-0105

BELL-WASH. .38" I.D. X . 88" O.D.

$4.49

$

In Stock, Qty 20+

0
