250816BE (82378) - Snapper 25" Rear-Engine Riding Mower, 8hp Wheels - Front Parts Diagram

25" Rear-Engine Riding Mower, 8hp

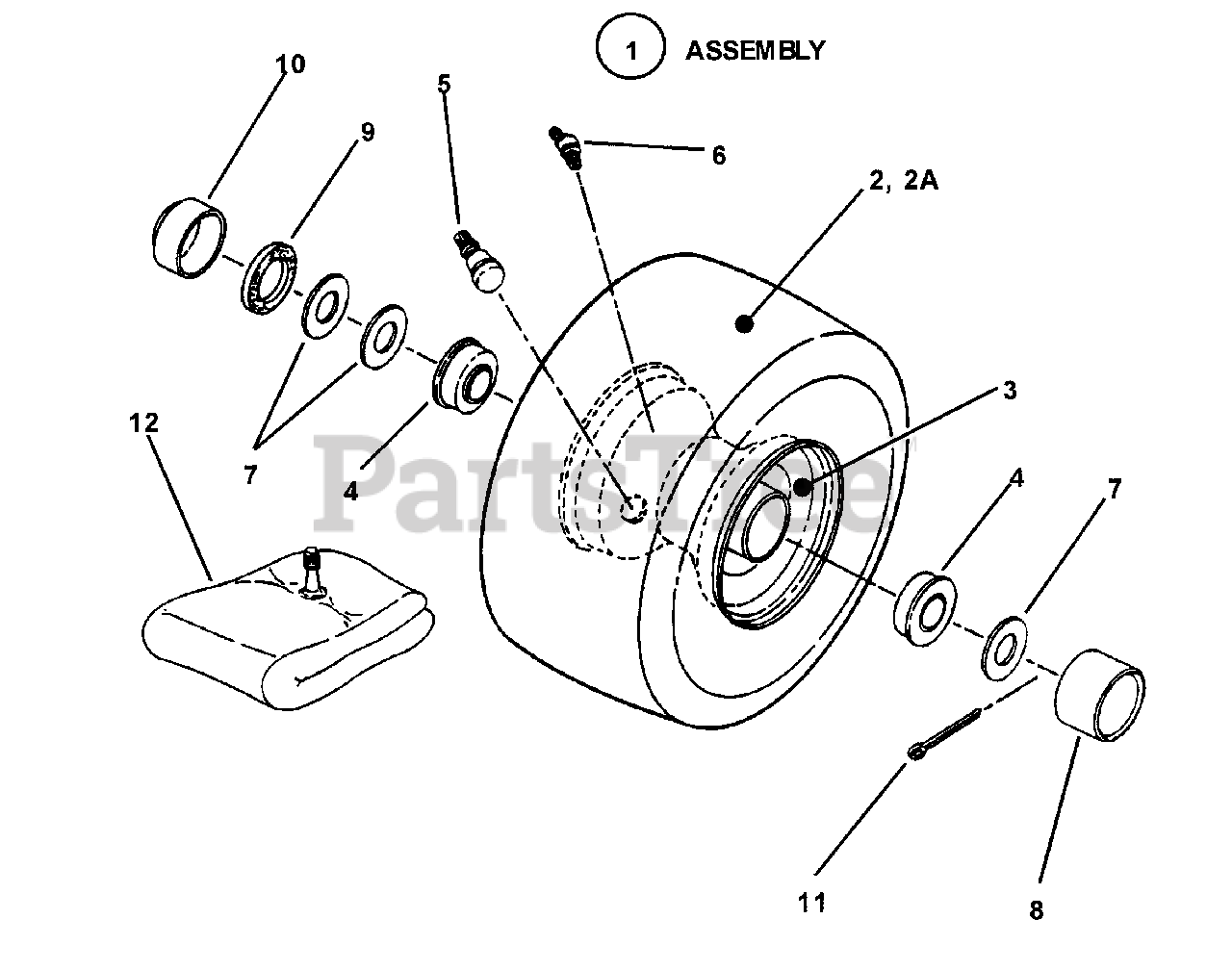

Wheels - Front Parts Diagram

  • Title

1

Snapper 7052268

ASSEMBLY, Tire & Rim
(Superseded to 7052268YP)

Note: (Includes Items 2, 3, 4, 6, & 12)

$107.99

$

In Stock, Qty 7

0

Snapper 7052267

ASSEMBLY, Front Tire & Rim
(Superseded to 7052267YP)

Note: (Includes Items 2 thru 6)

$87.99

$

In Stock, Qty 14

0

Snapper 7053304

FRONT WHEEL, 11.00 x 4.00
(Superseded to 7058943YP)

Note: (Includes items 24 thru 6)

$102.99

$

In Stock, only 2 left!

0

2

Snapper 7023828

TIRE, 4.10/3.50 x 4
(Superseded to 7023828YP)

$59.99

$

Usually ships in 2-12 days

0

2A

Snapper 7027933

TIRE 11.00/4:00 x 4
(Superseded to 7027933YP)

$67.99

$

In Stock, only 1 left!

0

3

Snapper 7017146

RIM
(Superseded to 7058943YP)

Note: (For 4.10/3.50 x 4 Tire)

$102.99

$

In Stock, only 2 left!

0

4

Snapper 7011807

BEARING, Ball
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 7014669

FITTING Lube
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7010935

WASHER, 3/4" I.D.
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7011022

CAP, Hub
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7011032

SEAL, Felt
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7031038

CAP, Dust
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 12

0

11

Snapper 7091516

PIN, Cotter 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 14

0

12

Snapper 7010821

TUBE, Inner
(Superseded to 7010821YP)

Note: (For 4.10/3.50 x 4 Tire)

$18.99

$

In Stock, Qty 5

0
