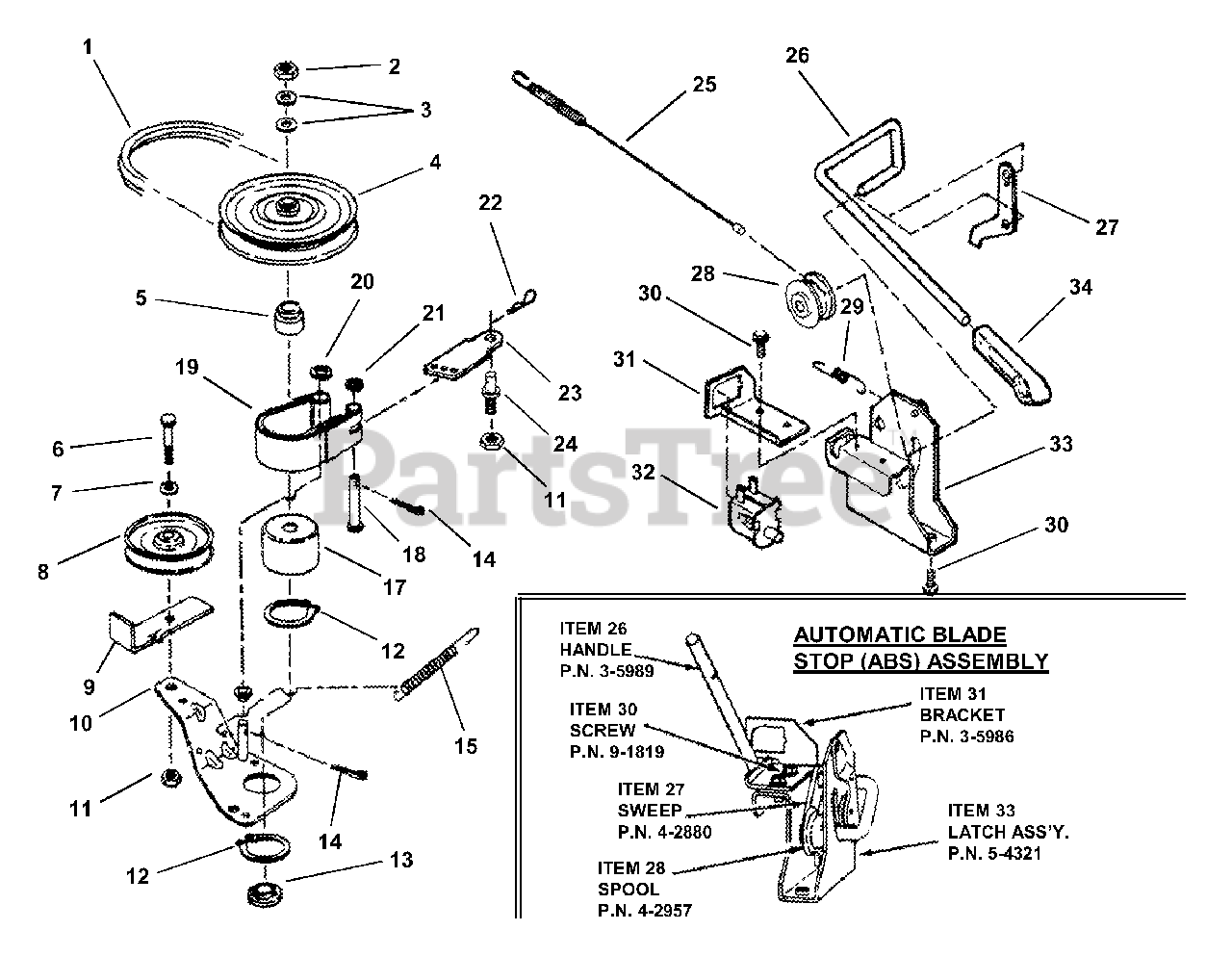

250816B (82483) - Snapper 25" Rear-Engine Riding Mower, 8hp Belts, Brakes, Interlock (25" Models) (Series 16) (Early Prod.) Parts Diagram

25" Rear-Engine Riding Mower, 8hp

Belts, Brakes, Interlock (25" Models) (Series 16) (Early Prod.) Parts Diagram

  • Title

1

Snapper 7022252

BELT, Drive (72.25" AA Section)
(Superseded to 7022252YP)

$25.99

$

Usually ships in 2-12 days

0

2

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

3

Snapper 7032027

WASHER, 49/64 x 1-1/2" Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

4

Snapper 7018781

PULLEY, Spindle
(Superseded to 7018781BMYP)

$43.99

$

In Stock, Qty 9

0

5

Snapper 7015290

HUB, Pulley
(Superseded to 7015290YP)

$6.49

$

In Stock, Qty 10

0

6

Snapper 7091517

SCREW, 3/8-24 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7029624

PULLEY, Idler
(Superseded to 7029624YP)

$35.99

$

In Stock, Qty 7

0

9

Snapper 7032111

RESTRICTOR, Belt
(Superseded to 7032111YP)

$6.99

$

In Stock, Qty 11

0

10

Snapper 7047787

ARM, Idler
(Superseded to 706001)

$27.99

$

Usually ships in 2-12 days

0

11

Snapper 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

12

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

13

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

14

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7036521

SPRING
(Superseded to 7036521YP)

$7.49

$

In Stock, Qty 6

0

16

Snapper 7014314

SPACER
(Superseded to 7014314YP)

$4.99

$

In Stock, only 1 left!

0

17

Snapper 7035378

DRUM, Brake
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

18

Snapper 7014304

PIN, 1/4 x 1-5/8" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7034852

BAND, Brake
(Superseded to 7600133YP)

$41.99

$

In Stock, Qty 7

0

20

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7091310

HAIRPIN, 5/64 x 1-3/16"
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

23

Snapper 7036400

BRACKET, Brake Anchor

$

$

Not available

24

Snapper 7015464

STUD (3/8-24 Thread)
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

25

Snapper 7035991

CABLE & SPRING, Clutch Assembly
(Superseded to 7035991YP)

$15.99

$

Usually ships in 2-12 days

0

26

Snapper 7035989

HANDLE, Blade Lever (ON-OFF)
(Superseded to 7044802YP)

Note: Was 44802

$82.99

$

Usually ships in 2-12 days

0

27

Snapper 7042880

SWEEP, ABS

$3.49

$

In Stock, only 1 left!

0

28

Snapper 7042957

SPOOL
(Superseded to 7042957YP)

$5.99

$

Usually ships in 2-12 days

0

29

Snapper 7043841

SPRING, ABS Return Latch
(Superseded to 7043841YP)

$7.99

$

Usually ships in 2-12 days

0

30

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

31

Snapper 7035986

BRACKET, Interlock Switch
(Superseded to 7035986YP)

$48.99

$

In Stock, only 1 left!

0

32

Snapper 7023354

SWITCH, Deck Interlock
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

33

Snapper 7054321

ASSEMBLY, Clutch Latch
(Superseded to 7054321YP)

$125.99

$

In Stock, only 1 left!

0

34

Snapper 7023657

GRIP, Handle
(Superseded to 7023657YP)

$4.99

$

In Stock, Qty 5

0
