250814B (80627) - Snapper 25" Rear-Engine Riding Mower, 8hp Main Case Parts Diagram

25" Rear-Engine Riding Mower, 8hp

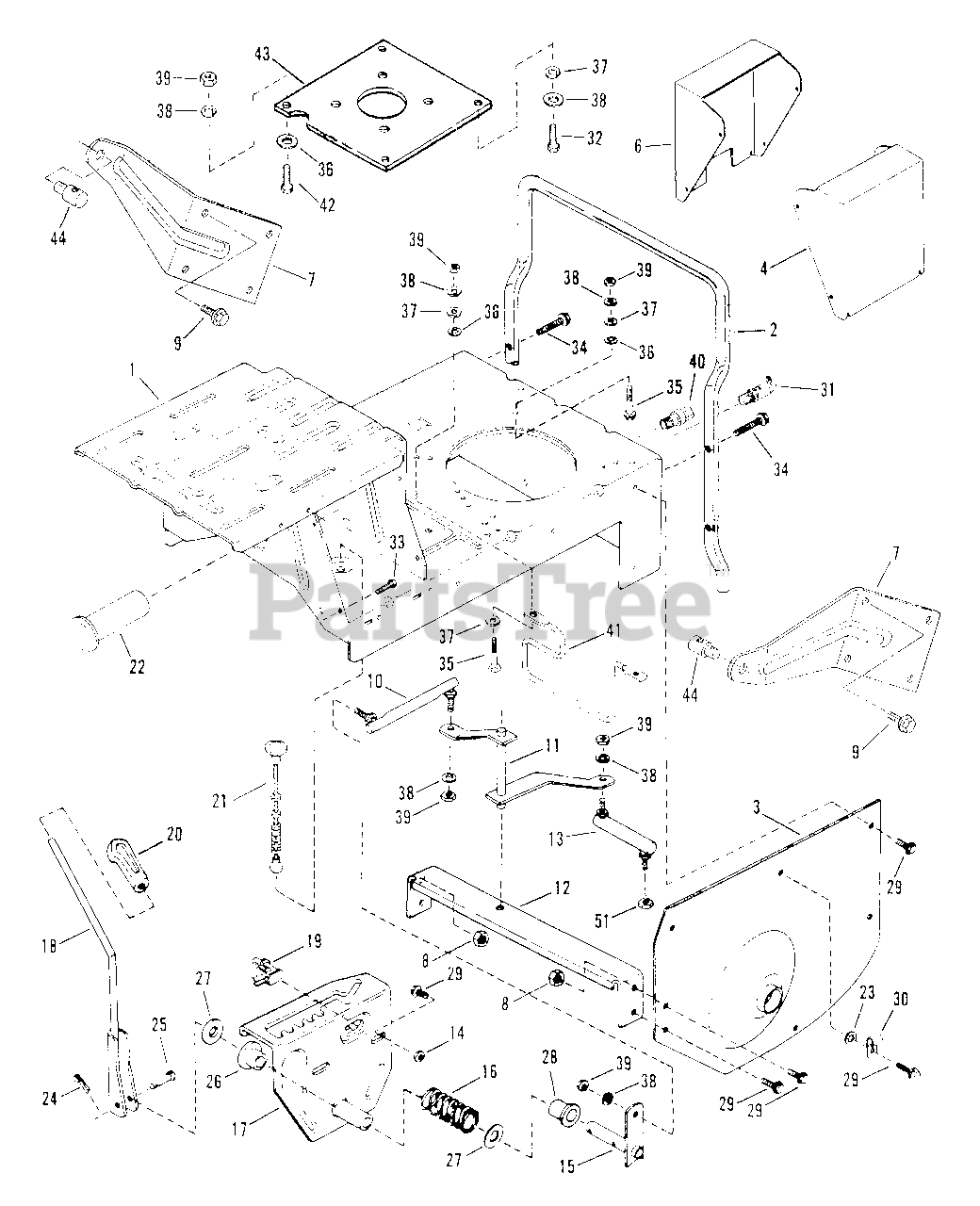

Main Case Parts Diagram

  • Title

1

Snapper 7041265

CASE, Main
(Superseded to 7041265YP)

Note: (Commercial)

$410.99

$

Usually ships in 2-12 days

0

Snapper 7041263

CASE, Main
(Superseded to 7041263YP)

Note: (Standard)

$421.99

$

Usually ships in 2-12 days

0

2

Snapper 7036367

BUMPER, Rear
(Superseded to 7036367BMYP)

$158.99

$

In Stock, only 1 left!

0

3

Snapper 7037958

FENDER, Left Hand

Note: (See "Chain Case, L.H. Fender" illustration and parts list for related parts)

$

$

Not available

4

Snapper 7028990

COVER, Battery
(Superseded to 7028990YP)

Note: Was 24319

$34.99

$

In Stock, only 1 left!

0

6

Snapper 7028989

COVER, Switch
(Superseded to 7073268YP)

Note: Was 17074

$20.99

$

In Stock, only 2 left!

0

7

Snapper 7034299

WING, Rear
(Superseded to 7034299YP)

Note: (Models 28", 30" & 33" Only)

$20.99

$

Usually ships in 2-12 days

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7090793

SCREW, 5/16-18 x 3/4" Self-Tapping
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0

10

Snapper 7023676

LINK, Shift (Long)
(Superseded to 7023676YP)

$34.99

$

In Stock, only 3 left!

0

11

Snapper 7041384

ARM, Shift
(Superseded to 7041384YP)

$51.99

$

Usually ships in 2-12 days

0

12

Snapper 7033799

BRACE, Cross
(Superseded to 7033799YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7011018

LINK, Shift (Short)
(Superseded to 7011018YP)

$18.99

$

In Stock, Qty 16

0

14

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7040598

ARM, Shift Handle
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 2 left!

0

16

Snapper 7010754

SPRING, Shift Handle
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 7041232

DETENT, Shift
(Superseded to 7041232BMYP)

$121.99

$

Usually ships in 2-12 days

0

18

Snapper 7059212

HANDLE, Shift
(Superseded to 7059212DYP)

Note: Was 40599 (Now 59212 + 23656)

$56.99

$

In Stock, Qty 20+

0

19

Snapper 7015707

SWITCH, Seat
(Superseded to 7015707YP)

$8.99

$

In Stock, Qty 20+

0

20

Snapper 7023656

KNOB, Shift Handle
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

21

Snapper 7027429

CABLE, Deck Support
(Superseded to 7027429YP)

Note: (25" Models Only)

$12.99

$

In Stock, only 3 left!

0

22

Snapper 7074650

BUSHING, Pilot
(Superseded to 7074650YP)

Note: Was 22509

$12.99

$

In Stock, only 3 left!

0

23

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7091597

PIN, 3/32 x 3/4" Cotter Hair
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7023914

PIN, 1/4 x 1-3/4" Tapered Clevis
(Superseded to 7023914YP)

$

$

Not available

26

Snapper 7019245

BUSHING, Nylon
(Superseded to 7019245YP)

$4.49

$

In Stock, Qty 8

0

27

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7019246

BUSHING, Nylon
(Superseded to 7019246YP)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

30

Snapper 7012652

CLIP, Wire
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 7027972

DRAIN, Oil (1/4 Turn)
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

32

Snapper 7077692

SCREW,
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7091272

FASTENER, 1/4 x 3/4 Ratchet
(Superseded to 7091272YP)

$3.99

$

In Stock, Qty 13

0

34

Snapper 7091506

SCREW, 5/16-18 x 1-1/2" Self-Tapping
(Superseded to 704318)

$4.49

$

In Stock, only 4 left!

0

35

Snapper 7091513

SCREW, 5/16-24 x 1-3/4" Hex Head Cap
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 13

0

36

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

38

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7022486

DRAIN, Oil (Short)
(Superseded to 7022486YP)

$22.99

$

Usually ships in 2-12 days

0

41

Snapper 7017653

GUIDE, Belt
(Superseded to 7105172BMYP)

Note: (25" & 28" Models)

$11.99

$

Usually ships in 2-12 days

0

Snapper 7017604

GUIDE, Belt
(Superseded to 7105172BMYP)

Note: (30" & 33" Briggs)

$11.99

$

Usually ships in 2-12 days

0

42

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

43

Snapper 7074946

PLATE, Engine
(Superseded to 7074946YP)

Note: Was 34093

$22.99

$

Usually ships in 2-12 days

0

44

Snapper 7028200

SWIVEL
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

51

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0
