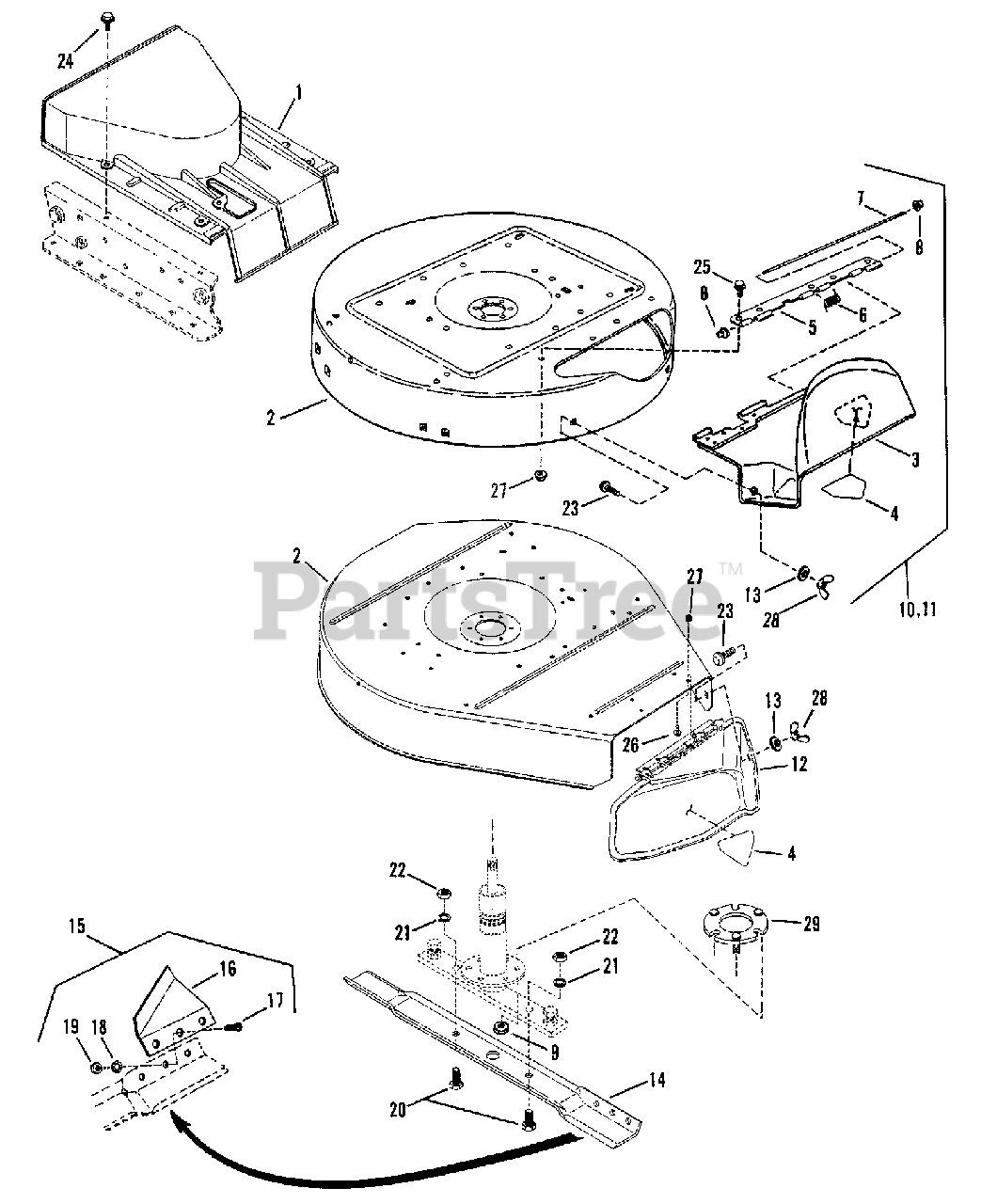

250812BE (80541) - Snapper 25" Rear-Engine Riding Mower, 8hp Cutting Decks, Deflectors Parts Diagram

25" Rear-Engine Riding Mower, 8hp

Cutting Decks, Deflectors Parts Diagram

  • Title

1

Snapper 7026294

COVER, Spindle
(Superseded to 7073434YP)

$125.99

$

In Stock, only 2 left!

0

2

Snapper 7061969

25" DECK (Includes decals)

Note: Was 61221

$

$

Not available

2

Snapper 7061222

26" DECK (Includes decals)
(Superseded to 7061222YP)

Note: 7060995 26" DECK (Includes decals & deflector)

$290.99

$

Usually ships in 2-12 days

0

2

Snapper 7061970

28" DECK (Includes decals)
(Superseded to 7061970YP)

Note: Was 61223 or 61809

$

$

Not available

2

Snapper 7061971

30" DECK (Includes decals & deflector)
(Superseded to 7061971YP)

Note: Was 61224

$902.99

$

Usually ships in 2-12 days

0

3

Snapper 7016046

DEFLECTOR, Discharge (25" Deck)
(Superseded to 7057624YP)

Note: Does not include Hinge #7038370 & 4 Rivits #7013860

$262.99

$

Usually ships in 2-12 days

0

3

Snapper 7026233

DEFLECTOR, Discharge (28" Deck)
(Superseded to 7026233YP)

$74.99

$

In Stock, Qty 20+

0

4

Snapper 7013010

DECAL, Danger (Cut Finger)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

5

Snapper 7033780

HINGE, Deflector
(Superseded to 7300886BMYP)

$20.99

$

Usually ships in 2-12 days

0

6

Snapper 7016341

SPRING, Hinge
(Superseded to 7016341YP)

$4.49

$

In Stock, Qty 14

0

7

Snapper 7026234

PIN, Hinge
(Superseded to 7105174YP)

$8.99

$

In Stock, Qty 11

0

8

Snapper 7029840

NUT, 1/4 Push
(Superseded to 704315)

Note: Was 11788

$4.49

$

In Stock, only 2 left!

0

9

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7057624

ASSEMBLY, Discharge (25" Deck)
(Superseded to 7057624YP)

Note: Was 51976 (Includes Items 3 - 10)

$262.99

$

Usually ships in 2-12 days

0

11

Snapper 7052555

ASSEMBLY, Discharge (28" Deck)
(Superseded to 7600147YP)

Note: (Includes Item 3 - 11)

$122.99

$

In Stock, only 1 left!

0

12

Snapper 7052553

DEFLECTOR, Discharge (26" & 30" Decks)
(Superseded to 7052553YP)

$243.99

$

In Stock, only 1 left!

0

13

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

14

Snapper 7019518

25" BLADE

$

$

Not available

14

Snapper 7018068

26" BLADE
(Superseded to 7018068BMYP)

$34.99

$

In Stock, only 1 left!

0

14

Snapper 7019515

28" BLADE
(Superseded to 7019515BZYP)

$30.99

$

In Stock, Qty 5

0

14

Snapper 7018069

30" BLADE
(Superseded to 7018069BZYP)

$32.99

$

In Stock, Qty 5

0

15

Snapper 7060480

AIR LIFT KIT, Hi-Vac
(Superseded to 7060480SM)

Note: (25" & 28" Models); (Includes 16 - 19)

$

$

Not available

15

Snapper 7060735

AIR LIFT KIT, Standard (2 hole)(Not shown)
(Superseded to 7060735YP)

Note: (26" & 30" Models); (Includes 16 - 19)

$62.99

$

In Stock, only 1 left!

0

16

Snapper 7037723

AIR LIFT, Hi-Vac (3 hole)
(Superseded to 7037723BMYP)

$

$

Not available

16

Snapper 7031724

AIR LIFT, Standard (2 hole)(Not shown)
(Superseded to 7031724YP)

$27.99

$

Usually ships in 2-12 days

0

17

Snapper 7090228

SCREW, 5/16-24 x 11/16" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7090391

WASHER, 5/16-24 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7090509

WASHER, 1/2 Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

22

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

24

Snapper 7090741

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

Note: Was 91016

$4.49

$

In Stock, Qty 5

0

25

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

26

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

27

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

29

Snapper 7053034

RING, Spindle
(Superseded to 7053034YP)

$27.99

$

Usually ships in 2-12 days

0

Snapper 7061226

25" ABS Deck Assy. (Series 12&13) - Complete Unit (Not shown)
(Superseded to 7061226YP)

$1054.99

$

Usually ships in 2-12 days

0

Snapper 7061227

26" ABS Deck Assy. (Series 12&13) - Complete Unit (Not shown)
(Superseded to 7061227YP)

$1025.99

$

Usually ships in 2-12 days

0

Snapper 7061228

28" ABS Deck Assy. (Series 12&13) - Complete Unit (Not shown)

$

$

Currently unavailable

Snapper 7061229

30" ABS Deck Assy. (Series 12&13) - Complete Unit (Not shown)

$

$

Currently unavailable
