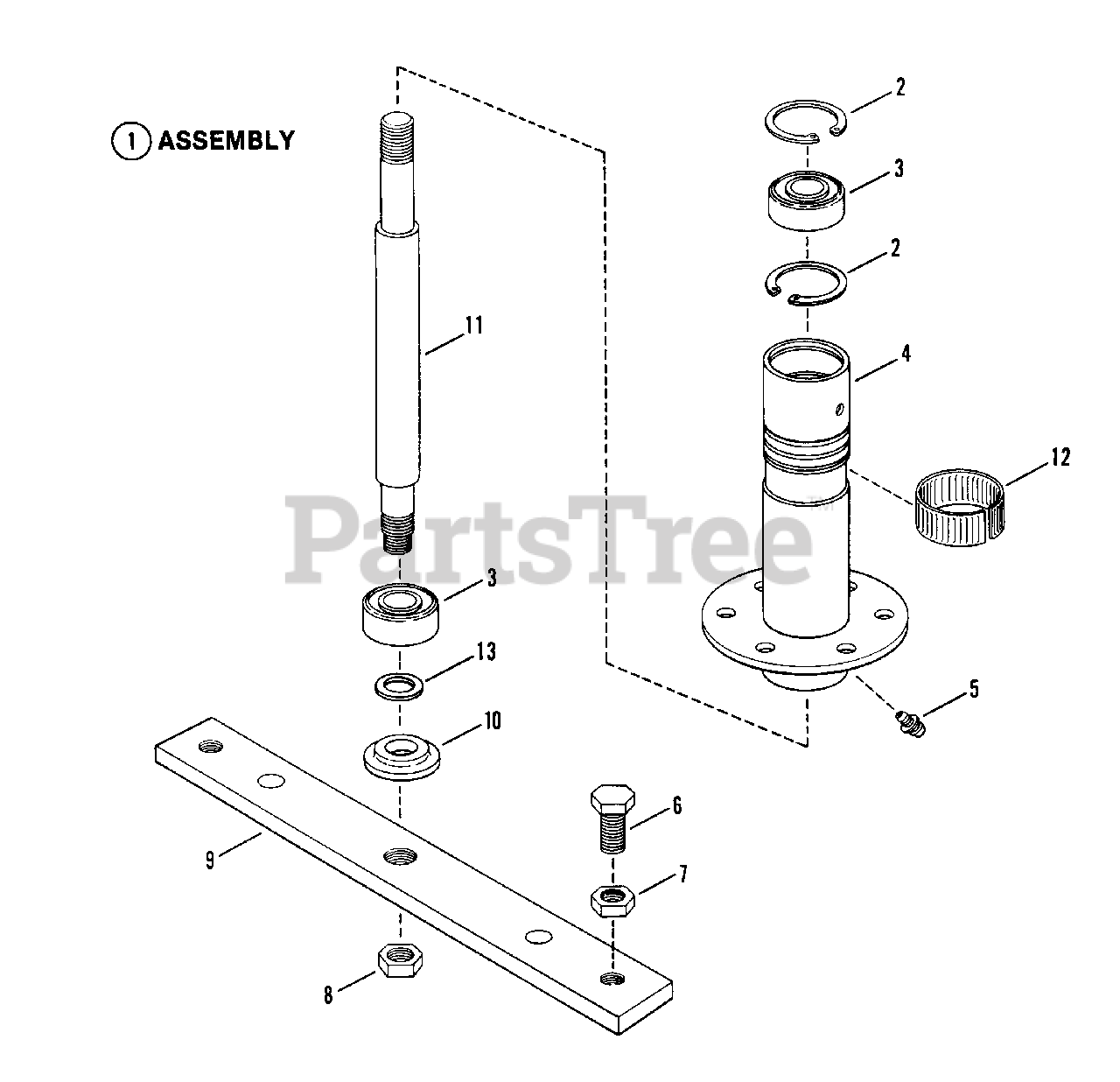

250811BE (80256) - Snapper 25" Rear-Engine Riding Mower, 8hp Spindle Parts Diagram

25" Rear-Engine Riding Mower, 8hp

Spindle Parts Diagram

  • Title

1

Snapper 7054531

ASSEMBLY, Spindle Housing
(Superseded to 7054531BMYP)

Note: Was 59813 (Includes 2 thru 11)

$

$

Not available

2

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7050696

HOUSING, Spindle
(Superseded to 7040460BMYP)

Note: (Includes Item 5)

$63.99

$

In Stock, Qty 9

0

5

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap (GR.5)
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7090356

NUT, 5/8-18 Hex Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7037751

HOLDER, Blade
(Superseded to 7037751BMYP)

$45.99

$

Usually ships in 2-12 days

0

10

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

11

Snapper 7044785

SPINDLE, Shaft (10.237" Long)
(Superseded to 7044785YP)

Note: Was 21742

$40.99

$

In Stock, Qty 20+

0

12

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

13

Snapper 7010121

WASHER, Shim
(Superseded to 7010121YP)

$4.49

$

In Stock, Qty 5

0
