25066S (81017) - Snapper 25" Rear-Engine Riding Mower, 6hp Electrical Systems Parts Diagram

25" Rear-Engine Riding Mower, 6hp

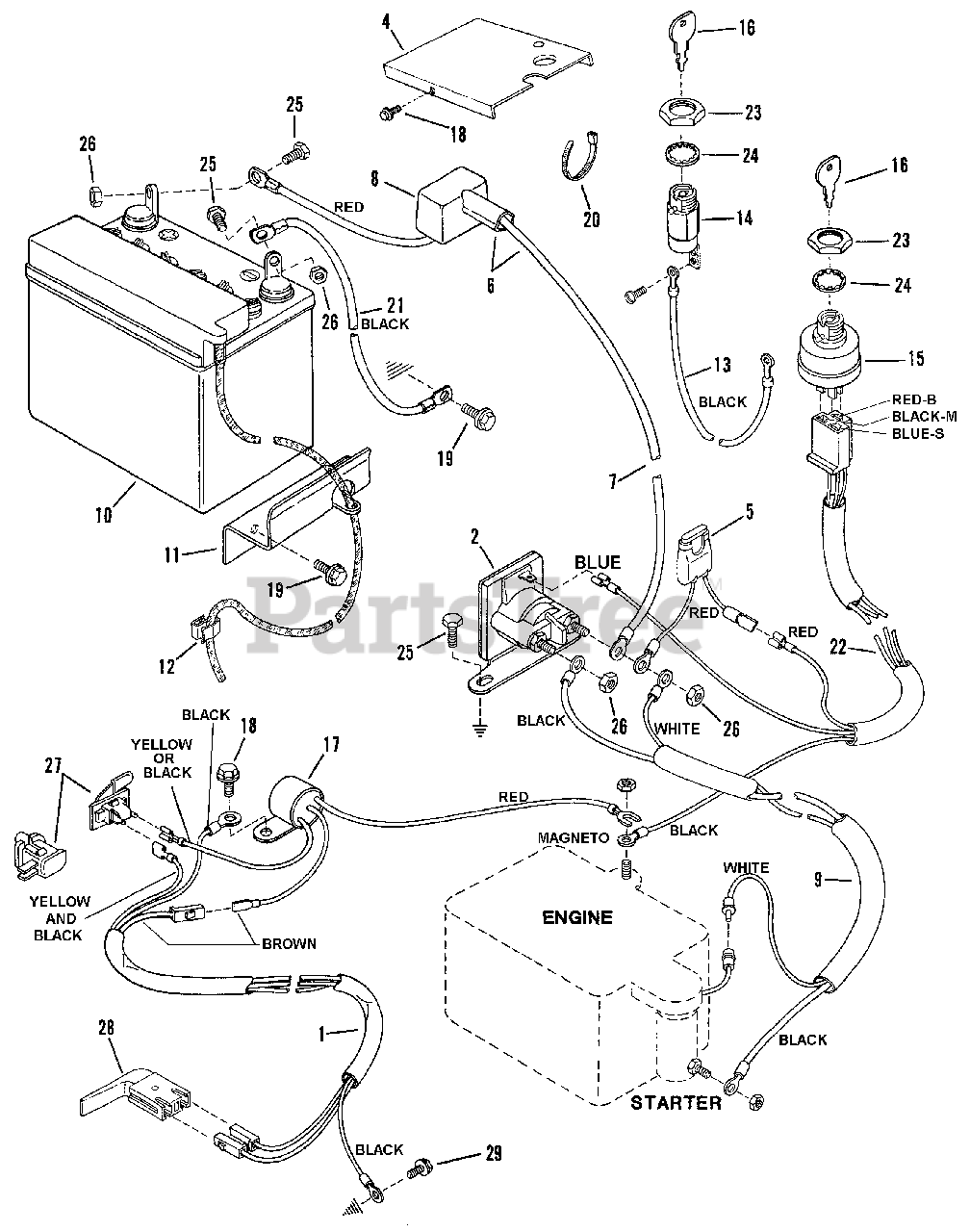

Electrical Systems Parts Diagram

  • Title

1

Snapper 7018873

HARNESS, Deck Interlock Wiring
(Superseded to 7018873YP)

Note: (87 & Earlier Models)

$16.99

$

Usually ships in 2-12 days

0

Snapper 7018912

HARNESS, Deck Interlock Wiring
(Superseded to 7018912YP)

Note: (88 & Later Models)

$20.99

$

Usually ships in 2-12 days

0

2

Snapper 7075671

SOLENOID
(Superseded to 7075671YP)

Note: Was 18817

$31.99

$

Usually ships in 2-12 days

0

3

Snapper 7015431

HARNESS, Starter Wiring

Note: (Tec. Electric Start);

$

$

Not available

4

Snapper 7038240

PANEL, Switch
(Superseded to 7038240YP)

$37.99

$

Usually ships in 2-12 days

0

5

Snapper 7016168

HOLDER, Fuse
(Superseded to 7016168YP)

Note: Was 15428 (includes Fuse)

$23.99

$

In Stock, only 3 left!

0

Snapper 7016168

FUSE (7.5 AMP)
(Superseded to 7016168YP)

Note: Was 15468

$23.99

$

In Stock, only 3 left!

0

6

Snapper 7014476

ASSEMBLY, Wire & Cover
(Superseded to 7014476YP)

Note: Was 51615 (Now 14476 + 12444)

$12.99

$

Usually ships in 2-12 days

0

7

Snapper 7014476

CABLE, Positive (Red)
(Superseded to 7014476YP)

Note: Was 15432

$12.99

$

Usually ships in 2-12 days

0

8

Snapper 7012444

COVER, Battery Cable
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

9

Snapper 7015430

HARNESS, Starter Wiring
(Superseded to 7015430YP)

Note: (B&S Electric Start)

$34.99

$

Usually ships in 2-12 days

0

10

Snapper 7060753

KIT, 12V Dry Charge Battery
(Superseded to 7060753YP)

$

$

Not available

11

Snapper 7037343

CLAMP, Battery Retaining

$

$

Not available

12

Snapper 7015063

CLIP, Battery Hose

$

$

Not available

13

Snapper 7012631

WIRE, Ground

Note: (B&S - Manual Start)

$

$

Not available

Snapper 7012643

WIRE, Ground

Note: (Tec. - Manual Start)

$

$

Not available

14

Snapper 7011853

SWITCH, Ignition
(Superseded to 7011853YP)

Note: (Used with Manual Start)

$27.99

$

In Stock, only 3 left!

0

15

Snapper 7018816

SWITCH, Ignition
(Superseded to 7018816YP)

Note: (Used with Electric Start)

$42.99

$

In Stock, Qty 5

0

16

Snapper 7011138

KEY, Switch
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

17

Snapper 7063064

INTERLOCK
(Superseded to 7063064YP)

Note: (B&S); (87 & Earlier Models) Was 12632

$

$

Not available

Snapper 7063065

INTERLOCK
(Superseded to 7063065YP)

Note: (Tec.); (87 & Earlier Models) Was 15042

$82.99

$

Usually ships in 2-12 days

0

Snapper 7063064

INTERLOCK
(Superseded to 7063064YP)

Note: (B&S); (88 & Later Models) Was 15760

$

$

Not available

Snapper 7063065

INTERLOCK
(Superseded to 7063065YP)

Note: (Tec.); (88 & Later Models) Was 15759

$82.99

$

Usually ships in 2-12 days

0

18

Snapper 7091122

SCREW, 1/4-20x1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 7

0

19

Snapper 7090858

SCREW, 5/16-18x1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 7012080

CABLE-TIE
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7011859

CABLE, Negative
(Superseded to 7011859YP)

$8.99

$

Usually ships in 2-12 days

0

22

Snapper 7018849

HARNESS, Wiring
(Superseded to 7018849YP)

Note: Was 18819 (B&S)

$19.99

$

Usually ships in 2-12 days

0

Snapper 7018820

HARNESS, Wiring

Note: (Tec.)

$

$

Not available

23

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7091546

WASHER, 5/8 Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, only 4 left!

0

25

Snapper 7090072

SCREW, 1/4-20x5/8" Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

26

Snapper 7090372

NUT, 1/4-20 Hex Lock
(Superseded to 703954)

$

$

Not available

27

Snapper 7050681

SWITCH, Shift Interlock
(Superseded to 7050681YP)

Note: (87 & Earlier Models)

$

$

Not available

Snapper 7015707

SWITCH, Seat
(Superseded to 7015707YP)

Note: (88 & Later Models)

$8.99

$

In Stock, Qty 20+

0

28

Snapper 7018524

SWITCH, Deck Interlock
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 11

0

29

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0
