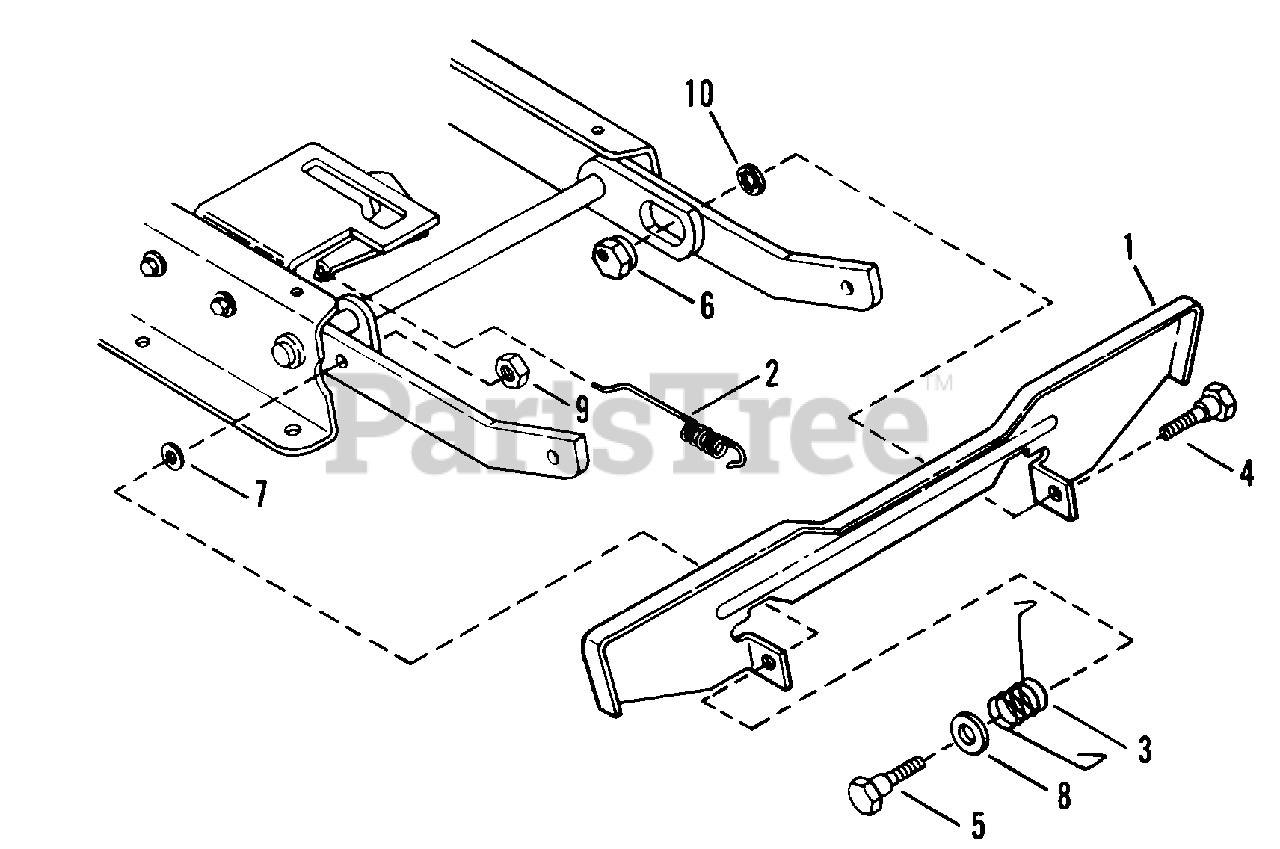

250610T (80248) - Snapper 25" Rear-Engine Riding Mower, 6hp Blade Stop Pedals 30" Deck Parts Diagram

25" Rear-Engine Riding Mower, 6hp

Blade Stop Pedals 30" Deck Parts Diagram

  • Title
1

Snapper 7033601

PEDAL, Blade Stop Control

$34.99

$

In Stock, only 1 left!

0

2

Snapper 7019410

SPRING, Latching
(Superseded to 7019410YP)

$16.99

$

In Stock, only 1 left!

0

3

Snapper 7015448

SPRING, Pedal
(Superseded to 7015448YP)

$6.49

$

In Stock, only 1 left!

0

4

Snapper 7015495

BOLT, 3/8-24 x 3/4" Shoulder
(Superseded to 7015495YP)

$

$

Not available

5

Snapper 7015446

BOLT, 3/8-24 x 9/16" Shoulder
(Superseded to 7015446YP)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

7

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

10

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0
