25009 (960830010-00) - Husqvarna Front-Tine Tiller (2014-03) TRANSMISSION Parts Diagram

Front-Tine Tiller

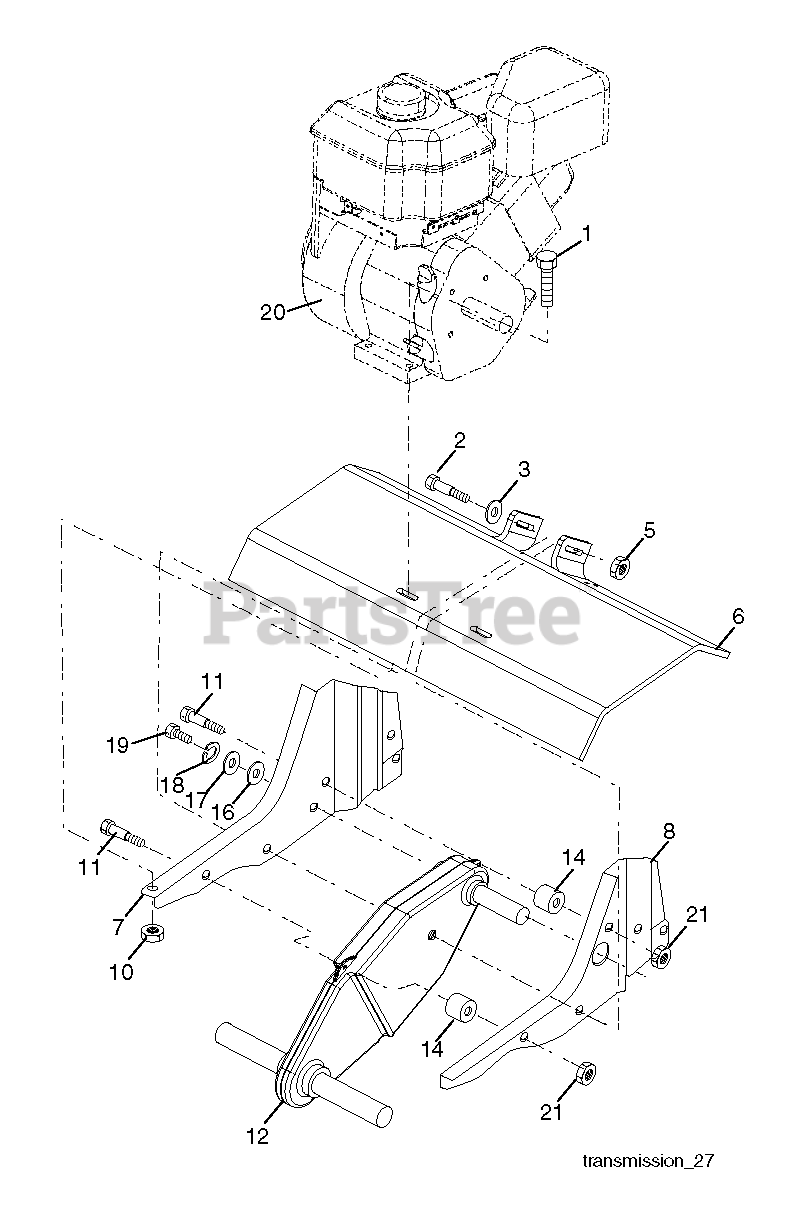

TRANSMISSION Parts Diagram

  • Title

1

Husqvarna 874760524

BOLT
(Superseded to 874780524)

$1.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874780652

BOLT

$

$

Not available

3

Husqvarna 819131311

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532440704

SHIELD.PNT.TINE.24".ORANGE

$102.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532446006

BRACKET.ENGINE.RH.TILLER.BLACK
(Superseded to 532188195)

Note: RH

$

$

Not available

8

Husqvarna 532446003

BRACKET.ENGINE.TILLER.BLACK
(Superseded to 584325101)

Note: LH

$

$

Not available

10

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532187912

BOLT, HEX HEAD 5/16-18 X 2.5

$7.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532151222

TRANSMISSION.ASM.W/1".D-SHAFT

$

$

Not available

14

Husqvarna 532446548

SPACER.SPLIT.327 X 1.00

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 819091412

REPL BY 819 09 14-16
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 819092016

WASHER

$7.99

$

In Stock, only 1 left!

0

18

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

19

Husqvarna 874610412

BOLT

$

$

Not available

20

000000000

Note: B S 130G32-0056-F1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

21

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 3 left!

0
