25009 (960830010-00) - Husqvarna Front-Tine Tiller (2014-03) BELT GUARD PULLEY Parts Diagram

Front-Tine Tiller

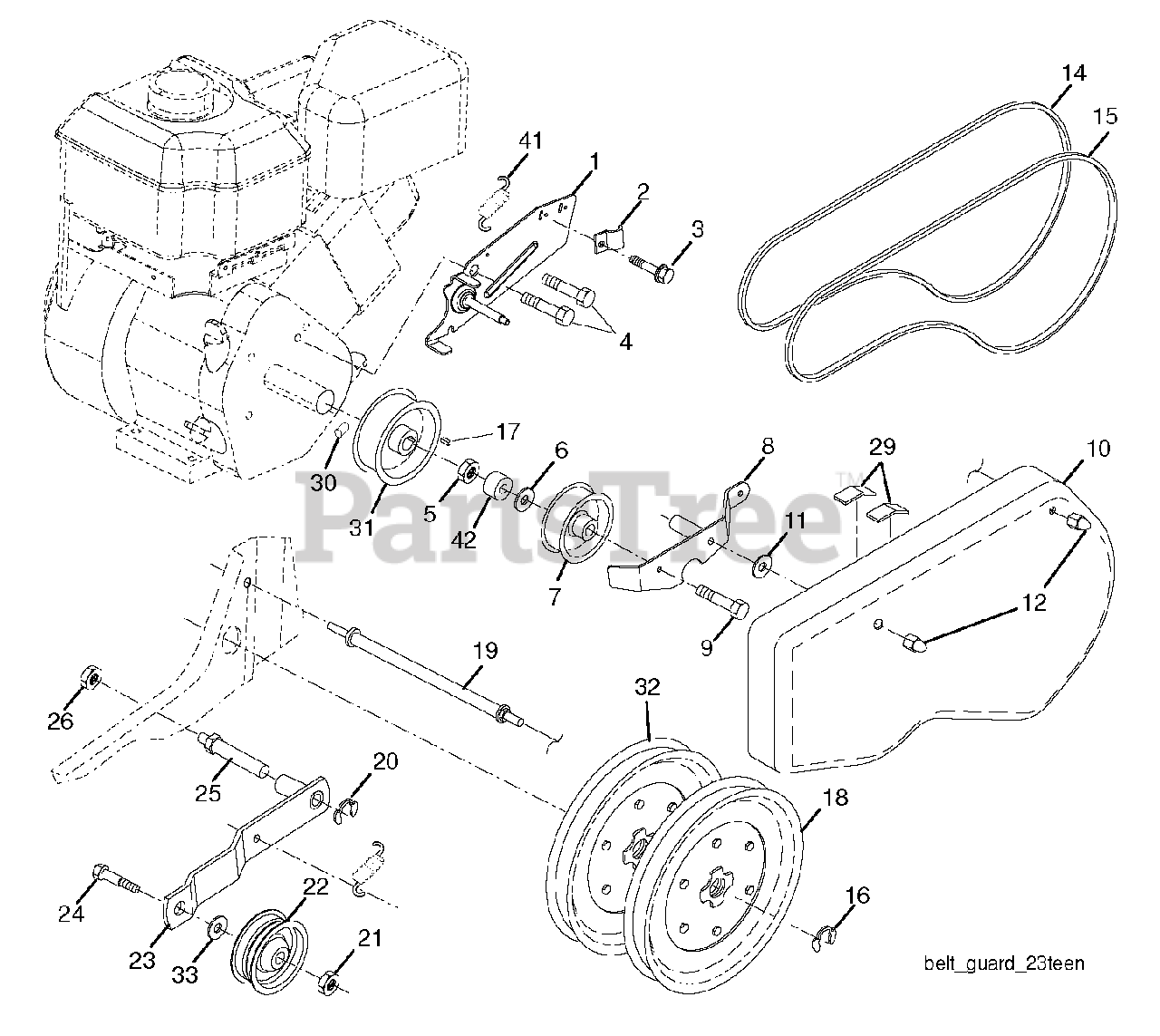

BELT GUARD PULLEY Parts Diagram

  • Title
1

Husqvarna 532439162

RP ASSEMBLY,BRACKET,BELTGUARD
(Superseded to 532446043)

$

$

Not available

2

Husqvarna 532446045

CLIP.PLATED
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

3

Husqvarna 532150050

SCREW.HXTAP.10-24

$4.99

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 532437259

BUSHING SPACER.AXLE

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 584911201

PULLEY FLAT IDLER

$13.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532446051

ARM.ASM.REV.IDLER.TILLER.BLACK

$27.99

$

In Stock, only 1 left!

0

9

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$

$

Not available

10

Husqvarna 532440709

GUARD.BELT.TILLER.ORANGE

$26.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532104213

CAP
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

$42.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532446054

BELT.TILLER.DRIVE
(Superseded to 599385301)

Note: Reverse

$17.99

$

In Stock, Qty 5

0

16

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 7

0

17

Husqvarna 532446048

KEY.SQ.187 X 1.125
(Superseded to 532002649)

$6.99

$

In Stock, only 1 left!

0

18

Husqvarna 532151236

SHEAVE,TRANS."D"

$34.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532188502

BOLT.BELT.GUARD

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 812000036

KLIP RING TI

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 532180522

PULLEY.W/SPACER.2.25

$31.99

$

Usually ships in 3-10 days

0

23

Husqvarna 580530002

ARM.ASM.IDLER.PNT

$11.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

25

Husqvarna 532106968

SHAFT.IDLER.TILLER

$15.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873350500

JAM NUT TI
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

$3.49

$

In Stock, only 1 left!

0

31

Husqvarna 532101189

ENGINE.PULLEY.TILLER

$66.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532151223

SHEAVE.TRANS

$39.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 1 left!

0

41

Husqvarna 532180307

SPRING.EXTENSION

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532421613

SPACER.CONTROL.LEVER

$4.99

$

In Stock, only 1 left!

0
