25009 (250090) - Husqvarna Front-Tine Tiller (2011-12) BELT GUARD & PULLEY Parts Diagram

Front-Tine Tiller

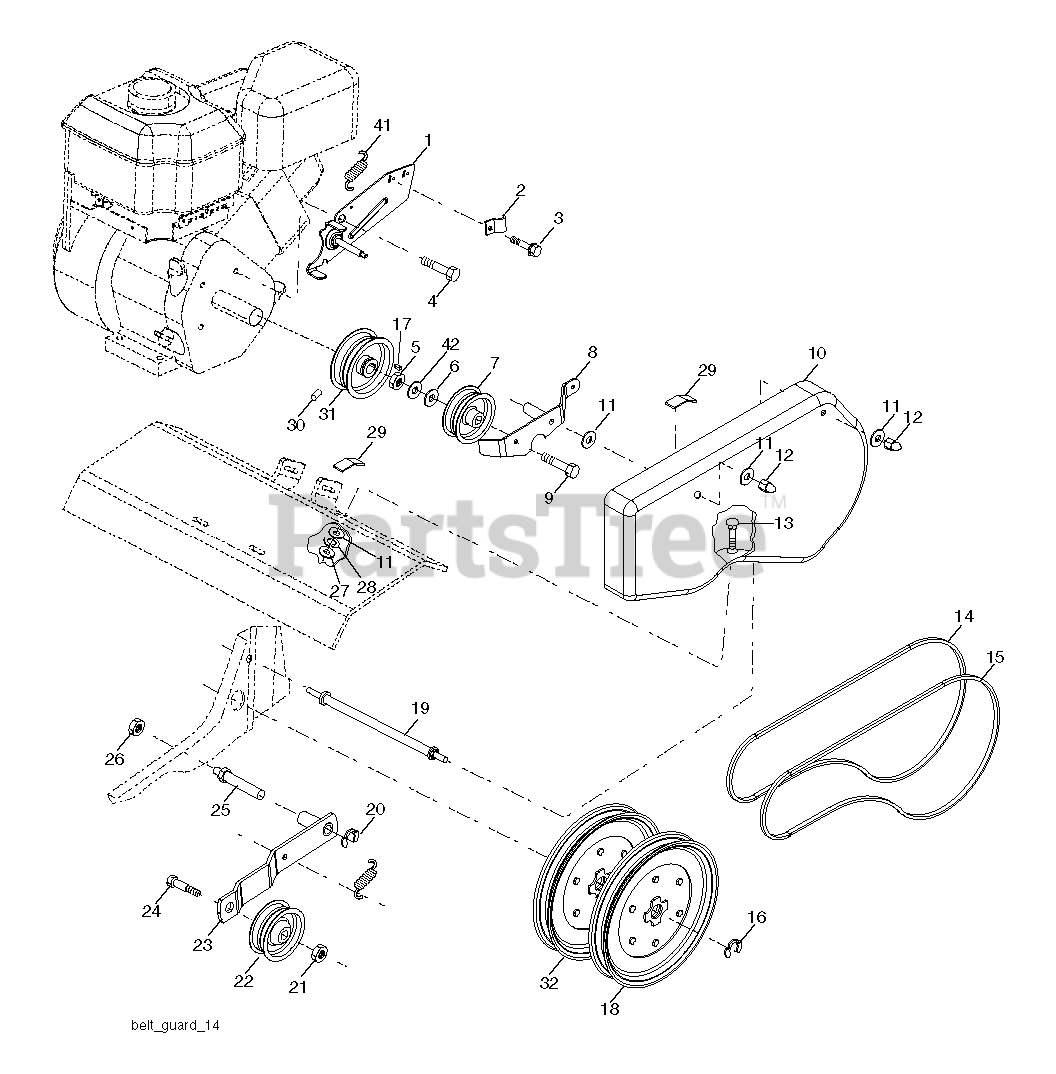

BELT GUARD & PULLEY Parts Diagram

  • Title

14

Husqvarna 532133035

BELT

Note: Forward Motion

$42.99

$

Usually ships in 3-10 days

0

13

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 823200404

SCREW

$3.49

$

In Stock, only 1 left!

0

2

Husqvarna 532446045

CLIP.PLATED
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

22

Husqvarna 532161806

PULLEY, IDLER

$31.99

$

Usually ships in 3-10 days

0

20

Husqvarna 812000036

KLIP RING TI

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 874610812

Bolt, Hex Head 1/2-20 x 3/4

$

$

Not available

15

Husqvarna 532446054

BELT.TILLER.DRIVE
(Superseded to 599385301)

Note: Reverse

$17.99

$

In Stock, Qty 5

0

26

Husqvarna 873350500

JAM NUT TI
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532104213

CAP
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532180307

SPRING.EXTENSION

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532151236

SHEAVE,TRANS."D"

$34.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532446048

KEY.SQ.187 X 1.125
(Superseded to 532002649)

$6.99

$

In Stock, only 1 left!

0

3

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

6

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532440709

GUARD.BELT.TILLER.ORANGE

$26.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532151223

SHEAVE.TRANS

$39.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532446043

BRACKET.ASM.GUARD.BELT.BLAC

$

$

Not available

9

Husqvarna 874780632

CAP.SCREW.HEX.HD.3/8-16
(Superseded to 583614701)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 8

0

21

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

19

Husqvarna 532188502

BOLT.BELT.GUARD

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

7

Husqvarna 532446049

NEEDS DESCRIPTION

$

$

Currently unavailable

31

Husqvarna 532101189

ENGINE.PULLEY.TILLER

$66.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532106968

SHAFT.IDLER.TILLER

$15.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532446051

ARM.ASM.REV.IDLER.TILLER.BLACK

$27.99

$

In Stock, only 1 left!

0

24

Husqvarna 874760620

BOLT

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532138909

SPACER

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532446042

ARM.ASM.IDLER.
(Superseded to 532175377)

$24.99

$

Usually ships in 3-10 days

0
