2500 - Poulan Chainsaw Internal Power Unit Parts Diagram

Chainsaw

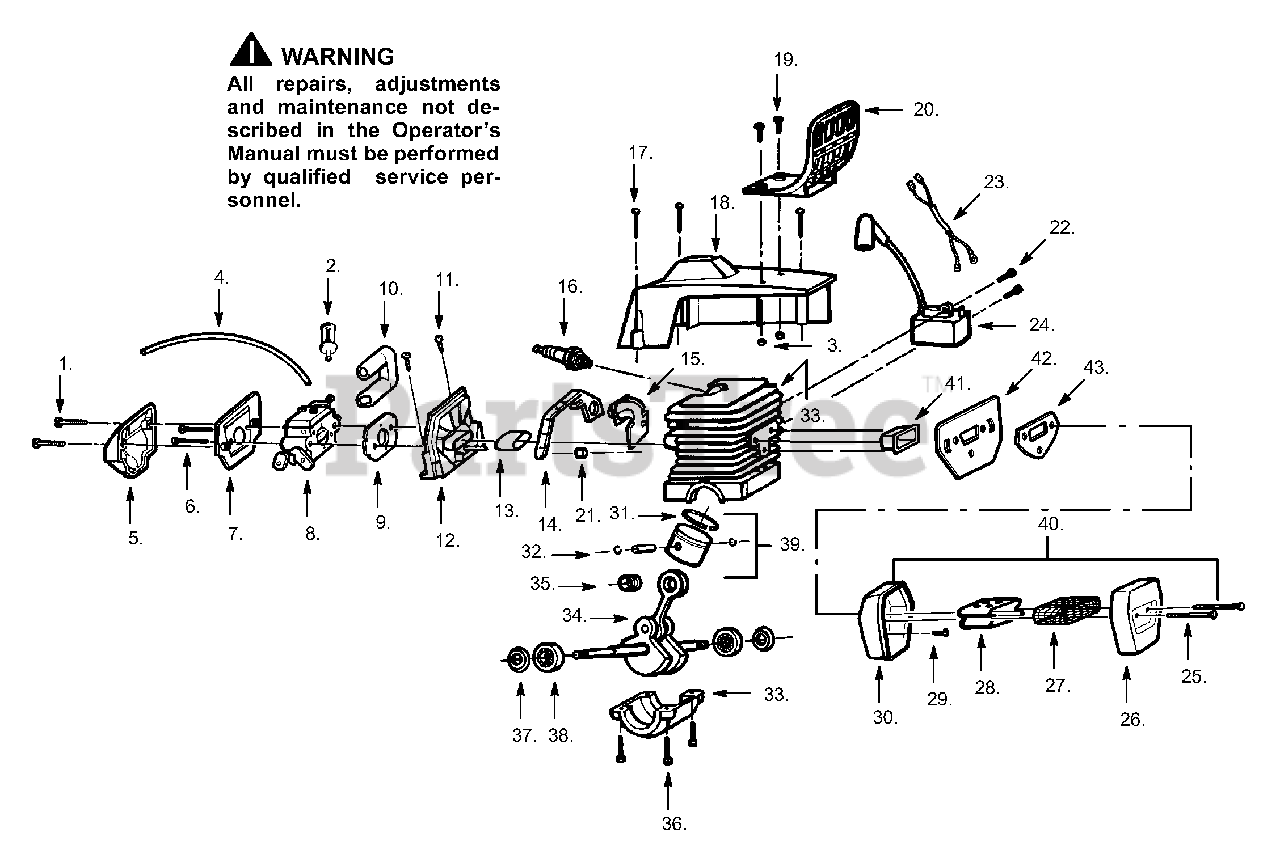

Internal Power Unit Parts Diagram

  • Title

1

Poulan 530015899

Screw

$6.49

$

In Stock, Qty 11

0

2

Poulan 530014199

Fuel Pick-up
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

3

Poulan 530001543

Nut

$

$

Not available

4

Poulan 530069247

Fuel Line

$7.99

$

In Stock, Qty 20+

0

5

Poulan 530036141

Air Filter (Top)
(Superseded to 545057701)

$5.99

$

In Stock, only 4 left!

0

6

Poulan 530015970

Screw

$

$

Not available

7

Poulan 530036124

Air Filter (Bottom)
(Superseded to 530059738)

$

$

Not available

8

Poulan 530035330

Carburetor Type 1,2,3 & 4
(Superseded to 545013503)

$51.99

$

Usually ships in 3-10 days

0

8

Poulan 530069629

Carburetor Type Type 5
(Superseded to 545013503)

Note: (Incl. Limiter Caps)

$51.99

$

Usually ships in 3-10 days

0

9

Poulan 530019172

Carb. Gasket

$6.49

$

In Stock, only 4 left!

0

10

Poulan 530037530

Carb. Grommet Type 1,2,3 & 4
(Superseded to 530037464)

$

$

Not available

10

Poulan 530037464

Carb. Grommet Type 5

$

$

Not available

11

Poulan 530015905

Screw
(Superseded to 530015814)

$6.49

$

In Stock, Qty 17

0

12

Poulan 530037465

Carb. Adaptor

$

$

Not available

13

Poulan 530029814

Intake Sleeve

$13.99

$

In Stock, Qty 11

0

14

Poulan 530019177

Turbo Clean Seal

$

$

Not available

15

Poulan 530029813

Turbo Air Cleaner Ass'y.

$

$

Not available

16

Poulan 952030150

Spark Plug (CJ-7Y)

$3.49

$

In Stock, Qty 20+

0

17

Poulan 530015903

Screw
(Superseded to 530016154)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 530036088

Cylinder Shield

$

$

Not available

19

Poulan 530015406

Screw

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530027181

Handguard

$

$

Not available

21

Poulan 530019171

Impulse Seal
(Superseded to 530053435)

$4.99

$

In Stock, Qty 9

0

22

Poulan 530015895

Screw

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530036129

Switch Wire Ass'y.
(Superseded to 530037467)

$30.99

$

Usually ships in 3-10 days

0

24

Poulan 530039143

Ignition Module
(Superseded to 575803501)

$22.99

$

Usually ships in 3-10 days

0

25

Poulan 530015938

Muffler Bolt 5mm
(Superseded to 530016170)

$

$

Not available

25

Poulan 530016170

Muffler Bolt 6mm

$

$

Not available

26

Poulan 530037249

Muffler Cover

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 530036103

Spark Screen

$

$

Not available

28

Poulan 530037813

Diffuser

$4.99

$

In Stock, only 1 left!

0

29

Poulan 530015902

Bolt

$4.99

$

In Stock, Qty 6

0

30

Poulan 530037248

Muffler Body

$

$

Not available

31

Poulan 530029982

Piston Ring 2500/2600
(Superseded to 537400001)

$17.99

$

In Stock, only 1 left!

0

31

Piston Ring 2200

Note: Refer to the Service Reference indicated for more information.

$

$

Not available

32

Poulan 530015697

Piston Pin Retainer

$6.49

$

In Stock, Qty 6

0

33

Poulan 530069414

Cylinder Kit 2200 40cc
(Superseded to 530069941)

Note: (Incl. 33 & 36); Refer to the Service Reference indicated for more information.

$

$

Not available

33

Poulan 530069417

Cylinder Kit 2200 36cc
(Superseded to 530069940)

Note: (Incl. 33 & 36); Refer to the Service Reference indicated for more information.

$

$

Not available

34

Poulan 530029794

C'shaft & Rod Ass'y.
(Superseded to 503920801)

$

$

Not available

35

Poulan 530032117

Piston Pin Bearing

$

$

Not available

36

Poulan 530015897

Screw

$6.49

$

In Stock, Qty 19

0

37

Poulan 530019170

C'shaft Seal

$6.49

$

In Stock, Qty 9

0

38

Poulan 530032118

C'shaft Bearing

$

$

Not available

39

Poulan 530069454

Piston Kit

Note: (Incl. 31,32,35 & Pin)

$47.30

$

Usually ships in 3-10 days

0

40

Poulan 530069416

Muffler Kit

Note: (Incl. 25,26,28,30)

$

$

Not available

41

Poulan 530037652

Heat Insulator

$

$

Not available

42

Poulan 530037640

Muffler Plate

$

$

Not available

43

Poulan 530019205

Muffler Gasket

$6.49

$

In Stock, only 3 left!

0

Poulan 530031135

Scrench
(Superseded to 530031163)

Note: Not Shown

$9.99

$

In Stock, Qty 12

0

Poulan 530083081

Operator Manual

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Poulan 530069316

Clutch Drum (Rim)

Note: Not Shown

$

$

Not available

Poulan 530031136

Worm Gear Puller

Note: Not Shown

$

$

Not available

Poulan 530031112

Clutch Assy Tool

Note: Not Shown

$20.99

$

In Stock, only 1 left!

0
