2500 C (26A-136-150) - Cub Cadet Pressure Washer Wheels Parts Diagram

Pressure Washer

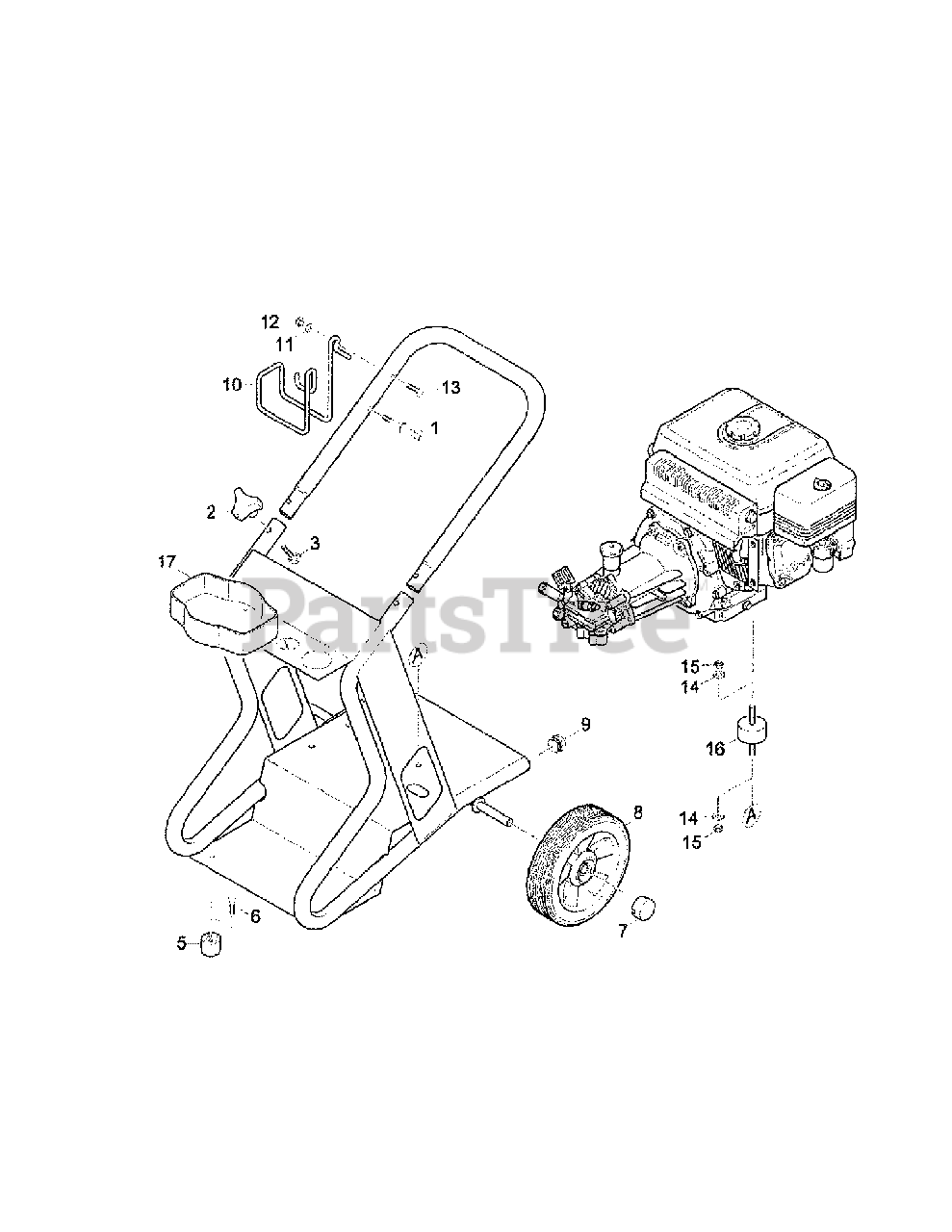

Wheels Parts Diagram

  • Title
1

Cub Cadet KR-9182514

Bolt

Note: NLA

$

$

Not available

2

Cub Cadet KR-9182353

Control Knob

Note: NLA

$

$

Not available

3

Cub Cadet KR-9196304

Screw

Note: NLA

$

$

Not available

5

Cub Cadet KR-9183405

Rubber Bumper

Note: NLA

$

$

Not available

6

Cub Cadet KR-9196308

Bolt

Note: NLA

$

$

Not available

7

Cub Cadet KR-9182506

Cap

Note: NLA

$

$

Currently unavailable

8

Cub Cadet KR-9189006

Wheel

Note: NLA

$

$

Not available

9

Cub Cadet KR-9183001

Plug

Note: NLA

$

$

Not available

10

Cub Cadet KR-9182515

Bracket

Note: NLA

$

$

Not available

11

Cub Cadet KR-9198003

Washer

Note: NLA

$

$

Not available

12

Cub Cadet KR-5310105

Nut

Note: NLA

$

$

Not available

13

Cub Cadet KR-9196306

Screw

Note: NLA

$

$

Not available

14

Cub Cadet KR-7312004

Washer

Note: NLA

$

$

Not available

15

Cub Cadet KR-9197002

Nut

Note: NLA

$

$

Not available

16

Cub Cadet KR-9183403

Spacer

Note: NLA

$

$

Not available

17

Cub Cadet KR-9134007

Tray, 1 gal

Note: NLA

$

$

Not available
