250 (UT-10681) - Homelite Chainsaw Carburetor & Air Filter Parts Diagram

Chainsaw

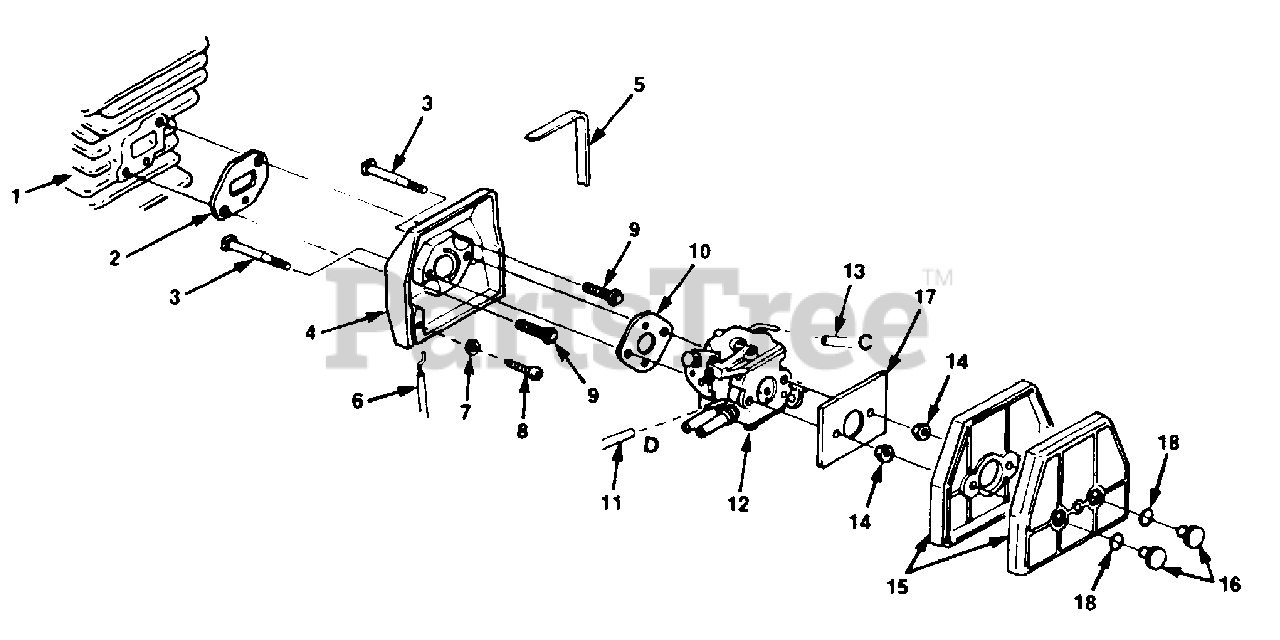

Carburetor & Air Filter Parts Diagram

  • Title

1

Homelite A02577B

CYLINDER

$

$

Currently unavailable

2

Homelite 01029

GASKET- Carburetor spacer
(Superseded to UP06622)

$

$

Not available

3

Homelite 00905A

SCREW- Carburetor spacer

$

$

Not available

4

Homelite A02583

SPACER- Carburetor

$

$

Currently unavailable

5

Homelite 01823

FOAM- Adhesive

$

$

Not available

6

Homelite 00997B

CABLE- Throttle

$

$

Currently unavailable

7

Homelite 84123

WASHER

$

$

Not available

8

Homelite 82513

SCREW- Thread forming

$2.49

$

In Stock, Qty 5

0

9

Homelite 82430

SCREW- Mach. hex hd.

$

$

Not available

10

Homelite 98339

GASKET- Carburetor
(Superseded to 900843001)

$

$

Not available

11

Homelite 9311219

TUBING- Rubber

$

$

Not available

12

Homelite A03032

CARBURETOR- Walbro (WT-185)

$

$

Currently unavailable

Homelite A02585

CARBURETOR- Zama (CZQ-H14)

$

$

Currently unavailable

13

Homelite 7031036

TUBING- Rubber
(Superseded to UP06561)

$

$

Not available

14

Homelite 81009

NUT- Hex (8/32)

$

$

Not available

15

Homelite A02582

AIR FILTER ASSEMBLY

$

$

Currently unavailable

16

Homelite 01178

NUT- Retainer

$4.49

$

Usually ships in 3-7 days

0

17

Homelite 02695

RETAINER- Air filter

$

$

Not available

18

Homelite 02718

O-RING

$

$

Not available
