250 RX - Husqvarna String Trimmer (SN: 19973100001 & Above) CYLINDER PISTON Parts Diagram

String Trimmer

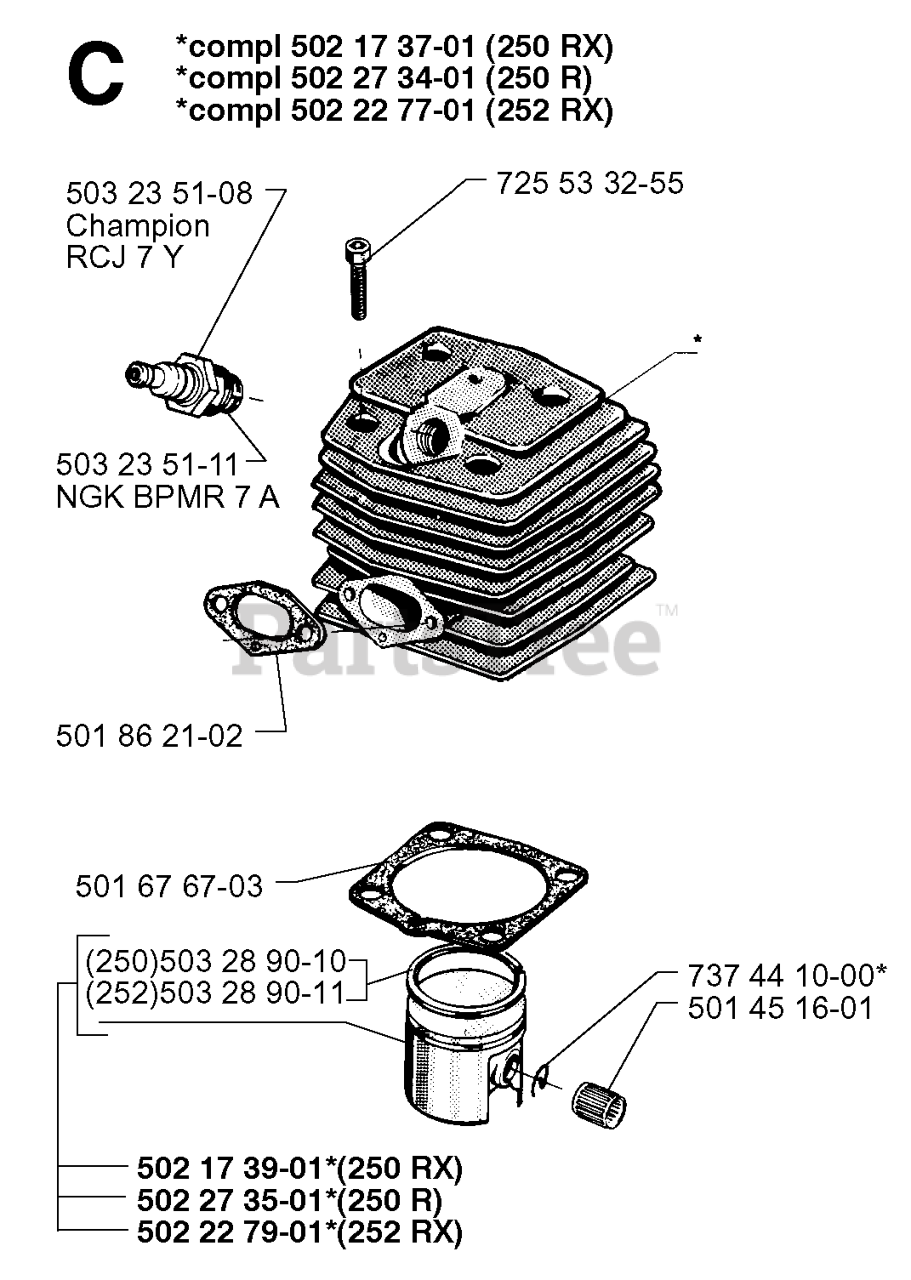

CYLINDER PISTON Parts Diagram

  • Title

502 27 35-01

Husqvarna 502273501

PISTON ASSY

Note: 250 R

$105.00

$

Usually ships in 3-10 days

0

501 45 16-01

Husqvarna 501451601

SUPPORT BUSHING

$24.99

$

In Stock, only 1 left!

0

501 67 67-03

Husqvarna 501676703

GASKET

$

$

Not available

737 44 10-00

Husqvarna 737441000

LOCKING RING

$6.49

$

In Stock, only 1 left!

0

502 27 34-01

Husqvarna 502273401

CYLINDER ASSY

Note: 250 R

$

$

Not available

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: CHAMPION RCJ 7 Y

$3.99

$

In Stock, Qty 20+

0

502 17 39-01

Husqvarna 502173901

PISTON

Note: 250 RX

$

$

Not available

502 22 79-01

Husqvarna 502227901

PISTON ASSY
(Superseded to 537072701)

Note: 252 RX

$100.39

$

Usually ships in 3-10 days

0

725 53 32-55

Husqvarna 725533255

SCREW MC6S 5X22

$

$

Not available

502 22 77-01

Husqvarna 502227701

CYLINDER ASSY
(Superseded to 502227702)

Note: 252 RX

$

$

Not available

503 28 90-11

Husqvarna 503289011

%PISTON RING
(Superseded to 544435001)

Note: 252

$31.99

$

In Stock, only 2 left!

0

503 23 51-11

Husqvarna 503235111

SPARK PLUG M14X1.25 NGK BPMR7A

Note: NGK BPMR 7 A

$3.99

$

In Stock, Qty 20+

0

501 86 21-02

Husqvarna 501862102

GASKET

$

$

Not available

502 17 37-01

Husqvarna 502173701

CYLINDER W/PISTON
(Superseded to 502273401)

Note: 250 RX

$

$

Not available

503 28 90-10

Husqvarna 503289010

PISTON RING

Note: 250

$26.99

$

In Stock, only 1 left!

0
