250 RX - Husqvarna String Trimmer (1989-08) Handle Assembly Parts Diagram

String Trimmer

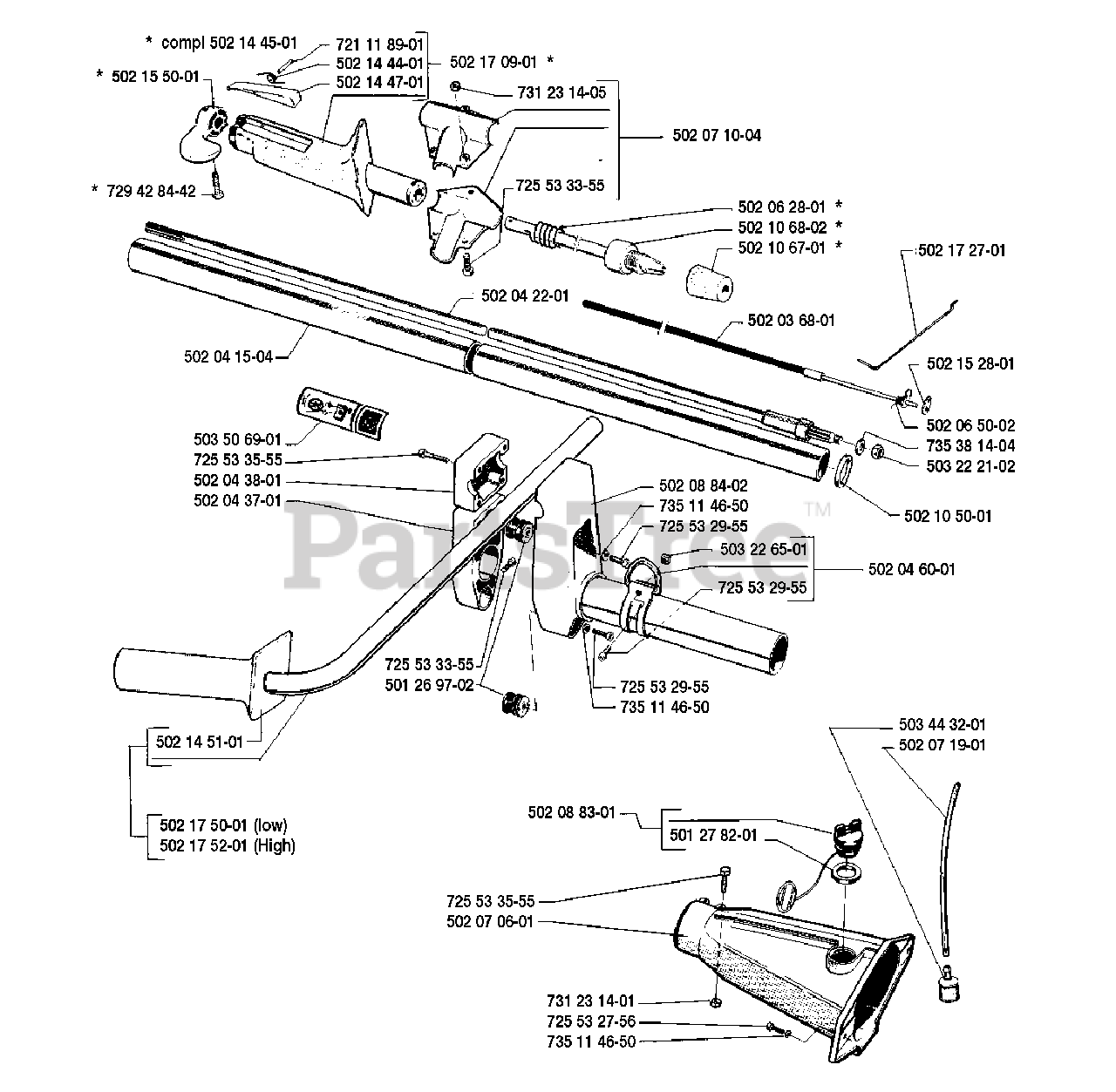

Handle Assembly Parts Diagram

  • Title
502144501

Husqvarna 502144501

HANDLE RIGHT
(Superseded to 502144504)

$122.97

$

Usually ships in 3-10 days

0

502155001

Husqvarna 502155001

SILENCER FRONT NLA

$

$

Not available

$

$

Currently unavailable

721118901

Husqvarna 721118901

PIN
(Superseded to 720121220)

$

$

Not available

502144401

$4.99

$

In Stock, only 1 left!

0

502144701

$

$

Not available

502170901

Husqvarna 502170901

HANDLE RIGHT
(Superseded to 502170904)

$

$

Not available

731231405

Husqvarna 731231405

NUT M6M M5

$3.49

$

In Stock, only 3 left!

0

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

502042201

Husqvarna 502042201

SHAFT
(Superseded to 502277501)

$

$

Not available

502041504

Husqvarna 502041504

TUBE
(Superseded to 502041505)

$

$

Not available

503506901

Husqvarna 503506901

DECAL
(Superseded to 503901301)

$

$

Not available

725533555

Husqvarna 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

502043801

$30.18

$

Usually ships in 3-10 days

0

502043701

Husqvarna 502043701

BRACKET
(Superseded to 502262101)

$

$

Not available

502145101

Husqvarna 502145101

HANDLE
(Superseded to 502145103)

$17.99

$

Usually ships in 3-10 days

0

502175001

Husqvarna 502175001

HANDLE LEFT CPL.
(Superseded to 502175005)

$56.99

$

Usually ships in 3-10 days

0

502175201

Husqvarna 502175201

HANDLE LEFT
(Superseded to 502175203)

$76.15

$

Usually ships in 3-10 days

0

502070601

Husqvarna 502070601

TANK UNIT
(Superseded to 502070604)

$

$

Not available

725533555

Husqvarna 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

501278201

$7.49

$

In Stock, only 1 left!

0

502088301

Husqvarna 502088301

TANK CAP
(Superseded to 503828006)

$14.99

$

Usually ships in 3-10 days

0

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

501269702

Husqvarna 501269702

ANTIVIBE ELEMENT

$17.99

$

Usually ships in 3-10 days

0

502088402

Husqvarna 502088402

SUPPORTING TUBE

$

$

Not available

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

503226501

Husqvarna 503226501

SQUARE NUT M5
(Superseded to 503226504)

$6.49

$

In Stock, Qty 5

0

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

502065002

$

$

Not available

$

$

Currently unavailable

503222102

Husqvarna 503222102

Lock Nut, M8

$3.49

$

Usually ships in 3-10 days

0

502105001

$

$

Not available

502046001

Husqvarna 502046001

MOUNTING LUG
(Superseded to 502267101)

$

$

Not available

502172701

$

$

Not available

502152801

Husqvarna 502152801

THROTTLE ROD & LEVER ARM 140R

$

$

Not available

502062801

$6.49

$

In Stock, only 1 left!

0

502106802

Husqvarna 502106802

SHAFT
(Superseded to 502106803)

$51.92

$

Usually ships in 3-10 days

0

502106701

$

$

Not available

502036801

Husqvarna 502036801

FLEXIBLE SHAFT

$

$

Not available

502071004

Husqvarna 502071004

HOLDER RIGHT
(Superseded to 502071005)

$

$

Not available

731231401

$2.49

$

Usually ships in 3-10 days

0

725532756

Husqvarna 725532756

SCREW MC6S 5X12
(Superseded to 725532755)

$6.49

$

In Stock, only 3 left!

0

502071901

$

$

Not available
