250 R - Husqvarna String Trimmer (SN: 19944000001 - 19954000000) CARBURETOR & AIR FILTER Parts Diagram

String Trimmer

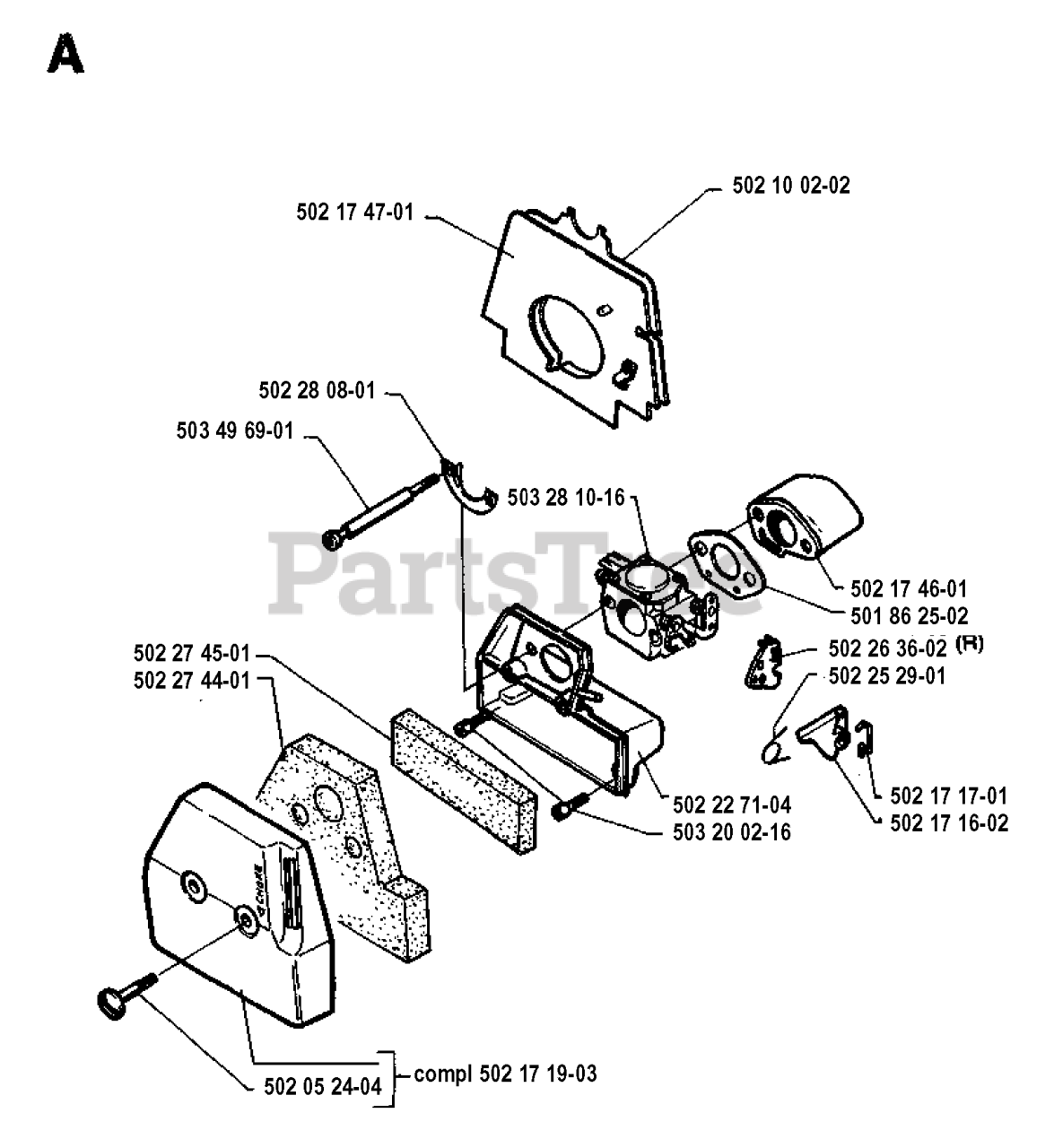

CARBURETOR & AIR FILTER Parts Diagram

  • Title
502 27 45-01

Husqvarna 502274501

PREFILTER
(Superseded to 502274502)

$

$

Not available

502 05 24-04

$

$

Not available

503 20 02-16

$4.99

$

In Stock, Qty 20+

0

502 10 02-02

$

$

Not available

502 28 08-01

Husqvarna 502280801

CHOKE FLAP

$3.49

$

Usually ships in 3-10 days

0

502 17 19-03

Husqvarna 502171903

AIR FILTER COVER

$

$

Not available

502 27 44-01

Husqvarna 502274401

AIR FILTER
(Superseded to 502225901)

$

$

Not available

503 49 69-01

$5.99

$

In Stock, Qty 13

0

502 17 16-02

Husqvarna 502171602

CHOKE CONTROL

$

$

Not available

502 22 71-04

Husqvarna 502227104

FILTER HOLDER

$

$

Not available

502 17 17-01

$

$

Not available

502 17 47-01

$

$

Not available

502 25 29-01

$

$

Not available

502 17 46-01

Husqvarna 502174601

Carb Spacer

$

$

Not available

503 28 10-16

Husqvarna 503281016

CARBURETOR

$

$

Not available

502 26 36-02

Husqvarna 502263602

Lever

Note: R

$

$

Not available

501 86 25-02

$

$

Not available
