250 R - Husqvarna String Trimmer (2001-05) Piston/Cylinder Parts Diagram

String Trimmer

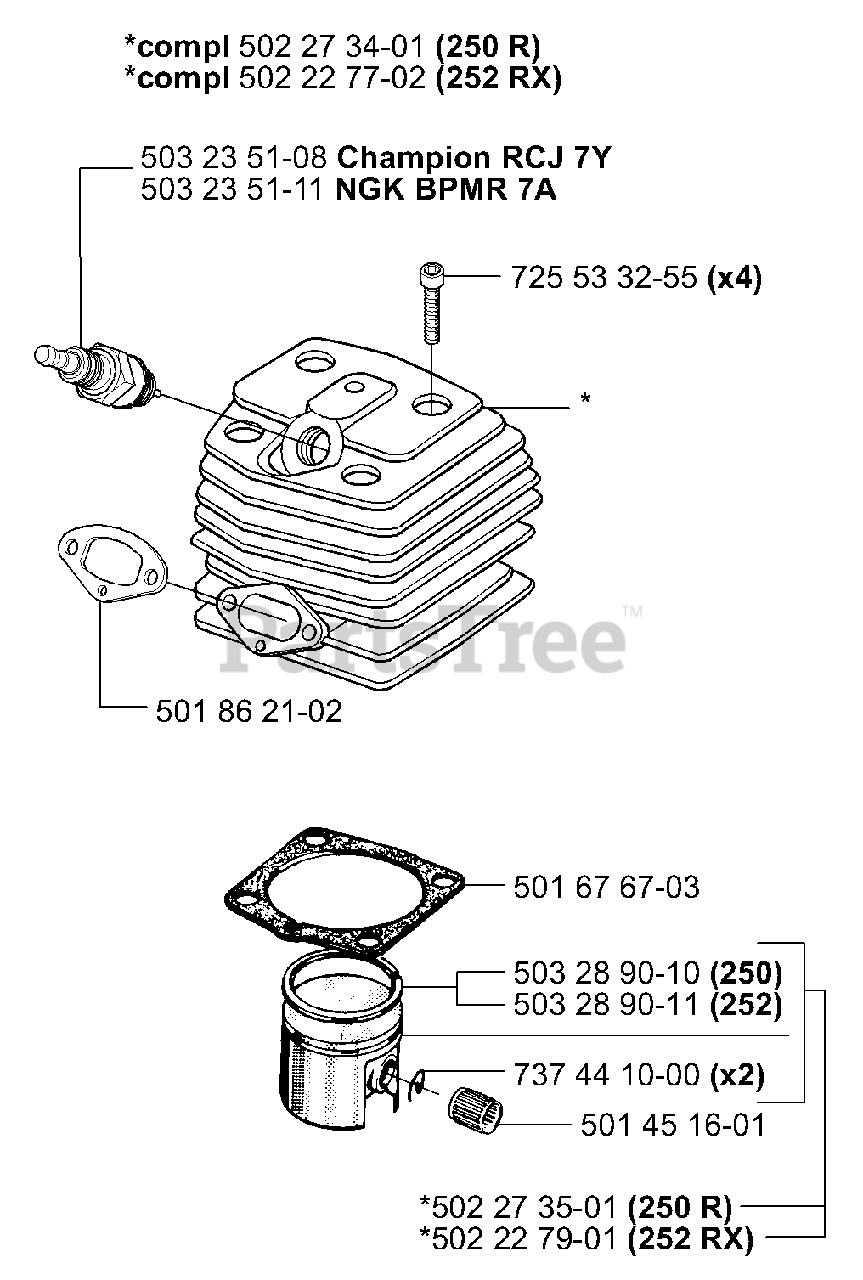

Piston/Cylinder Parts Diagram

  • Title

502273401

Husqvarna 502273401

Cylinder Assy

Note: (250 R); compl

$

$

Not available

502227702

Husqvarna 502227702

(252 RX); compl

$

$

Not available

503235108

Husqvarna 503235108

Spark Plug Rcj7y.
(Superseded to 503235111)

Note: Champion RCJ7Y

$3.99

$

In Stock, Qty 20+

0

503235111

Husqvarna 503235111

Bpmr7a Ngk Spark Plug

Note: NGK BPMR 7A

$3.99

$

In Stock, Qty 20+

0

725533255

Husqvarna 725533255

Screw Mc6s 5x22

$

$

Not available

501862102

Husqvarna 501862102

Gasket

$

$

Not available

501676703

Husqvarna 501676703

Gasket

$

$

Not available

503289010

Husqvarna 503289010

Piston Ring

Note: (250)

$26.99

$

In Stock, only 1 left!

0

503289011

Husqvarna 503289011

Piston Ring
(Superseded to 544435001)

Note: (252)

$31.99

$

In Stock, only 2 left!

0

737441000

Husqvarna 737441000

Locking Ring

$6.49

$

In Stock, only 1 left!

0

501451601

Husqvarna 501451601

Needle Bearing

$24.99

$

In Stock, only 1 left!

0

502273501

Husqvarna 502273501

Piston Assy

Note: (250 R)

$105.00

$

Usually ships in 3-10 days

0

502227901

Husqvarna 502227901

Piston Assy
(Superseded to 537072701)

Note: (252 RX)

$100.39

$

Usually ships in 3-10 days

0
