250 R - Husqvarna String Trimmer (1999-04) Clutch Assembly Parts Diagram

String Trimmer

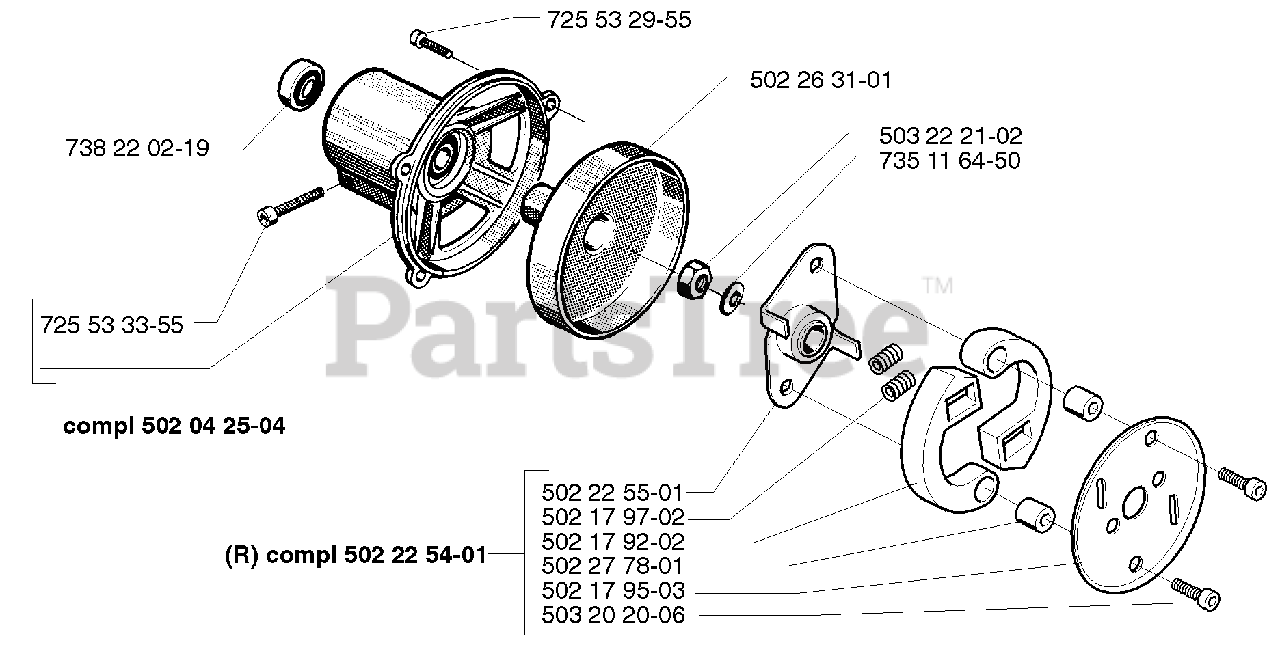

Clutch Assembly Parts Diagram

  • Title
503222102

Husqvarna 503222102

Lock Nut, M8

$3.49

$

Usually ships in 3-10 days

0

735116450

Husqvarna 735116450

SPRING WASHER 8.4X15

$2.49

$

In Stock, only 1 left!

0

502263101

Husqvarna 502263101

CLUTCH DRUM

$

$

Not available

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

738220219

Husqvarna 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 17

0

502042504

Husqvarna 502042504

CLUTCH COVER COMPL.
(Superseded to 537155101)

$

$

Not available

502225401

Husqvarna 502225401

CLUTCH
(Superseded to 537172101)

$

$

Not available

502225501

Husqvarna 502225501

YOKE
(Superseded to 537171301)

$

$

Not available

502179702

Husqvarna 502179702

CLUTCH SPRING
(Superseded to 537048301)

$8.99

$

Usually ships in 3-10 days

0

502179202

Husqvarna 502179202

CLUTCH SHOE
(Superseded to 537048201)

$

$

Not available

502277801

Husqvarna 502277801

BRONZE BUSHING
(Superseded to 537063101)

$

$

Not available

502179503

$10.37

$

Usually ships in 3-10 days

0

503202006

$

$

Not available
