250 R - Husqvarna String Trimmer (1994-10) Clutch Assembly Parts Diagram

String Trimmer

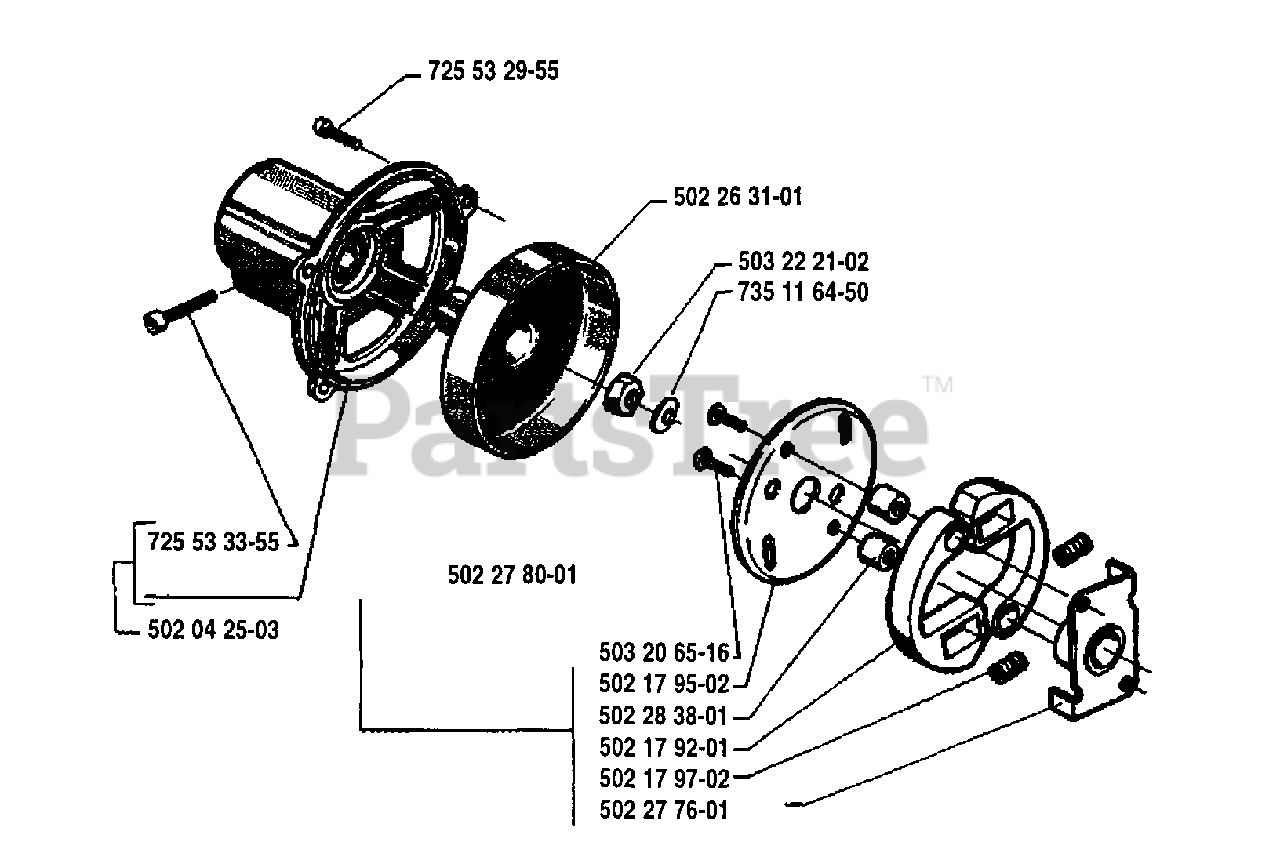

Clutch Assembly Parts Diagram

  • Title
725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

502263101

Husqvarna 502263101

CLUTCH DRUM

$

$

Not available

503222102

Husqvarna 503222102

Lock Nut, M8

$3.49

$

Usually ships in 3-10 days

0

735116450

Husqvarna 735116450

SPRING WASHER 8.4X15

$2.49

$

In Stock, only 1 left!

0

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

502278001

Husqvarna 502278001

CLUTCH ASSEMBLY
(Superseded to 537056701)

$

$

Not available

502042503

Husqvarna 502042503

CLUTCH COVER

$

$

Not available

502277601

Husqvarna 502277601

CLUTCH HUB
(Superseded to 537070901)

$33.45

$

Usually ships in 3-10 days

0

502179702

Husqvarna 502179702

CLUTCH SPRING
(Superseded to 537048301)

$8.99

$

Usually ships in 3-10 days

0

502179201

Husqvarna 502179201

CLUTCH SHOE
(Superseded to 537048201)

$

$

Not available

502179502

Husqvarna 502179502

PLATE
(Superseded to 537062801)

$

$

Not available

502283801

Husqvarna 502283801

BUSHING
(Superseded to 537063101)

$

$

Not available

503206516

Husqvarna 503206516

SCREW
(Superseded to 503202006)

$

$

Not available
