250 PS - Husqvarna Pole Saw (SN: 20023500001 & Above) HYDRAULIC PUMP - MOTOR 2 Parts Diagram

Pole Saw

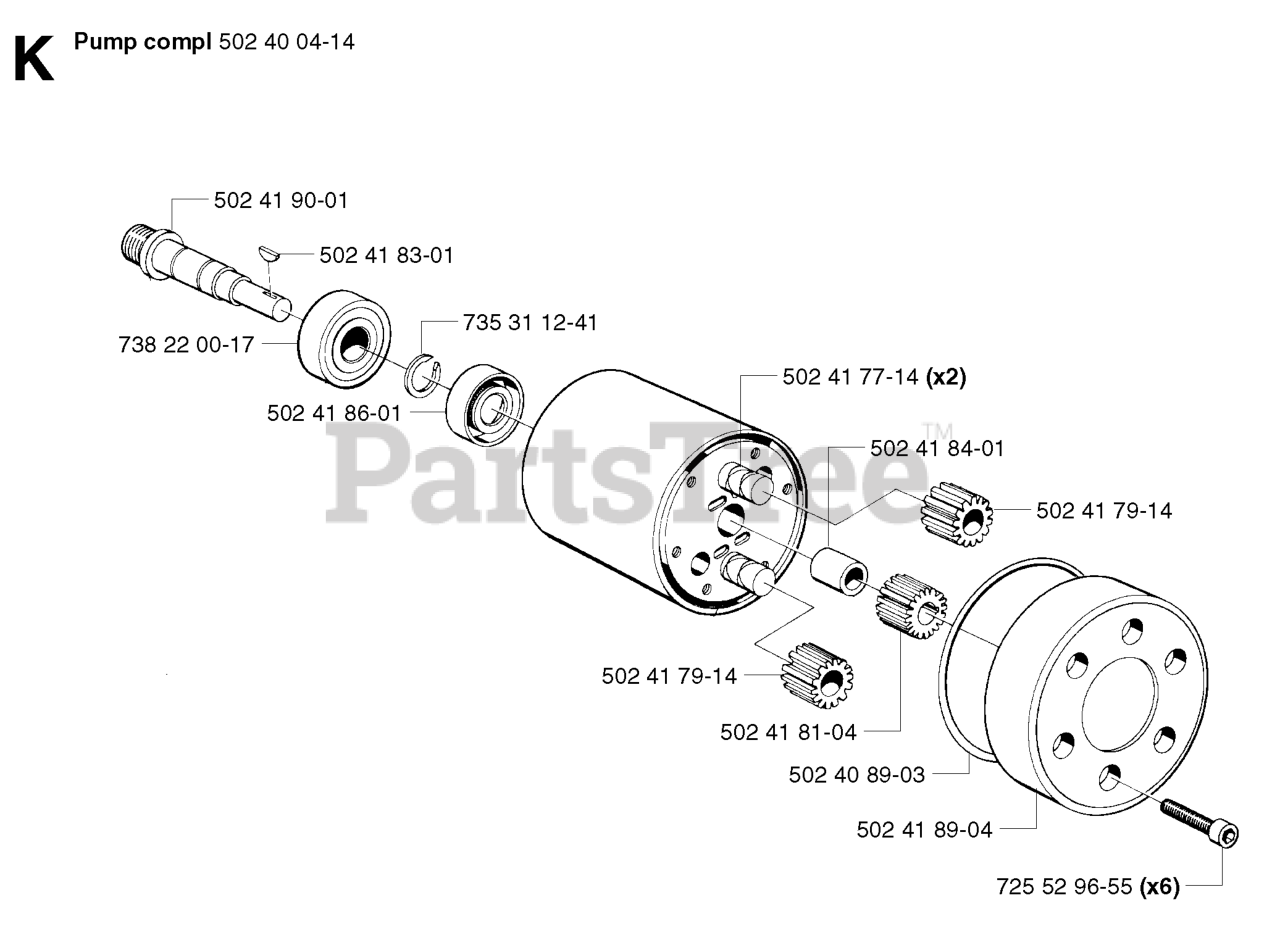

HYDRAULIC PUMP - MOTOR 2 Parts Diagram

  • Title
502 41 86-01

Husqvarna 502418601

SEALING RING

$

$

Not available

502 41 83-01

Husqvarna 502418301

WOODRUFF KEY

$

$

Not available

735 31 12-41

Husqvarna 735311241

LOCKING RING SW10

$

$

Not available

502 40 04-14

$

$

Not available

738 22 00-17

Husqvarna 738220017

BALL BEARING 6200 ZZ

$

$

Not available

502 41 84-01

Husqvarna 502418401

SLIDE BEARING

$

$

Not available

502 41 79-14

$

$

Not available

502 41 90-01

Husqvarna 502419001

PUMP SHAFT

$

$

Not available

502 40 89-03

$

$

Not available

725 52 96-55

Husqvarna 725529655

SCREW MC6S 4 X 22

$

$

Not available

502 41 77-14

$

$

Not available

502 41 81-04

Husqvarna 502418104

GEAR WHEEL Z17

$

$

Not available

502 41 89-04

Husqvarna 502418904

PRESSURE CHAMBER

$

$

Not available
