250 PS - Husqvarna Pole Saw (SN: 20023500001 & Above) CARBURETOR & AIR FILTER Parts Diagram

Pole Saw

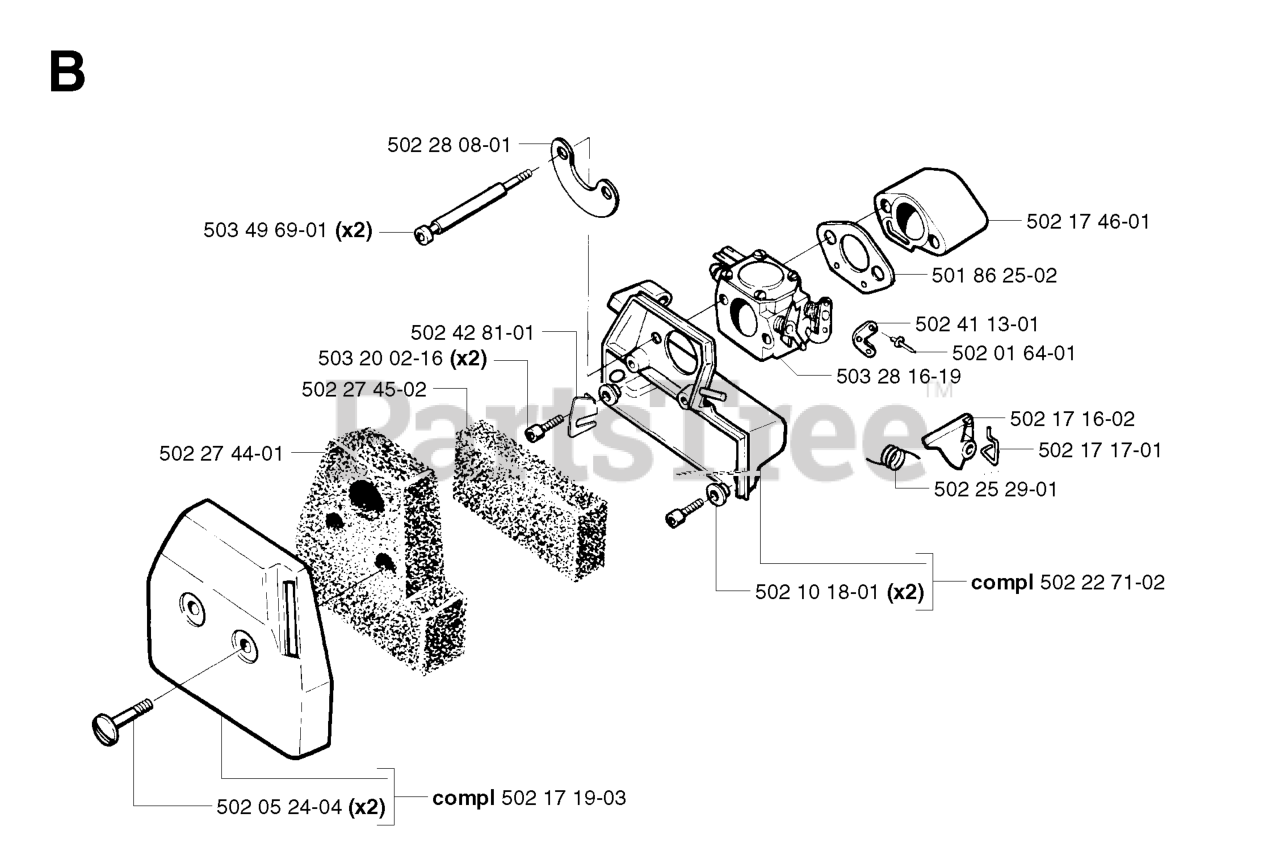

CARBURETOR & AIR FILTER Parts Diagram

  • Title
501 86 25-02

$

$

Not available

502 28 08-01

Husqvarna 502280801

CHOKE FLAP

$3.49

$

Usually ships in 3-10 days

0

502 27 44-01

Husqvarna 502274401

AIR FILTER
(Superseded to 502225901)

$

$

Not available

503 49 69-01

$5.99

$

In Stock, Qty 13

0

503 20 02-16

$4.99

$

In Stock, Qty 20+

0

502 25 29-01

$

$

Not available

502 17 19-03

Husqvarna 502171903

AIR FILTER COVER

$

$

Not available

502 42 81-01

$

$

Not available

503 28 16-19

Husqvarna 503281619

CARBURETOR HDA 142 WALBRO
(Superseded to 503281016)

$

$

Not available

502 17 16-02

Husqvarna 502171602

CHOKE CONTROL

$

$

Not available

502 17 17-01

$

$

Not available

502 10 18-01

$

$

Not available

502 41 13-01

$

$

Not available

502 17 46-01

Husqvarna 502174601

Carb Spacer

$

$

Not available

502 01 64-01

$

$

Not available

502 05 24-04

$

$

Not available

502 27 45-02

$

$

Not available

502 22 71-02

Husqvarna 502227102

HOLDER
(Superseded to 502227104)

$

$

Not available
