250 PS - Husqvarna Pole Saw (SN: 19940600001 - 19960500000) HYDRAULIC PUMP - MOTOR Parts Diagram

Pole Saw

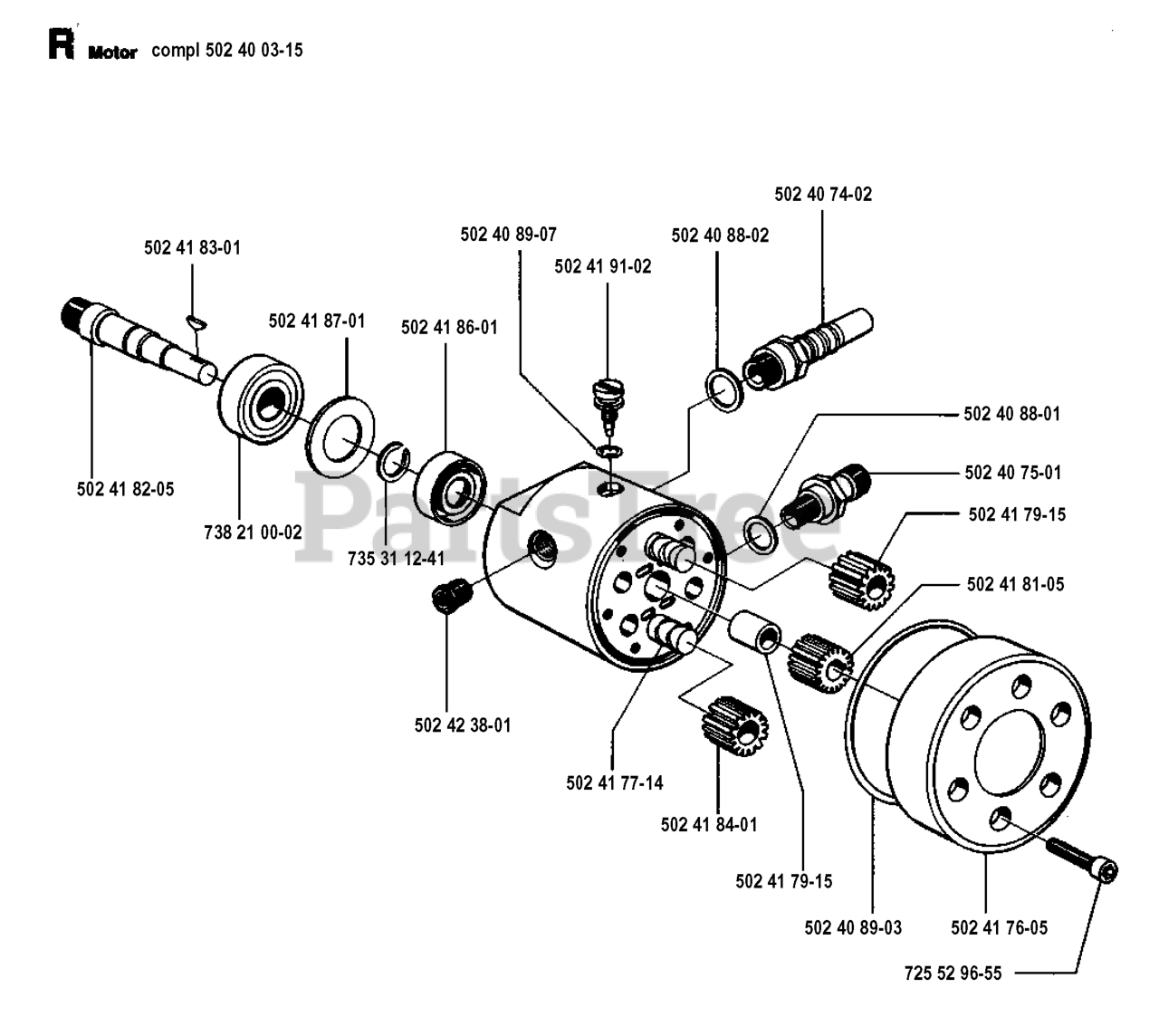

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

502 40 89-07

Husqvarna 502408907

0-RING

$

$

Not available

725 52 96-55

Husqvarna 725529655

SCREW MC6S 4 X 22

$

$

Not available

502 41 79-15

Husqvarna 502417915

GEAR

$

$

Not available

502 40 75-01

Husqvarna 502407501

NIPPLE-COMPRESSION SIDE

$

$

Not available

502 40 88-02

Husqvarna 502408802

WASHER-RETURN SIDE

$

$

Not available

735 31 12-41

Husqvarna 735311241

LOCKING RING SW10

$

$

Not available

502 40 74-02

Husqvarna 502407402

NIPPLE-RETURN SIDE

$

$

Not available

502 41 86-01

Husqvarna 502418601

SEALING RING

$

$

Not available

502 41 87-01

Husqvarna 502418701

WASHER

$

$

Not available

502 41 81-05

Husqvarna 502418105

GEAR WHEEL Z17

$

$

Not available

502 42 38-01

Husqvarna 502423801

OVERFLOW VALVE
(Superseded to 502423802)

$

$

Not available

502 40 03-15

Husqvarna 502400315

HYDRAULIC MOTOR

$

$

Not available

738 21 00-02

Husqvarna 738210002

BALL BEARING 6000-2Z

$34.99

$

In Stock, only 1 left!

0

502 41 82-05

Husqvarna 502418205

ENGINE SHAFT

$

$

Not available

502 41 83-01

Husqvarna 502418301

WOODRUFF KEY

$

$

Not available

502 41 76-05

Husqvarna 502417605

PRESSURE CHAMBER

$

$

Not available

502 40 89-03

Husqvarna 502408903

O-RING

$

$

Not available

502 41 77-14

Husqvarna 502417714

PUMP

$

$

Not available

502 40 88-01

Husqvarna 502408801

WASHER-COMPRESSION SIDE

$

$

Not available

502 41 84-01

Husqvarna 502418401

SLIDE BEARING

$

$

Not available

502 41 91-02

Husqvarna 502419102

ADJUSTMENT SCREW-CHAIN LUBE

$

$

Not available
