250 PS - Husqvarna Pole Saw (SN: 19940600001 - 19960500000) CARBURETOR DETAILS Parts Diagram

Pole Saw

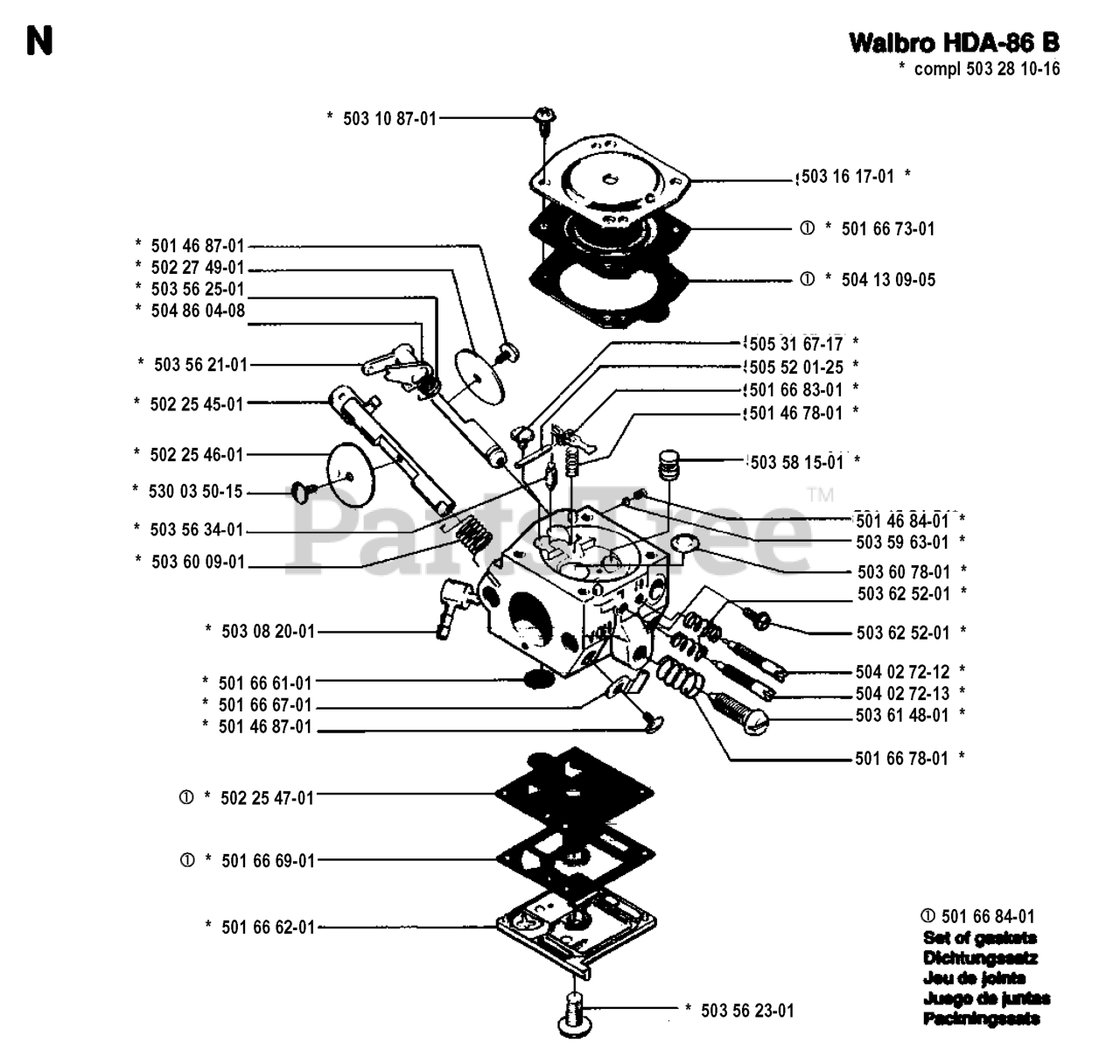

CARBURETOR DETAILS Parts Diagram

  • Title
502 25 45-01

Husqvarna 502254501

Throttle Shaft

$

$

Not available

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

503 56 25-01

Husqvarna 503562501

SPRING
(Superseded to 537158101)

$11.99

$

Usually ships in 3-10 days

0

503 16 17-01

$

$

Not available

501 46 84-01

$7.99

$

In Stock, only 1 left!

0

503 28 10-16

Husqvarna 503281016

CARBURETOR

$

$

Not available

503 56 23-01

$

$

Not available

502 27 49-01

Husqvarna 502274901

CHOKE FLAP
(Superseded to 502254601)

$

$

Not available

503 62 52-01

$

$

Not available

503 60 09-01

$

$

Not available

501 66 83-01

$17.99

$

Usually ships in 3-10 days

0

504 86 04-08

Husqvarna 504860408

LEVER CHOKE FAST IDLE
(Superseded to 537158201)

$4.99

$

Usually ships in 3-10 days

0

530 03 50-15

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

504 13 09-05

Husqvarna 504130905

GASKET

Note: 501 66 84-01 SET OF GASKETS

$3.49

$

In Stock, Qty 5

0

502 25 47-01

Husqvarna 502254701

PUMP DIAPHRAGM

Note: 501 66 84-01 SET OF GASKETS

$22.99

$

In Stock, only 2 left!

0

503 59 63-01

$

$

Not available

503 08 20-01

$5.99

$

In Stock, only 2 left!

0

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

503 61 48-01

Husqvarna 503614801

IDLE SPEED SCREW

$

$

Not available

501 66 69-01

Husqvarna 501666901

GASKET, PUMP SIDE

Note: 501 66 84-01 SET OF GASKETS

$17.99

$

In Stock, Qty 6

0

504 02 72-13

Husqvarna 504027213

IDLING SCREW

$6.99

$

Usually ships in 3-10 days

0

501 66 62-01

Husqvarna 501666201

COVER, PUMP SIDE

$6.99

$

Usually ships in 3-10 days

0

503 56 21-01

Husqvarna 503562101

Choke Shaft

$

$

Not available

503 60 78-01

Husqvarna 503607801

PLUG
(Superseded to 503574201)

$7.99

$

In Stock, only 4 left!

0

502 25 46-01

Husqvarna 502254601

THROTTLE FLAP

$

$

Not available

504 02 72-12

Husqvarna 504027212

SCREW FULL SPEED

$

$

Not available

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

505 31 67-17

$7.99

$

In Stock, Qty 6

0

501 66 73-01

Husqvarna 501667301

METERING DIAPHRAGM

Note: 501 66 84-01 SET OF GASKETS

$74.99

$

In Stock, only 1 left!

0

501 66 78-01

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

501 66 67-01

Husqvarna 501666701

THROTTLE STOP

$

$

Not available

501 46 87-01

$7.99

$

In Stock, only 1 left!

0

503 58 15-01

$5.99

$

Usually ships in 3-10 days

0

501 46 78-01

Husqvarna 501467801

SPRING
(Superseded to 501795901)

$11.99

$

Usually ships in 3-10 days

0
